RBC 20 Advanced Lithium Battery Charger

5. With dry hands, plug tool into the appropriate pow-

er source.

6. This charger is provided with a convenient key

hole hanging feature if wall mounting is desired.

Screws should be installed at a center distance of 4”

(102 mm).

Charging Procedure/Operating

Instructions

WARNING

Always wear eye protection to protect your eyes

against dirt and other foreign objects.

Follow operating instructions to reduce the risk of

injury from electrical shock.

NOTE! New batteries reach their full capacity after ap-

proximately 5 charging and discharging cycles.

NOTE! It is not necessary to completely discharge a

battery pack before recharging.

1. Set up charger according to Charger Inspection and

Set-Up section.

2. While charger is in the standby “ready to charge”

mode, the yellow LED will blink continuously.

3. With dry hands insert the battery pack onto the

charger. The battery pack will be charged automati-

cally.

•TheyellowLEDmayilluminatesolidforupto2sec-

onds while battery condition is checked.

•Ifthebatteryfailstomakepropercontactorthebat-

tery or charger are damaged, a red LED will blink with

the light ON 95% of the time and OFF 5% of the time

(Fast Blink). Check battery contact by removing and

reinserting battery into charger.

•Whilethebatteryischarging,thegreenLEDwillblink

with the light on 50% of the time and o 50% of the

time (Slow Blink).

•The battery packwillbecomeslightlywarm tothe

touch during charging. This is normal and does not

indicate a problem.

•Whenthebatterychargelevelreaches85%charged,

the green LED will change the blinking pattern to

95% on and 5% o (Fast Blink). The battery may be

3. Check to see that all warning labels and decals on

the charger and batteries are intact and readable.

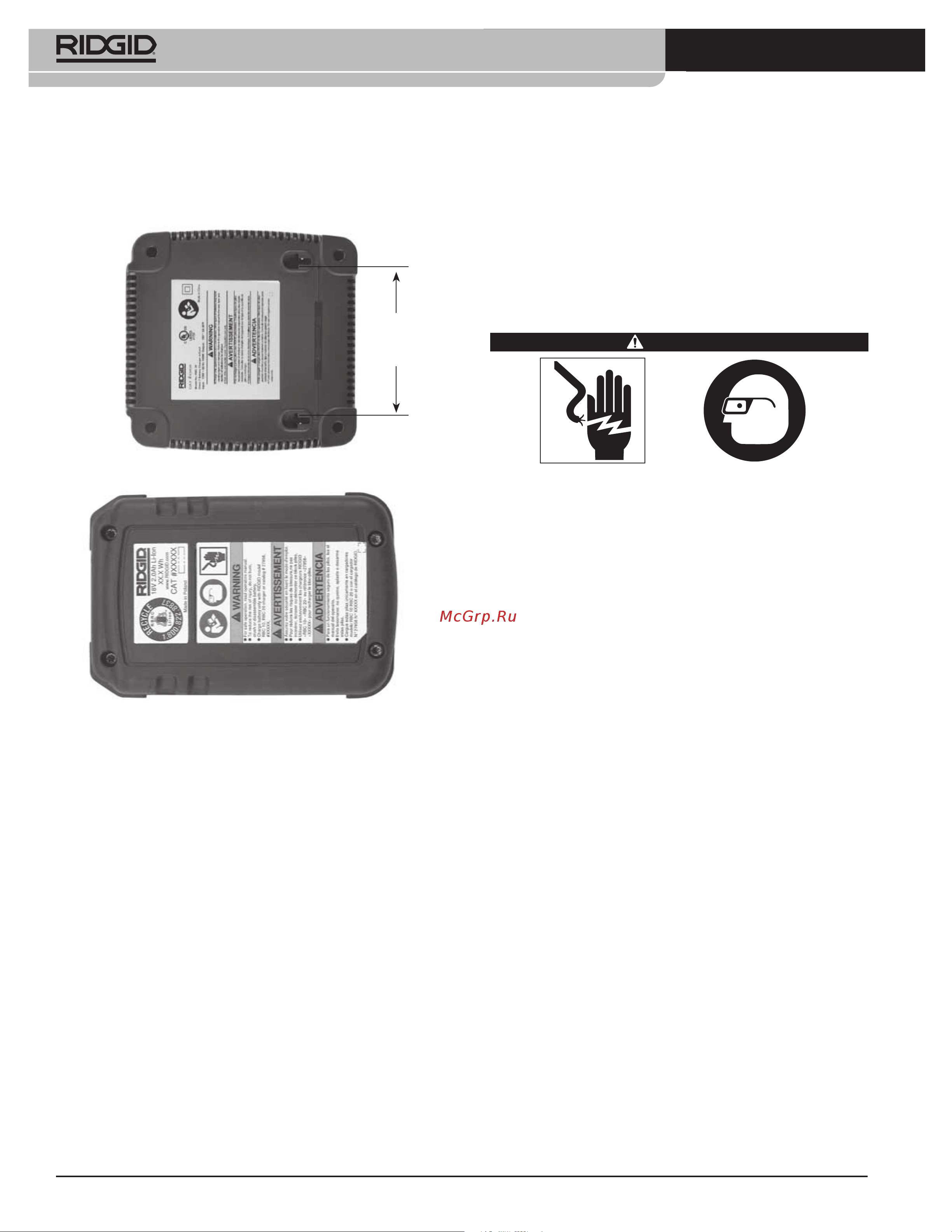

Figure 2 shows the warning label on the bottom of

the charger. Figure 3 shows the labels on the bottom

of a battery.

Figure 2 – Warning Label Location On Charger

4” (102 mm)

Key Hole

Hanger Slots

Figure 3 – Warning Label Location On Battery

4. Select an appropriate location for the charger before

use. Check work area for:

 •Flammableliquids,vaporsordustthatmayignite.If

present, do not work in area until sources have been

identied and corrected. Battery charger is not explo-

sion proof and can cause sparks.

 •Clear,level,stabledryplaceforcharger.Donotuse

the machine in wet or damp areas.

 •Proper operating temperature range. The charger

and battery must both be between 41°F (5°C) and

104°F (40°C) for charging to begin. If the tempera-

ture of either is outside this range at any point dur-

ing charging, the operation will be suspended until

brought back into the correct temperature range.

 •Appropriatepowersource.Checktoseethattheplug

ts correctly into the desired outlet.

 •Sucientventilationarea.Thechargerneedsaclear

ance of at least 4” (10 cm) on all sides to maintain the

proper operating temperature.
