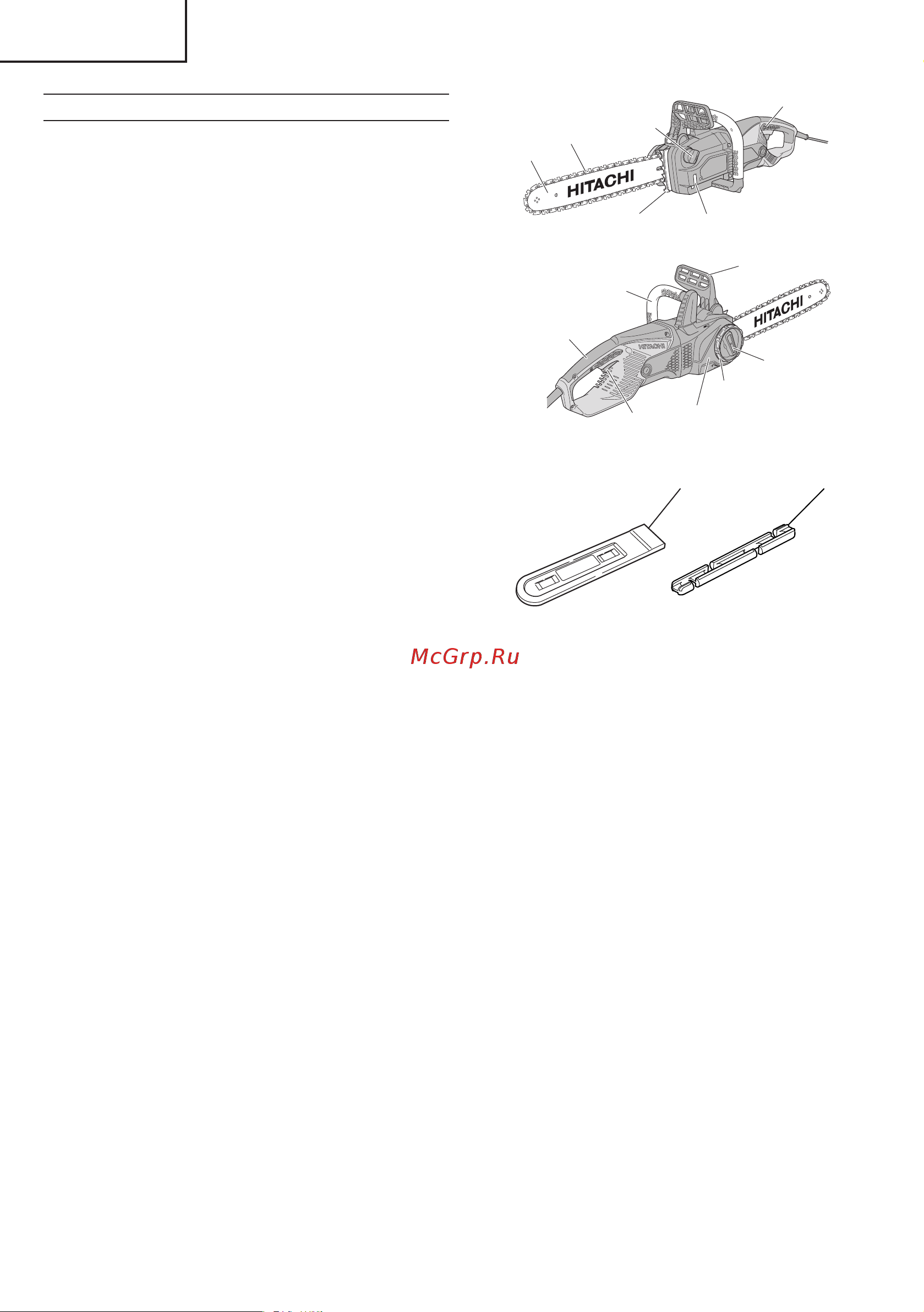

WHAT IS WHAT?

1. Lock-oﬀ button: Button that prevents the accidental

operation of the trigger.

2. Oil tank cap: Cap for closing the oil tank.

3. Saw chain: Chain, serving as a cutting tool.

4. Guide bar: The part that supports and guides the saw

chain.

5. Spiked bumper: Device for acting as a pivot when in

contact with a tree or log.

6. Oil sight glass: Window to check chain oil amount.

7. Chain brake: Device for stopping or locking the saw

chain.

8. Front handle: Support handle located at or towards the

front of the main body.

9. Rear handle: Support handle located on the top of the

main body.

10. Switch: Device activated by the ﬁ nger.

11. Side cover: Protective cover to the guide bar saw chain,

clutch and sprocket when the chain saw is in use.

12. Tension dial: Device for adjusting tension of saw chain

13. Knob: Knob for securing tension dial and side cover

14. Chain case: Case for covering the guide bar and saw

chain when the unit is not being used.

15. Plug clip: A tool to prevent the power plug from slipping

free of an extension cord's socket.
