This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.

Translated from Italian

N2 CLEANING THE MEASUREMENT CHAMBERS

FOREWORD

K900 measurement chamber can be cleaned without removing the instru-

ment from the line or from the dispensing nozzle on which it is fitted.

ATTENTION

Always make sure that the liquid has drained from the meter before clean-

ing.

CLEANING

To clean the chamber proceed as follows:

Loosen the four cover retention screws

Remove the cover and the gasket

Remove the oval gears

Clean where necessary. For this operation, use a brush or pointed object such

as a small screwdriver.

Be careful not to damage the body or the gears

To reassemble the instrument, perform the operations in the opposite

sequence.

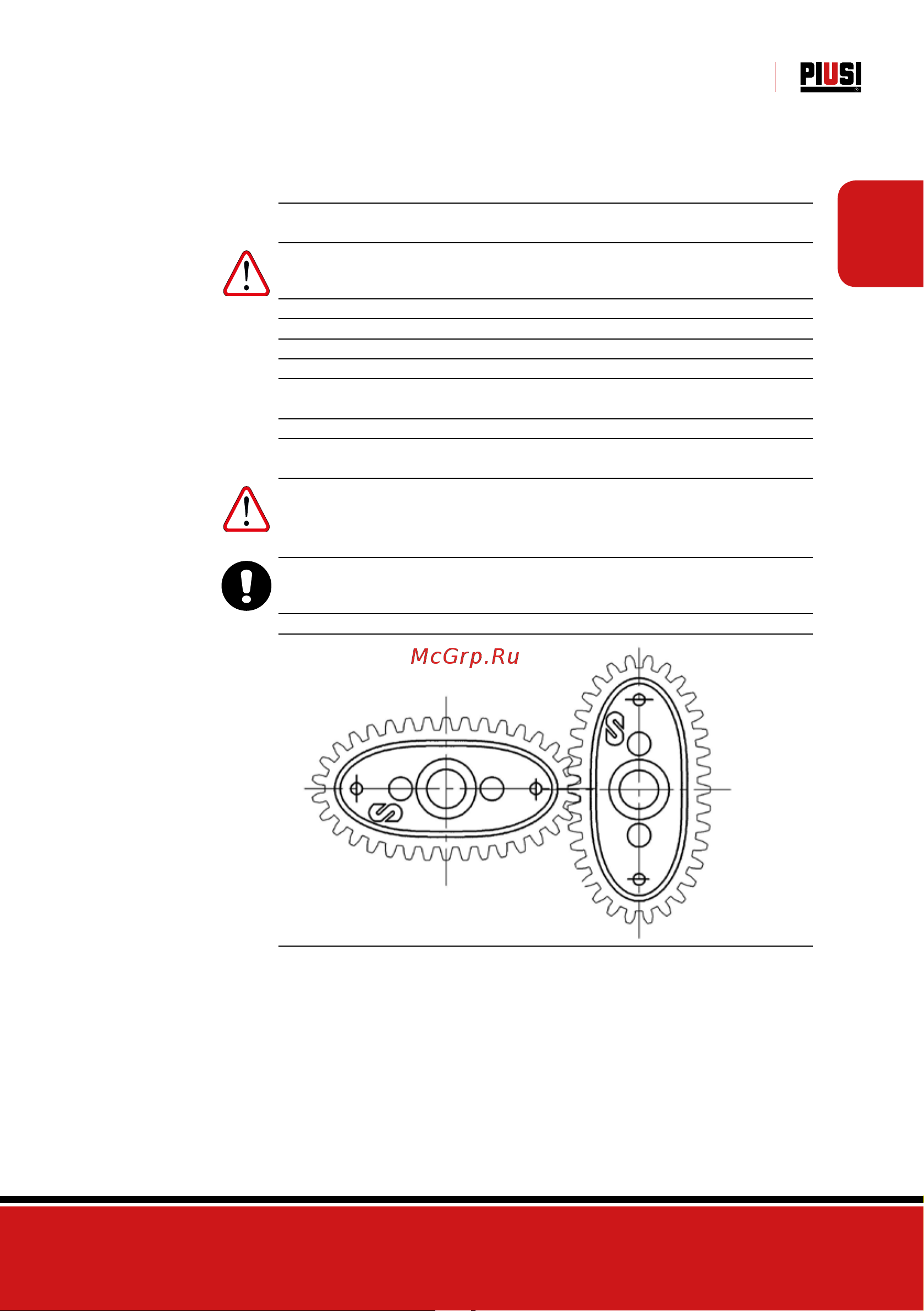

ATTENTION

Only of the two gears, modularly coupled as shown in the diagram above,

features magnets. The gear with magnets must be positioned as indicated

in the picture. The second gear (without magnets) must be installed with

its major axis at right angles to the ﬁrst gear

WARNING

Fit the second gear (without magnets) with axis greater than 90° com-

pared to the ﬁrst gear, and with the holes visible from the cover side

Make sure the gears are turning freely before closing the cover.
