INSTRUCTION MANUAL ECOSOFT

MEDIA SYSTEMS

5. Place the brine tank beside the FRP tanks. Install exible tube in both control valves’

brine inlets, join them with a tee connector and run a third piece of exible tube from the tee

to the brine tank. Remove tank lid and brine well cap, pull the end of the tube inside and

connect it to the brine valve, then re-assemble in reverse order. Fill the brine tank with salt.

6. Mount the pipe thread elbow adapters to the control valve’s In and Out ports and tighten

the coupling nuts. Do not put any mechanical load on ttings or use them to support pipes.

Connect both lters to water supply via In ports without turning on the water supply. Connect

the Out ports to MAV’s A and B ports. Then connect port C of the MAV to the downstream

pipework. Do not confuse In and Out ports. They are embossed with direction arrows.

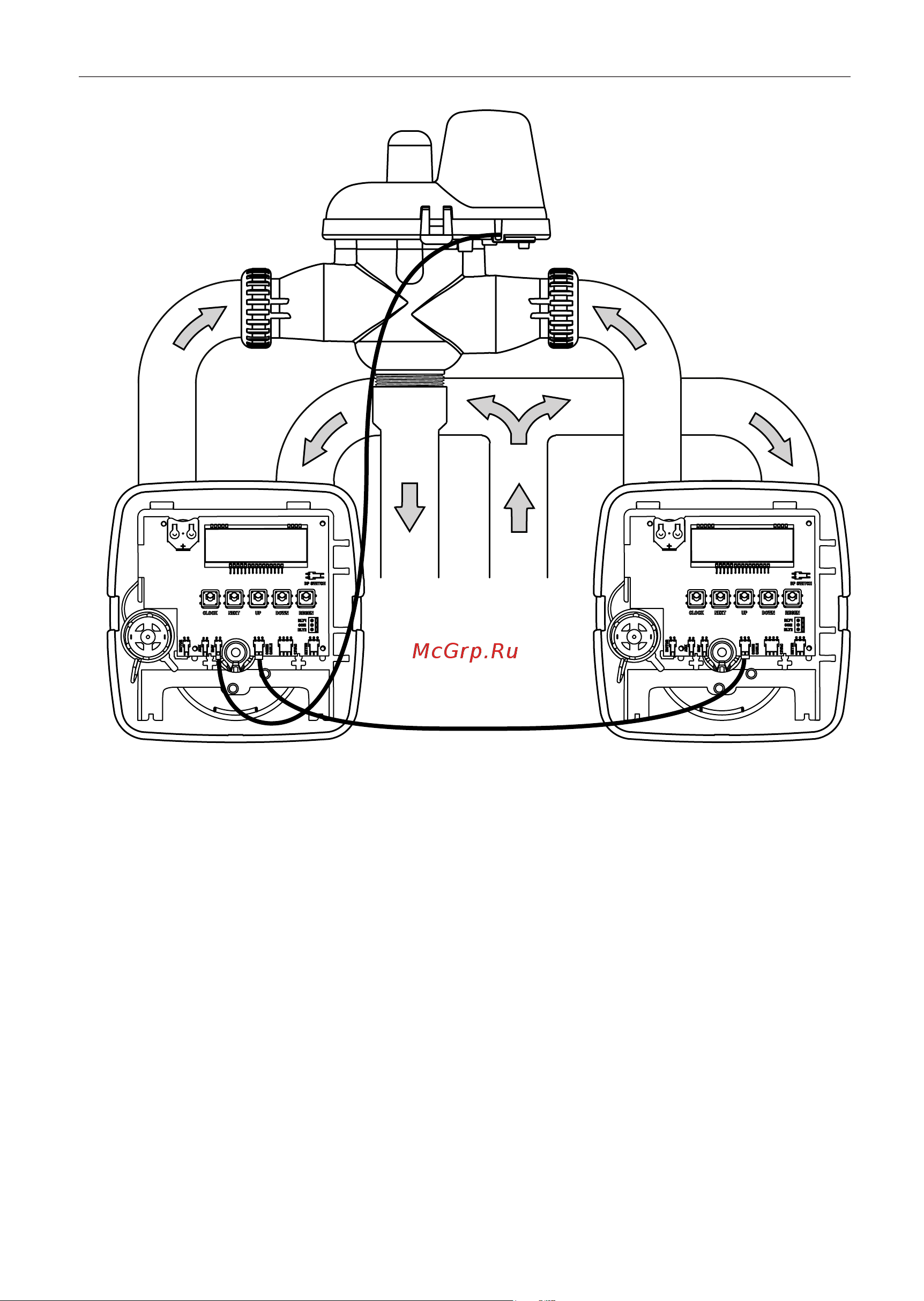

Ecosoft DFU Twin/DFK Twin system setup

MOTOR, 12VAC, and METER cords are not shown but must be plugged in for proper functioning of each

lter. Both control valves must be programmed for Twin operation as provided in the following section.

TREATED

WATER

OUT

RAW

WATER

PORT C

PORT A PORT B

LEAD TANK RESERVE TANK
