-11-

ME/JIG


Hardwood

Glass

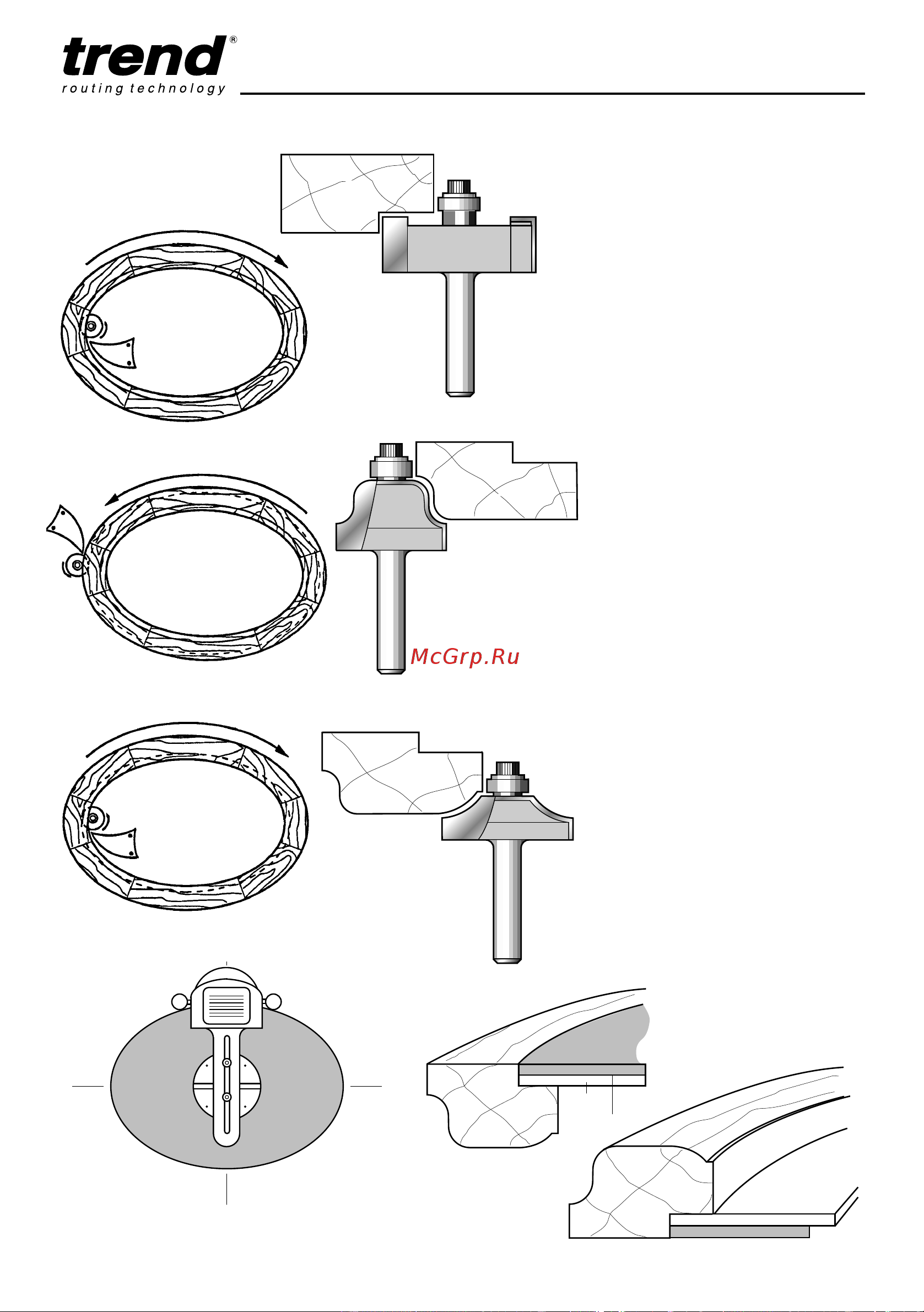

Routing the rebate on a router

table

Using Trend Ref. 46/39.

The rebate for the glass and

backing piece can be produced

with a bearing guided rebate

cutter inverted in a table as

shown.

Alternatively, the frame can be

left fitted to the work-board as in

step 8 and the ellipse jig

adjusted so that the correct sized

rebate can be made with the

same two flute cutter as used to

cut the frame.

Routing the outside mould on

a router table

Using Trend Ref. 46/230.

The moulding of the frame is

best suited to a table mounted

router fitted with a bearing

guided cutter. The frame is

inverted with the face side down

onto the table. The cutter should

be well guarded and the frame

rotated against the rotation

direction of the cutter.

Two passes at increased depths

may be necessary to cut the

mould safely.

Routing the inside mould on a

router table

Using Trend Ref. 46/41.

Repeat the above procedure to

rout the outside mould.

When routing out the backing hardboard piece,

secure the cross frame with double-sided tape.

Glass


Hardwood

9. plan

10. plan

11. plan

12.

Faceside

Underside

Rotate frame

clockwise

Lead-on

piece

Rotate frame

anti-clockwise

Rotate frame

clockwise

Lead-on

piece
