ME/JIG
INTRODUCTION
The Mini Ellipse Jig is ideal for routing elliptical
picture frames, mirrors, clocks and small coffee
tables.
The twin slider system produces perfect ellipses.
■ Axis points are fully adjustable
■ Single fixed slider can be locked to provide
circles up to 600mm diameter
■ Metric and imperial measurement scales for
accurate adjustment
■ Can be used as a drawing instrument by
fitting pen plug and plotter pen
■ Can be fitted to most makes of light duty
router, for which bolts are supplied
The following table shows limitations of sizes for
ellipses it is possible to make.
Major Axis Minor Axis
Max. Min.
580mm 520mm 430mm
500mm 450mm 360mm
400mm 340mm 250mm
300mm 250mm 160mm
220mm 160mm 160mm
IMPORTANT!
The Ellipse Jig should be used
and stored at normal room
temperature, and out of direct
sunlight to maintain a smooth
operation of the sliders.

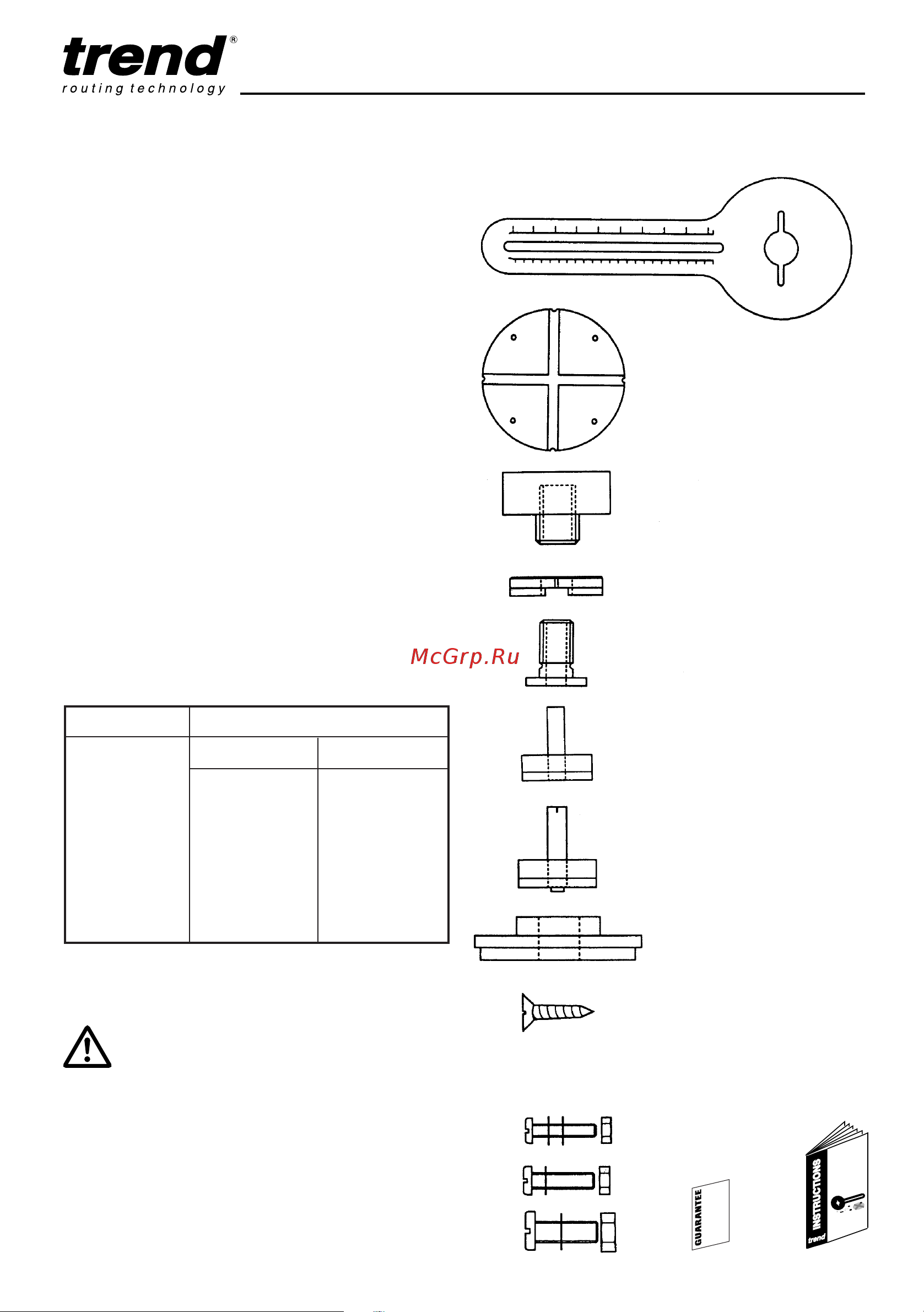

1 x Main Plate
1 x Cross Frame
2 x Securing Knobs
2 x Index Washers
2 x Index Sleeves
2 x Ellipse Sliders
1 x Circle Slider
1 x Pencil Plug & Grommet
4 x Mounting Screws
ITEMS ENCLOSED
MINI
ELLIPSE
JIG
1 x Mounting Kit for router 1 x Manual
1 x Guarantee card
