OPERATION

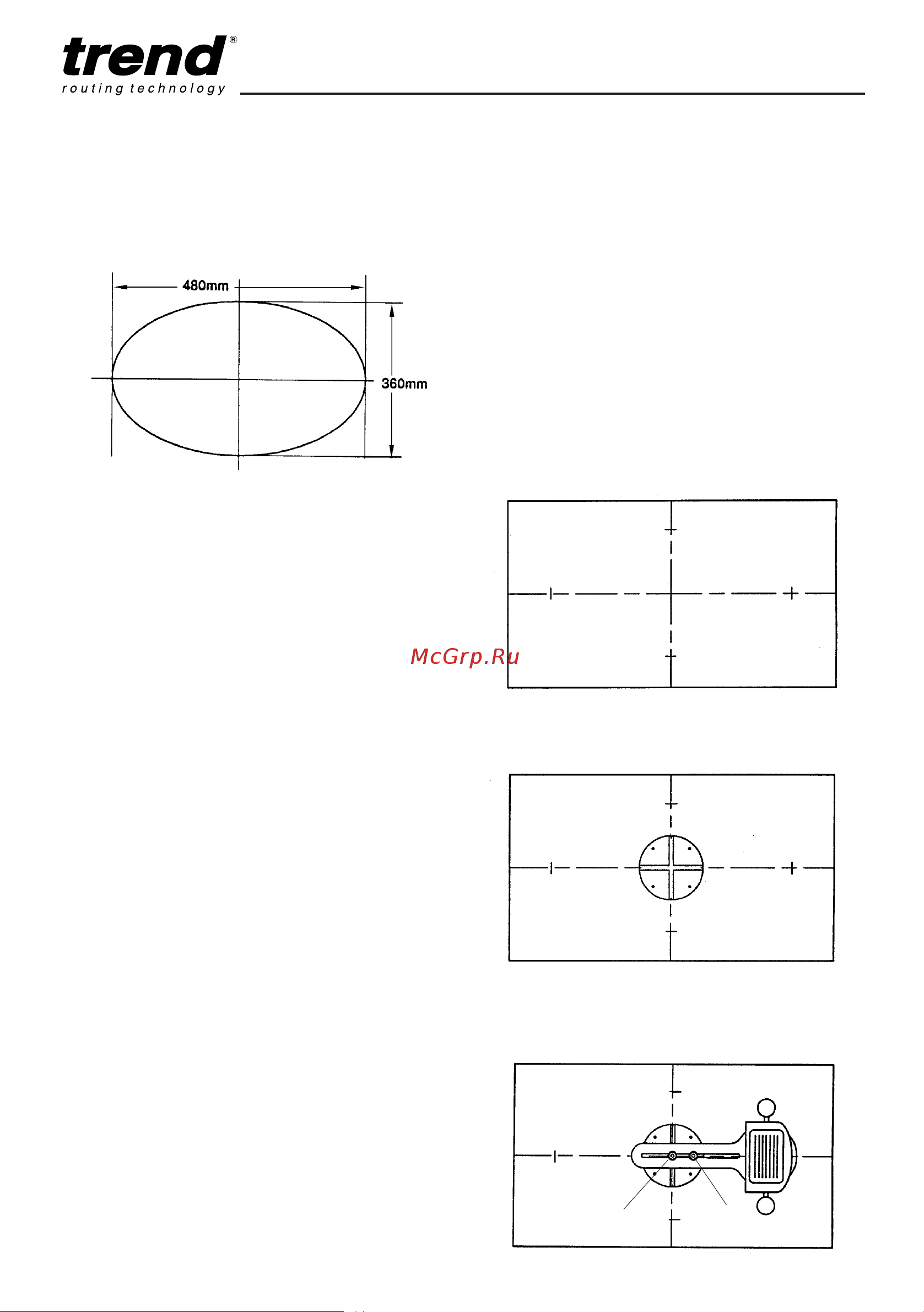

Basic Setting Up Procedure

for an Ellipse 480mm x 360mm

Marking out

■ Determine size of workpiece required.

■ Ensure chosen workpiece is sufficiently larger

to accommodate the ellipse and support the

jig.

■ Mark the centre lines for the major and minor

axis.

■ Mark overall dimensions of ellipse onto centre

lines.

Fixing Cross Frame

■ Position cross frame using the four sighting

marks on the perimeter of the cross frame.

■ Drill four 3.2mm (1/8”) diameter holes through

the holes of the cross frame into the

workpiece.

■ Using the four mounting screws, fix the cross

frame to the workpiece.

Setting Major Axis

■ Slide the two sliders into each slot at 90° to

each other.

■ Locate each of the pivot points over the

vertical pin of the slider.

■ Loosen both knobs, A and B.

■ Position the router over major axis mark, slide

main frame until cutter is positioned over

mark and check that index washer on pivot

point ‘A’ reads 240mm, then lock knob ‘A’.

-7-

ME/JIG

Illustrations are symbolic and not to scale

A B

Major Axis

Major Axis

Minor Axis
