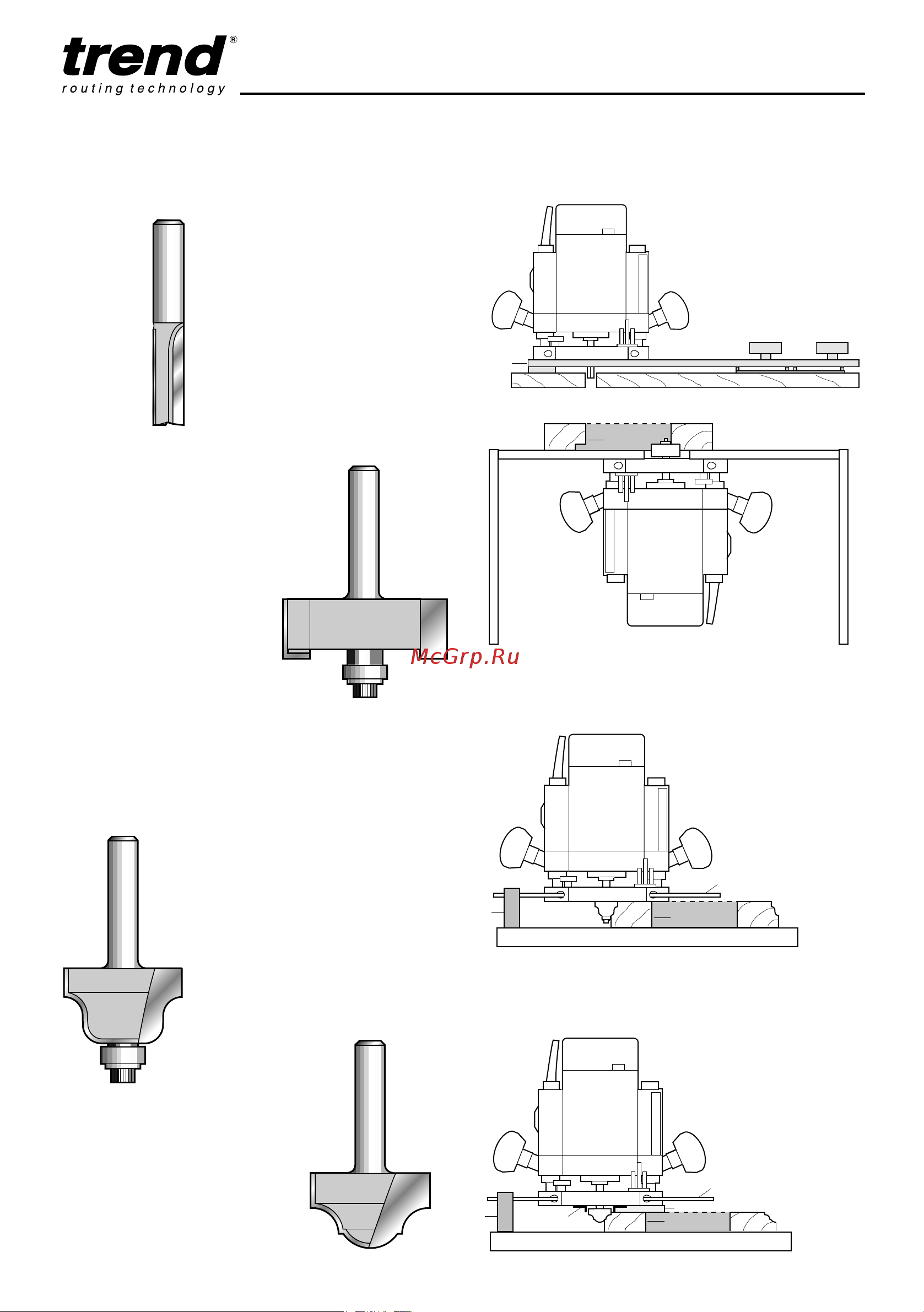

-9-

ME/JIG

Wastepiece

Workpiece

Ellipse

Jig

Frame

Table

Frame

Guide rods

Workboard

Ski

Frame

Guide rods

Template

Workboard

Ski

Guide bush

For batch production of

elliptical frames, the

ellipse jig is used to cut

an elliptical template from

thin plastic or hardboard.

The template is

then used to cut

and profile the

frames in the

conventional

manner.

Cutters suitable for Elliptical

Routing

Straight Flute Cutter

Trend Ref. 3/20 or 3/20L.

To cut an elliptical or

circular shape, use a

narrow two flute straight

cutter which is long enough

to break-through the

material.

Ogee Cutter

Trend Ref. 46/230.

This type of bearing guided cutter

is ideal for moulding the frame or

plaque once it has been cut out

using the ellipse jig. Best used

with the router in a table.

Panelling Cutter

Trend Ref. 18/52.

Can be used with an

elliptical template made on

the ellipse jig in conjunction

with a guide bush fitted to

the router.

Rebate Cutter

Trend Ref. 46/39.

Used to create the

recess for the backing

piece and glass. The

cutter is supplied with

four bearings to allow

alternate widths of

rebate.

Rebate widths =

8mm, 9.5mm, 11mm

and 12.7mm.

Suggested methods of working

Using Ellipse Jig

Cuts should be

made at repeated

depths of 2-3mm,

depending on the

material.

Using Router Table

A lead on piece should be used when

performing any bearing guided work.

A support pad

can be made to

prevent the

router from

tipping over

when routing the

frame.
