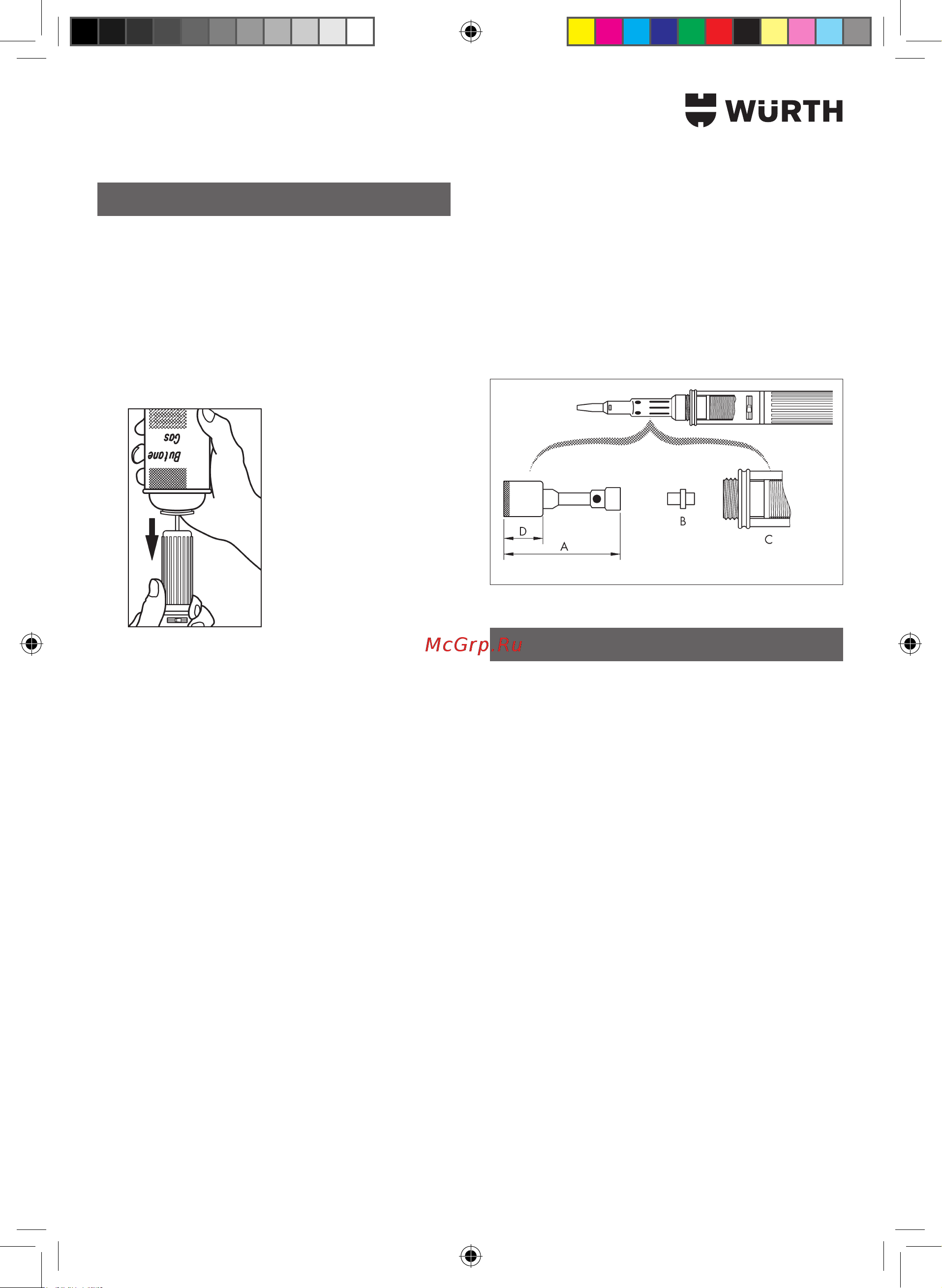

3.1 Refuelling

 MakesuretheOn/Oignitionswitchisat

”OFF“positionbeforelling.

 Torell,holdrellcanvertically(fueltransferis

dependent on gravity).

 Stopllingwhengasescapes.

3.2 Ignition Sequence

 SettheOn/Oignitionswitchtothe”ON“

position to release gas.

Push the switch in the

direction of the tip to the

uppermost point to ignite,

then release the switch

back to the ”ON“ posi-

tion.

Do not touch the tip, tip

housing or knurled nut

while igniting.

Do not ignite the device if

”Tip Assembly“ is not

screwed on.

 Toturno,slidetheOn/Oignitionswitch

downward to the ”OFF“ position.

3.3 Use of Soldering Tip/Heat Blower Tip

and Hot Knife Tip

Make sure the hot air exhaust hole is positioned

upwardly as pictured.

Set gas control lever to mid position.

Tip temperature can be changed by adjusting

the gas control lever.

3.4 Use without Tip (Blow Torch)

Remove tip and tip housing by loosening

knurled nut.

Mount tip housing in place without tip.

 Adjusttheamelength.Donotadjustto

maximumlengthasgasmayare-upandcut

out.

3.5 CleanorReplaceOriceAssembly

Remove tip and tip housing by loosening

knurled nut.

While holding the device in a vertical position,

unscrew assembly nozzle (A). You may have to

use pliers or other tool to start unscrewing.

Do not grasp and turn the ceramic head (D).

 Carefullyremovetheoriceassembly(B)by

liftingitoutofthedevice(C).

3. Handling

 Notethattheshortersideoftheoriceassem-

blytsintothedevice.

 SoaktheoriceassemblyinNaphthaorother

similar solvent for 5 minutes.

 Replacetheclean(ornew)oriceassembly

(shorter side into the device).

Replace the assembly nozzle (hand tighten)

with pliers, grasping the shank of the assembly

nozzle.

Use mild soap and a damp cloth to clean the

housings of the tool. Do not use household cleaners,

gasoline, turpentine or paint thinner. Never allow

any liquid to get inside of the device. Never immerse

any part of the device in liquid.

Nozzle Assembly

Orifice Assembly

4. Cleaning
