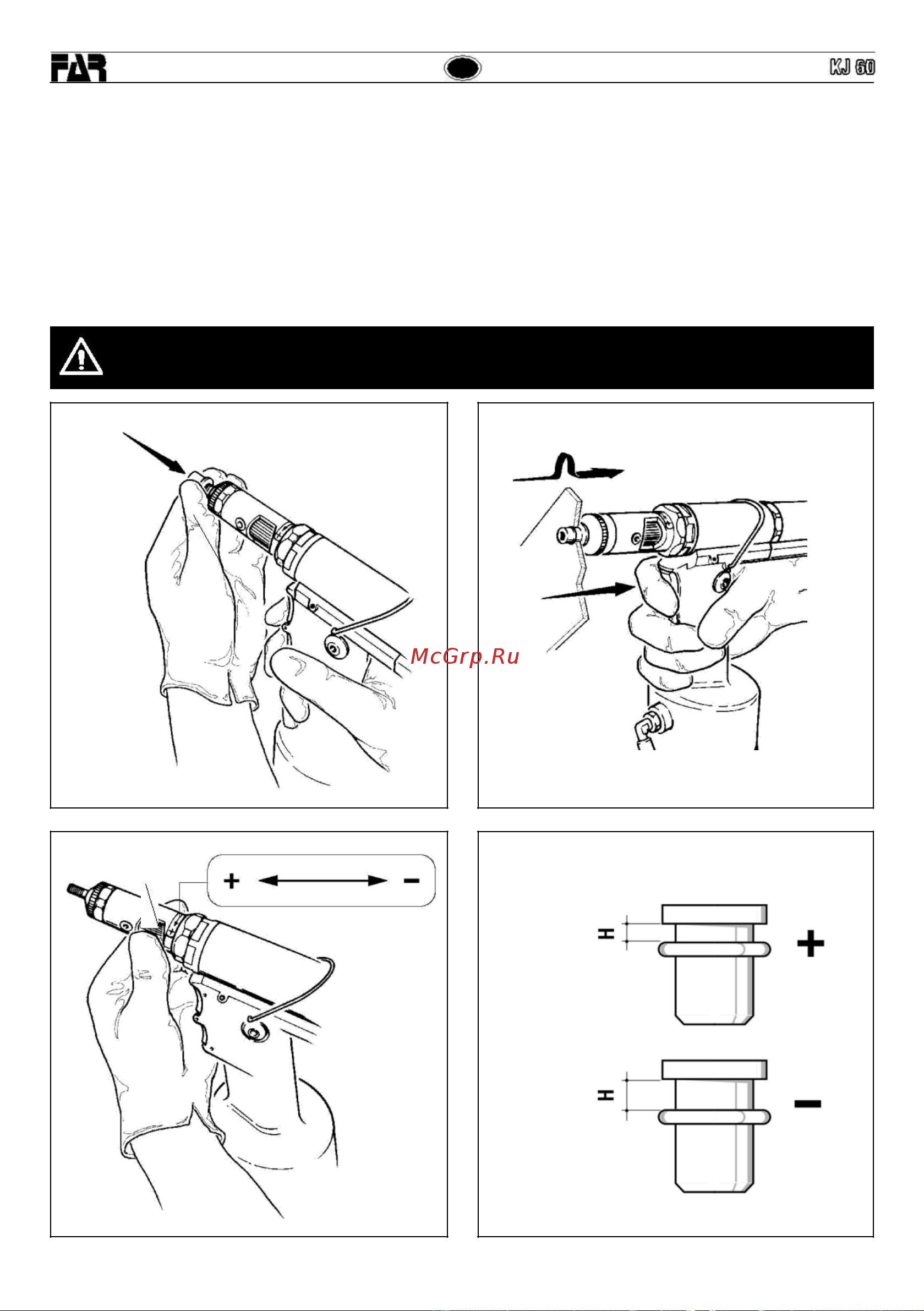

PLACING OF THE INSERT

Make sure that the couple tie-rod/head mounted on your riveting tool is suitable for the insert to clamp; otherwise,

change size accordingly. Usually the riveting tool is supplied with the couple tie-rod/head corresponding to a M8 thread.

Before using the riveting tool and after any change of size, perform the following operations according to the size and

thickness of the part to clamp. Adjust the riveting tool stroke to the minimum by turning the ring nut “G” to “–” marked on

the tool. Place the insert on the tie rod and push slightly on it so as to make it clamp automatically. Make sure the insert

head touches the riveting tool head properly. Fasten the insert and in order to ensure a proper clamping of the material,

adjust the riveting tool stroke by turning the ring nut “G” accordingly. By increasing stroke, i.e. by turning the ring nut “G”

to “+”, the distance “h” between head and insert deformation will decrease and clamping will result more effective.

WARNING!!! A WRONG ADJUSTMENT OF THE RIVETING TOOL STROKE

MAY CAUSE A FAULTY CLAMPING OF INSERTS AND MAY BRAKE THE TIE ROD!

–

Revisione - 18 Date 01-2012 9
