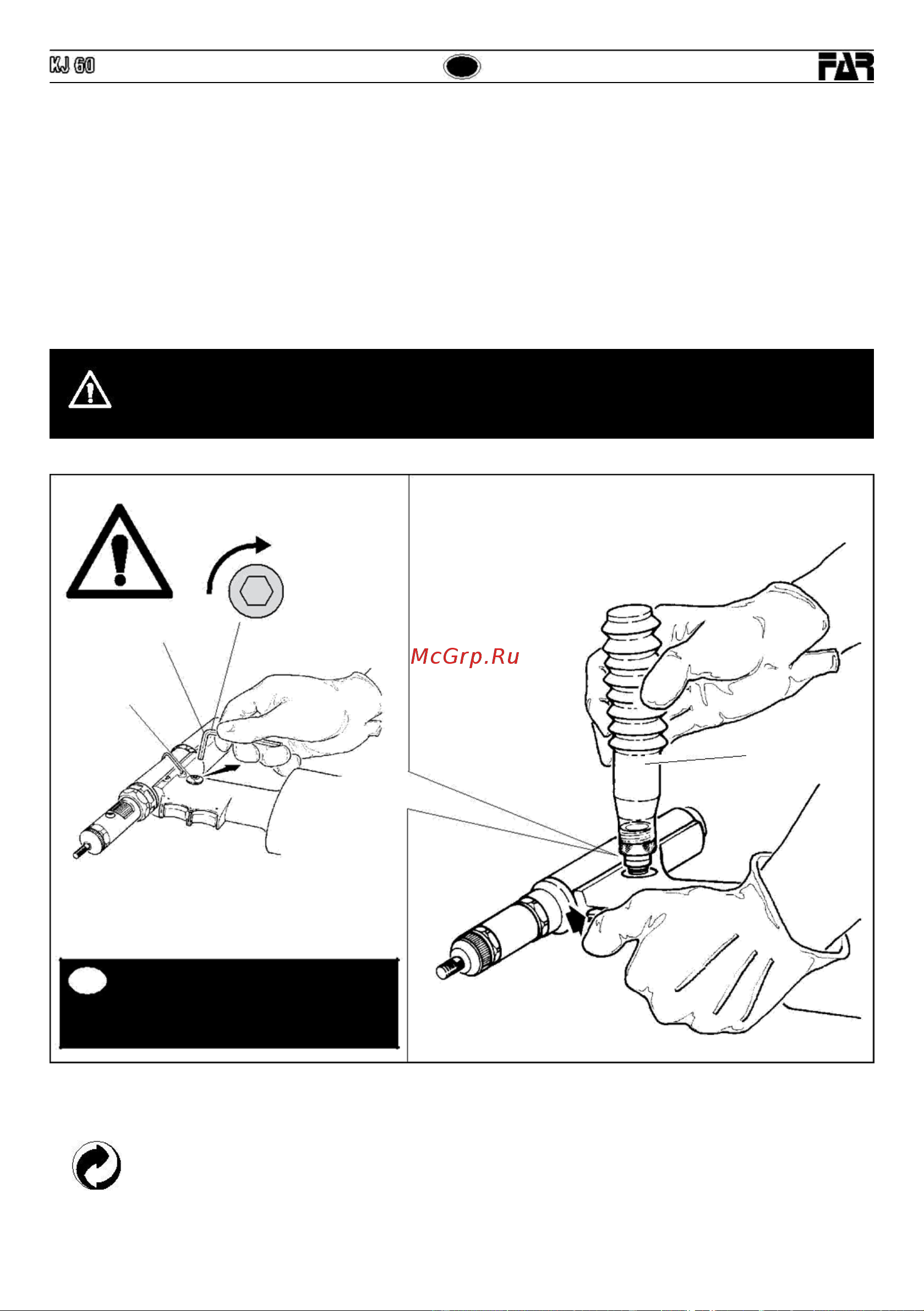

TOPPING UP THE OIL-DYNAMIC CIRCUIT

You need to top up the oil-dynamic circuit after a long period of work, when you note a power loss. Put the riveting tool

(DWELL AND NOT FED) in a horizontal position and remove the plug (A), by means of a 5 mm Allen wrench (equipped

with the riveting tool); during this operation, check the oil level in order to avoid any overflowing. Then, slowly pour the oil

PANOLIN HLP ISO 32 into the bellows container (X) which shall be screwed to its seat on the plug (A). While keeping

the riveting tool in a horizontal position and starting air feeding, push the tensile strength button and make the riveting

tool carry out some cycles until air bubbles inside the container (X) stop coming out. This condition indicates that the

topping up of the oil has fully been achieved. At this point stop the air feeding and, while keeping the riveting tool in a

horizontal position, unscrew and close up the container (X) and the plug (A).

WARNING: it is very important to follow the about mentioned instructions and use gloves. If you need to empty fully the hydraulic

circuit, you must put the oil in a suitable container and contact a Company that is authorized to discharge any waste

WARNING! Before disconnecting the compressed air hose, make sure that it is not under pressure! We

recommend to use oil PANOLIN HLP ISO 32 DIN 51524-2/HLP or similars.

min. 5 Nm

max. 8 Nm

5 mm.

WARNING: Make sure that the oil filler cap

(A) is tightened at a torque corresponding

to Min. 5 Nm ÷ Max. 8 Nm.

DISPOSAL OF THE RIVETING TOOL

Follow the prescriptions of the national laws for disposing of the riveting tool.

After disconnecting the tool from the pneumatic system, disassemble and split all the components

according to the material: steel, aluminium, plastic material, etc.

Then proceed to scrap the materials in accordance with current laws.
