English | 19

people in the near vicinity.

Certain dusts, such as oak or beech dust, are classified as

carcinogenic, especially in conjunction with wood treatment

additives (chromate, wood preservative). Materials contain-

ing asbestos may only be machined by specialists.

– Use a dust extraction system that is suitable for the ma-

terial wherever possible.

– Provide good ventilation at the workplace.

– It is advisable to wear a P2 filter class breathing mask.

The regulations on the material being machined that apply in

the country of use must be observed.

u Avoid dust accumulation at the workplace. Dust can

easily ignite.

Chip ejector (see figureB)

The chip ejector (18) can turn freely.

An extraction hose with a diameter of 35mm or a dust/chip

box (28) can be connected to the chip ejector (18).

To ensure optimum extraction, the chip ejector (18) must be

cleaned regularly.

External dust extraction

Connect the dust extraction hose (29) to a dust extractor

(accessory). You will find an overview of how to connect to

various dust extractors at the end of these operating instruc-

tions.

The dust extractor must be suitable for the material being

worked.

When extracting dry dust that is especially detrimental to

health or carcinogenic, use a special dust extractor.

Mounting the utility hook (see figures F–G)

Using a screwdriver, lever out the cover(3) from the recess

on the side. Mount the utility hook(30) and secure it with

two screws. Tighten the screws with a torque of 1.8–2Nm.

The utility hook(30) can be swivelled.

Operation

u Remove the battery from the power tool before carry-

ing out work on the power tool (e.g. maintenance,

changing tool, etc.). The battery should also be re-

moved for transport and storage. There is risk of injury

from unintentionally pressing the on/off switch.

Operating modes

Setting the cutting depth (see figure C)

u Adapt the cutting depth to the thickness of the work-

piece. A space of less than the height of one full tooth

should be visible under the workpiece.

Loosen the clamping lever (7). For a smaller cutting depth,

pull the saw away from the base plate (15); for a larger cut-

ting depth, push the saw towards the base plate (15). Adjust

the desired cutting depth at the cutting-depth scale.

Retighten the clamping lever (7).

The clamping force of the clamping lever (7) can be readjus-

ted. To do so, unscrew the clamping lever (7) and retighten

it in a position offset by at least 30° in an anticlockwise direc-

tion.

Adjusting the mitre/bevel angle

We recommend that you place the power tool down on the

front side of the protective guard (17).

Loosen the clamping lever for mitre/bevel angle

preselection(9). Swivel the saw to the side. Set the required

mitre/bevel angle on the scale(8). Retighten the clamping

lever (9).

Note: When making mitre cuts, the cutting depth is less than

the value shown on the cutting depth scale (20).

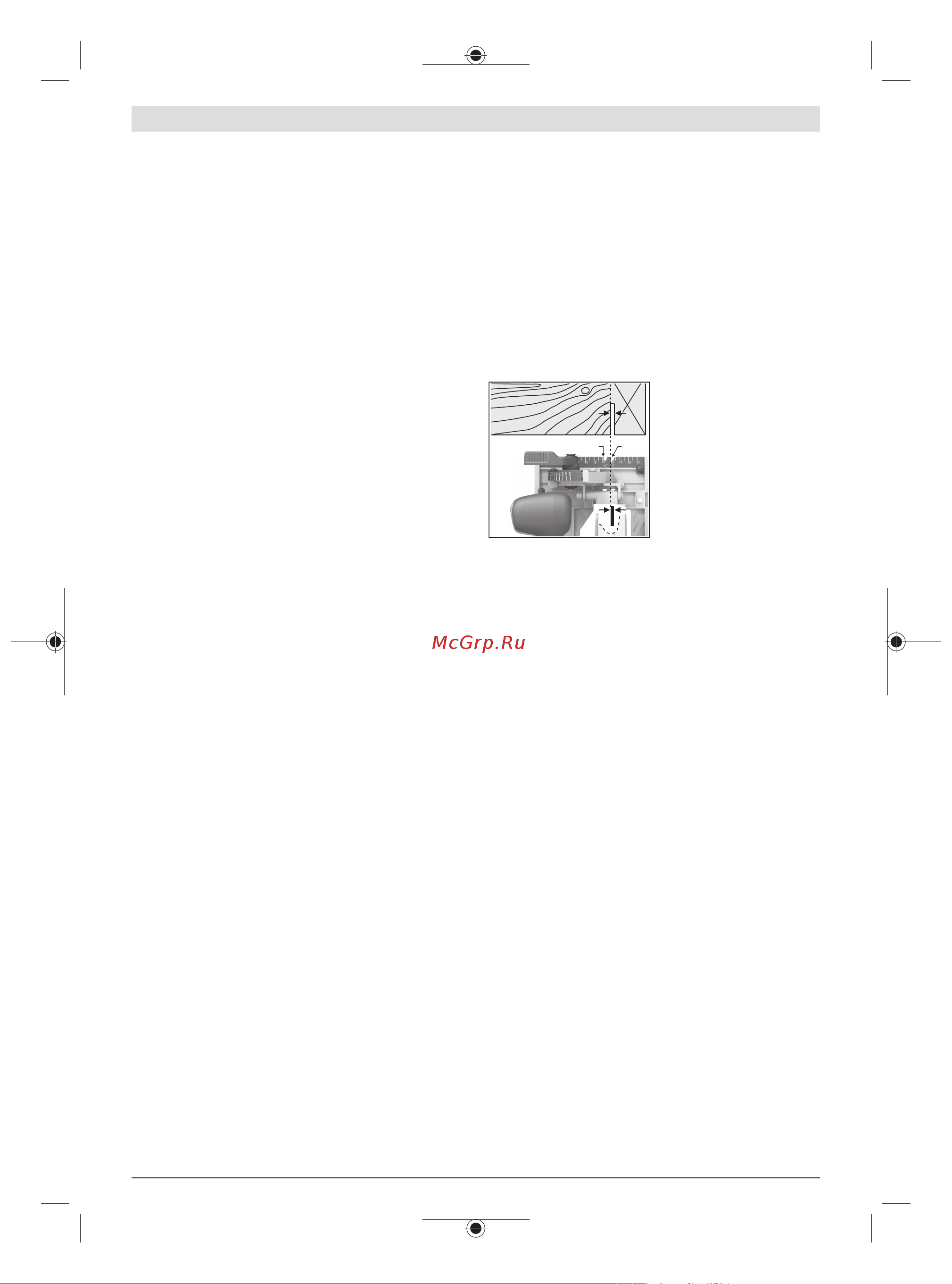

Cut marks

The cut mark (12) indicates

the position of the saw blade

when making a right-angled

cut.

For a precise cut, place the

circular saw against the work-

piece as shown in the figure.

We recommend making a test

cut.

Start-up

Switching on/off

u Make sure that you are able to press the On/Off switch

without releasing the handle.

To start the power tool, first press the lock-off switch (2),

then press and hold the on/off switch (1).

To switch off the power tool, release the on/off switch (1).

Note: For safety reasons, the on/off switch (1) cannot be

locked; it must remain pressed during the entire operation.

Switching on the LED worklight

The lamp (10) lights up when the on/off switch (1) is lightly

or fully pressed, meaning that the work area is illuminated in

poor lighting conditions.

Run-out brake

An integrated run-out brake shortens the time the saw blade

keeps running for after the power tool has been switched

off.

Protection Against Deep Discharging

The lithium-ion battery is protected against deep discharge

by the Electronic Cell Protection (ECP). When the battery is

discharged, the power tool is switched off by means of a pro-

tective circuit: The application tool no longer rotates.

Practical advice

u Remove the battery from the power tool before carry-

ing out work on the power tool (e.g. maintenance,

changing tool, etc.). The battery should also be re-

moved for transport and storage. There is risk of injury

from unintentionally pressing the on/off switch.

The width of cut varies depending on the saw blade used.

Protect saw blades against shock and impact.

Bosch Power Tools 1 609 92A 74Z | (11.05.2022)
