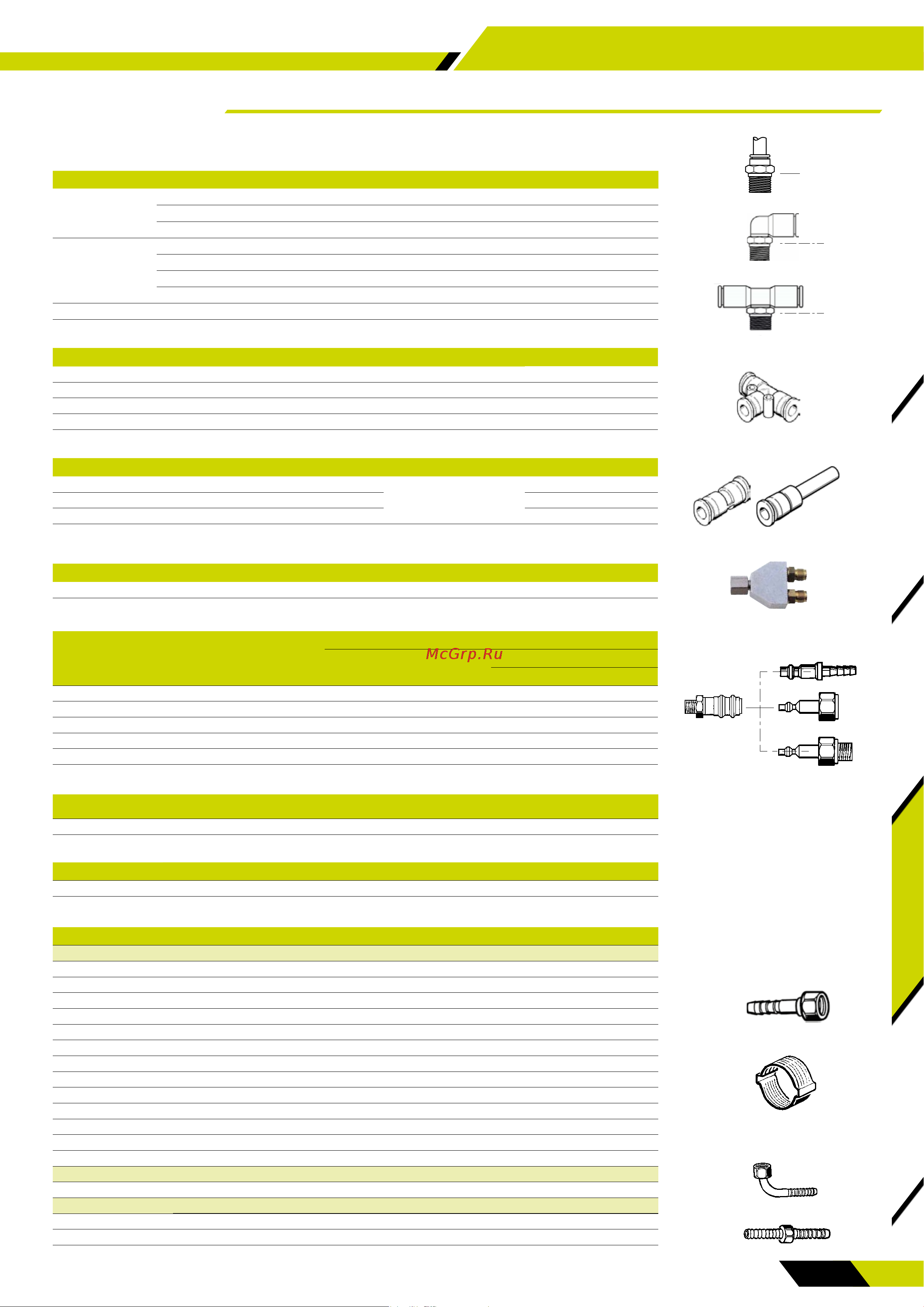

Fluid line
A B Straight Right angle 90° T- piece
G1/8" (5x10)
4 905.120.907 905.120.926
6 905.124.901 552262
8 905.120.934
G1/4" (8x13)
4 905.120.927
6 905.120.965 905.120.905
8 905.120.904 905.120.912 905.120.920
10 905.190.406 552280
G3/8" (12x17) 10 905.190.415
FAST FITTINGS FOR SMALL DIAMETER SPECIAL AIR HOSES
A
A
A
CD
B
B
B B
Description Part number
For hose 2,7 x 4 905.120.957
For hose 4 x 6 905.120.903
For hose 6 x 8 905.120.915
Reduction 2,7 x 4 / 4 x 6 905.120.928
Description to Part number
Ø2,7 x 4
Ø4 x 6
905.120.945 (C)
Ø4 x 6 552.322 (D)
Ø6 x 8 905.120.923 (C)
Description to Part number
F 1/4" NPS 2x M 1/4" NPS 129.029.920
FAST FITTING T
FAST FITTING REDUCTION AND UNION
Y AIR FITTING
ISO 6150 QUICK-FIT FITTINGS (MAXIMUM PRESSURE: 10 BAR)
Type
Complete
assembly
E and F
Part E
Part F
Female
tting
Male tting
Cuanneled
Ø 7 Ø 10
Ø5 (14x125) 905.030.405 905.030.102 905.030.406 - 905.030.203 905.030.204
Ø5 (1/4" BSP) - - - 905.030.804 - -
Ø5 (1/4" BSP) - - 905.030.803 - - -
Ø5 (1/4" NPS) 905.030.105 905.030.104 905.030.106 - - -
Holding collar - - - - 906.311.224 906.311.226
Description Part number
Air inlet quick-disconnect tting 905.030.105
COMPLETE QUICK DISCONNECT 1/4" NPS FOR AIR HOSE
Type Part A with on/off press buttom for hose Ø 8 Part C for hose Ø 8
Ø 5 905.030.801 905.030.802
QUICK FITTINGS FOR Ø 8 HOSE
F
H
J
E
G
I
CRIMP FITTINGS FOR LOW PRESSURE AIR HOSES
Description Thread size Hoses Inter. Diameter (mm) Part G Part H
Straight ttings
Nickel plated brass 1/4" NPS 7 050.231.705 906.311.224
Nickel plated brass 1/4" NPS 8 050.231.707 906.311.224
Nickel plated brass 1/4" NPS 10 050.231.702 906.311.226
Nickel plated brass 3/8" NPS 7 050.231.716 906.311.224
Nickel plated brass 3/8" NPS 10 050.231.706 906.311.226
Nickel plated brass 3/8" NPS 16 050.231.701 906.311.232
Stainless steel M 14 x 125 5 050.230.610 906.311.208
Nickel plated brass M 14 x 125 10 050.230.602 906.311.226
Nickel plated brass M 18 x 125 7 050.230.616 906.311.224
Stainless steel M 18 x 125 10 050.230.614 906.311.226
Nickel plated brass M 18 x 125 10 050.230.606 906.311.226
Nickel plated brass M 18 x 125 16 050.230.601 906.311.232
Nickel plated brass M 26 x 125 16 050.230.603 906.311.232
Elbow ttings - I
Nickel plated brass M 18 x 125 10 050.250.202 906.311.226
Junction ttings without thread - J
Nickel plated brass - 7 050.190.403 906.311.224
Nickel plated brass - 10 050.190.401 906.311.226
