Airspray spraying & equipment

Catalog V5.3

Spray gunsMachines & Controllers PumpsAccessoriesGeneral informations

Heater

SPECIFICATIONS

HEATER NAME

MAGMA 500 ID9 MAGMA 500 ID14

Maximum uid pressure 500 bar (7 250 psi)

Fluid passage volume 0.225 L (0.0594 gal)

0.390 L (0.130 gal)

Internal diameter 9 mm (0.35”) 14 mm (0.55”)

Fluid passage length 354 cm (140”) 253 cm (100”)

Voltage range (V) 115 230 400 115 230

400 480

Maximum uid temperature 85 °C (185 °F)

Temperature classication T4

Wetted parts Stainless Steel

Weight 17,6 kg (38.8 lbs)

Explosion Proof II 2G Ex db IIB T4 Gb

Dimensions (H x L x l) 405 x 220 x 180 mm (16 x 8.7 x 7.1 in)

Material uid heater is an auxiliary device used

for material preparation and air heating.

Higher layer thicknesses can be achieved by

heating the material, as well as shorter drying

times and higher nishing quality.

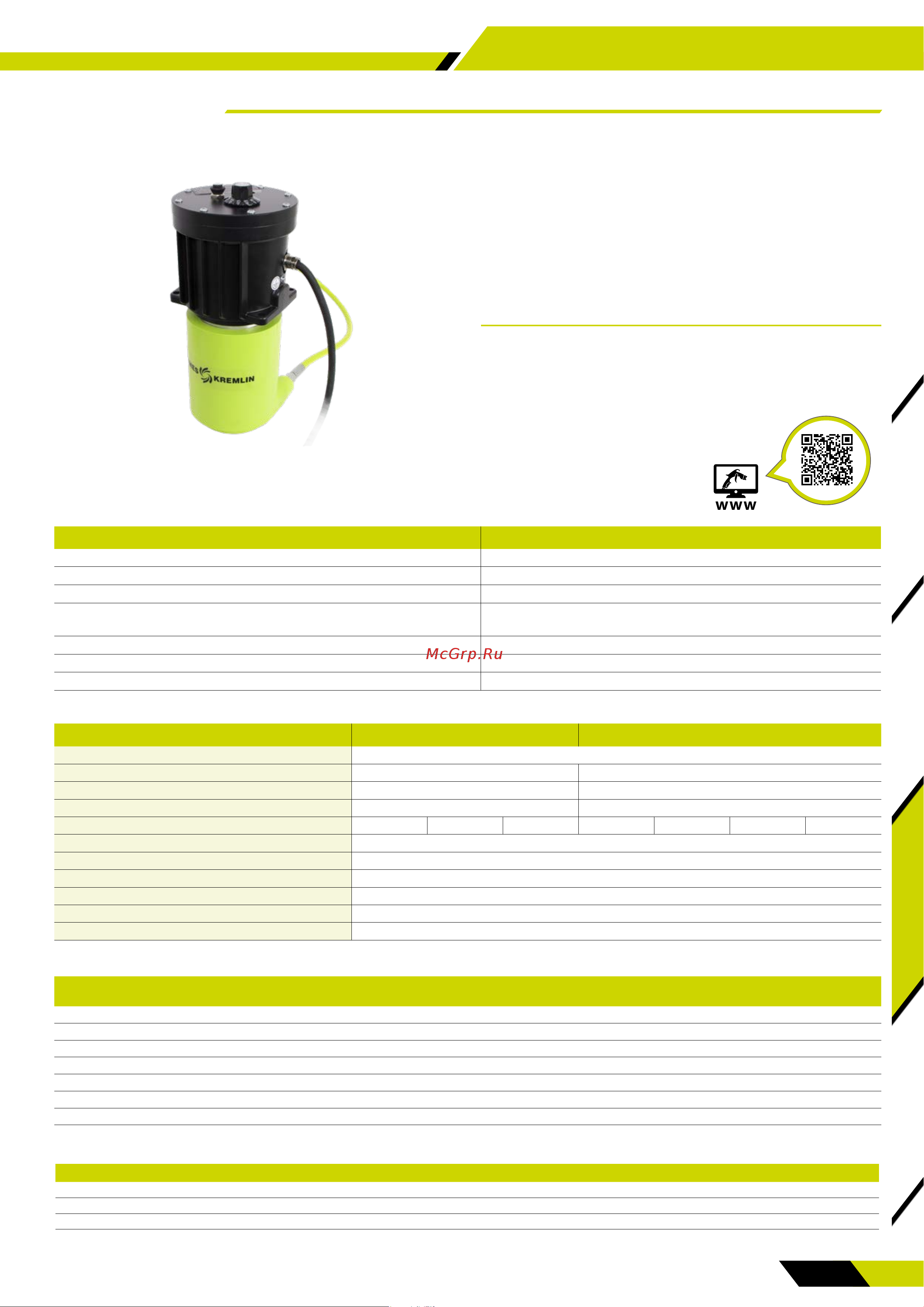

Magma 500

• High pressure for heavy duty applications

• Excellent performances even without Fluid recirculation

• Stainless steel design and Explosion proof, compatible

with most coatings

FEATURES BENEFITS

Standard Stainless steel design Compatible with water-based materials

Thermometer integrated into the command box Direct information on the desire temperature

Flexible positioning of the heat exchanger connections Easy implementation

The highest uid passage volume of the market Insure outstanding performances even when using as one pass

(without recirculation)

Possibility of heating atomizing air Increase nishing quality and regrease drying times

ATEX Compliant Can be used in hazardous atmosphere

Weather resistant Always efcient even in high humidity environments

Description

Fitting IN/OUT

Internal Fluid

diameter (mm)

Volt max (V) Power (W) Material

Pmax

pressure (bar)

Delta T°C Part number

ID14 HV 230V 3500W M3/4 JIC M 3/4 JIC 1,4 230 3500 SST 500 15-90 156.160.010

ID14 HV 115V 1800W M3/4 JIC M 3/4 JIC 1,4 115 1800 SST 500 15-90 156.160.020

ID 14 HV 400V 3800W M3/4 JIC M 3/4 JIC 1,4 400 3800 SST 500 15-90 156.160.030

ID9 230V 3500W M1/2 JIC M 1/2 JIC 0,9 230 3500 SST 500 15-90 156.160.040

ID9 115V 1800W M1/2 JIC M 1/2 JIC 0,9 115 1800 SST 500 15-90 156.160.050

ID9 400V 3800W M1/2 JIC M 1/2 JIC 0,9 400 3800 SST 500 15-90 156.160.060

ID14 HV 44 0V 3500W M3/4 JIC M 3/4 JIC 1,4 440 3500 SST 500 15-90 156.160.070

CONFIGURATION OF THE MAGMA 500 MATERIAL FLUID HEATER

WARM UP PRODUCTIVITY

Description

Fits to ID

Part number

TEMPERATURE INDICATOR FOR MAGMA 500 ID9 9 mm (0.35”) 156.160.110

TEMPERATURE INDICATOR FOR MAGMA 500 ID14 HV 14 mm (0.55”) 156.160.111

KIT FOR HEATING ATOMIZING AIR MAGMA 500 9 mm (0.35”) & 14 mm (0.55”) 156.160.114

ACCESSORIES
