Airspray spraying & equipment

Catalog V5.3

Spray gunsMachines & Controllers PumpsAccessoriesGeneral informations

Fluid line

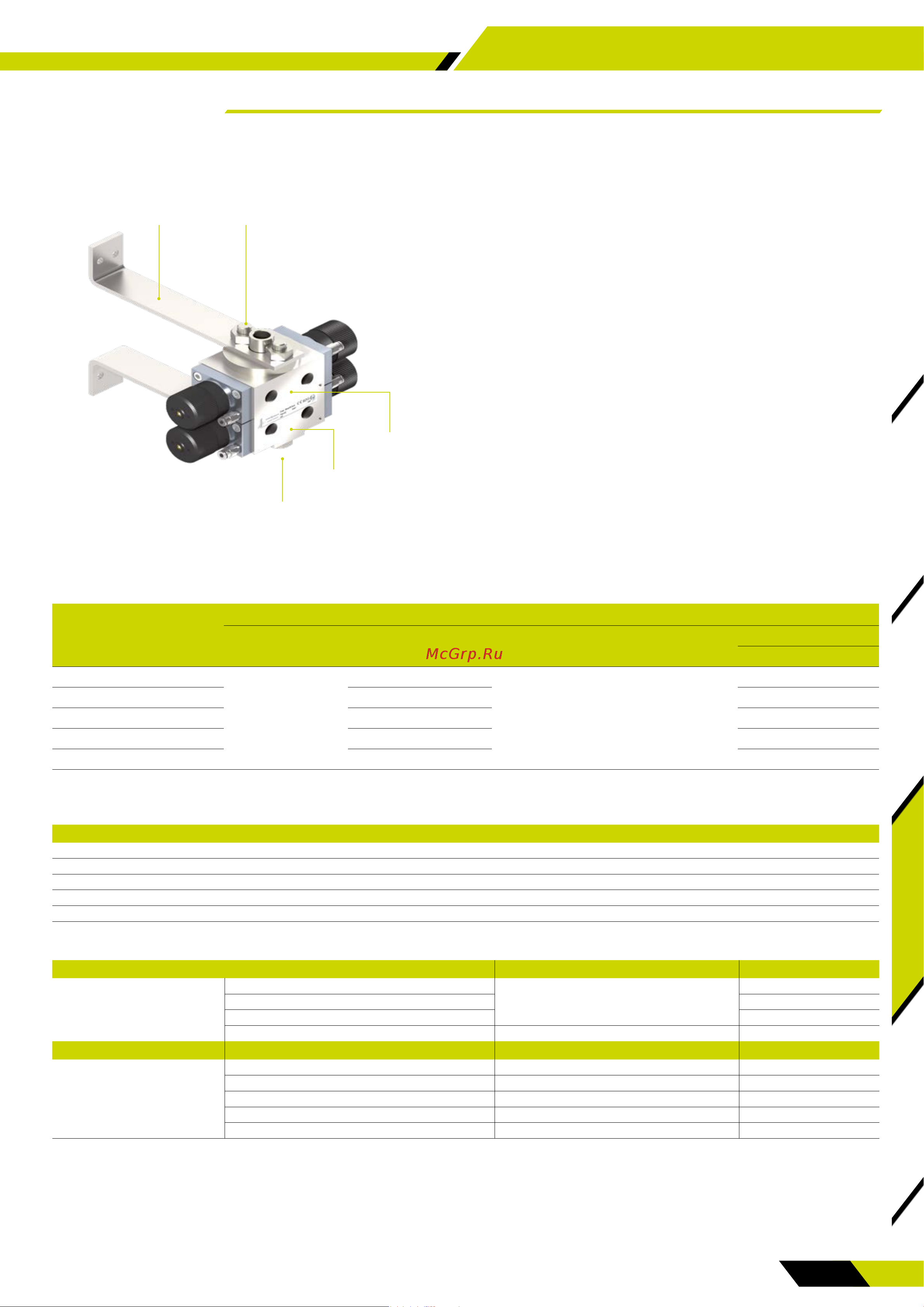

CTM Color Change Valves

CTM are designed for a rapid color change.

• No dead zone inside CTM reducing ushing

time and solvent consumption

• PTFE seals

• Design allows modular expansion

• Monostable valve normally closed

• Visual Opening detector

• Two valves per module (the solvent valve

should be facing the uid outlet)

Assembly of 2 xing squares (D) Assembly module rods (E)

End Module (A)

Intermediate Module (B)

Outlet ange (C)

CTM VALVE SPECIFICATIONS

CONFIGURATION OF CTM VALVES

Description CTM

Max pressure (bar) 8

Ø of passage (mm) 8

Trigger air for hose 2.7 x 4

Fluid inlet F 1/4 NPS

Fluid outlet F 1/4 NPS

Description Max. pressure (bar) Part number

Modules

End module (inlet)

155.535.100

Intermediate module 155.535.200

Outlet ange 155.535.300

Fixing square kit 155.535.700

Description Nb. of materials Part number

Rod assembly size

For 1 module (1 end + 1 ange) 2 155.535.610

For 2 modules (1 end + 1 intermediate + 1 ange) 4 155.535.620

For 3 modules (1 end + 2 iintermediate + 1 ange) 6 155.535.630

For 4 modules (1 end + 3 intermediate + 1 ange) 8 155.535.640

For 5 modules (1 end + 4 intermediate + 1 ange) 10 155.535.650

NB OF MATERIAL UP TO

NUMBER OF ELEMENT TO ORDER

(A) END MODULE

(B) INTERMEDIATE MO-

DULES

FLANGE

(D) FIXING SQUARE KITS

(E) ROD ASSEMBLY SIZE

1 1

FOR 1 MODULE

4 1 FOR 2 MODULES

6 2 FOR 3 MODULES

8 3 FOR 4 MODULES

10 4 FOR 5 MODULES

How to build your complete assembly upon the number of colors:
