Electric air conditioner. Split system

4. DEVICE DESCRIPTION

The conditioner consists of indoor and outdoor units connected by pipelines. The conditioner is

controlled from a remote control board or from a control panel of the indoor unit.

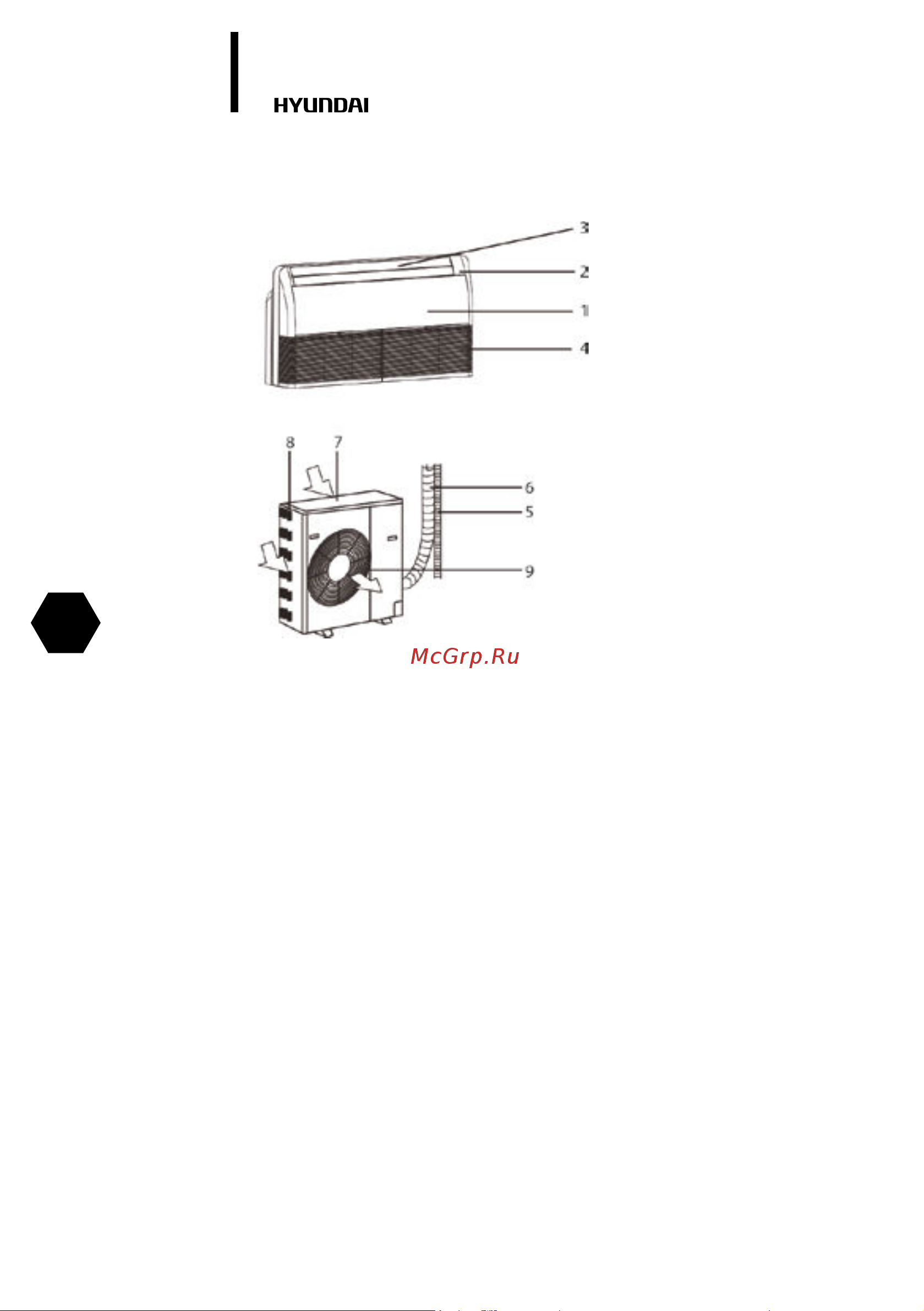

1. Conditioner unit for indoor installation

2. Control and indication panel

3. 

4. Air inlet of indoor unit

5. Tube for condensate removal

6. Copper tube for gas (freon).

7. Conditioner unit for outdoor installation

8. Air inlets of outdoor unit

9. Return air grillages of outdoor unit

Fig. 1
