Electric air conditioner. Split system
7.
Electric air conditioner. Split system
EN EN
4. DEVICE DESCRIPTION
The conditioner consists of indoor and outdoor units connected by pipelines. The conditioner is
controlled from a remote control board or from a control panel of the indoor unit.
1. Air outlet
2. Air inlet
3. Drain pipe
4. Liquid pipe
5. Gas pipe
6. Electric control cabinet
7. Hook
8. Indoor unit
9. Outdoor unit
10. Intake grilles outdoor unit.
11. Air discharge grill outdoor unit.
5. DELIVERY SET
Complete set of air conditioner (split system) includes:
Conditioner unit for indoor installation - 1 piece
Conditioner unit for outdoor installation - 1 piece
Remote control - 1 piece
Batteries for remote control board - 2 pcs.
Operator’s manual with warranty card -1 piece
Packing of indoor-installation unit - 1 piece
Packing of outdoor-installation unit - 1 piece
6. DEVICE CONTROL
The conditioner is controlled from a remote control board or from a control panel of the indoor
unit.

below. Its functions will remain the same.
12. Operation indicator
13. Timer indicator
14. Defrosting-Preheating indicator
15. Indicator alarm status
16. Emergency control
Emergency control shall be used if the remote control board is lost or broken, or batteries are
low. Using an emergency control button situated on the indoor unit control panel you may select
COOL or AUTO mode of the conditioner work. Pressing this button, select a mode of the condi-
tioner work: AUTO, COOL, the conditioner is OFF, AUTO again, etc.
1. Auto mode. The operation indicator lights up and the air conditioner works in the forced
automatic mode. The remote controller can be used.
2. Forced cooling mode. The operation indicator blinks and the air conditioner works in the
forced cooling mode. The fan speed is high for 30 min. The remote controller cannot be used.
3. 
controller can be used.

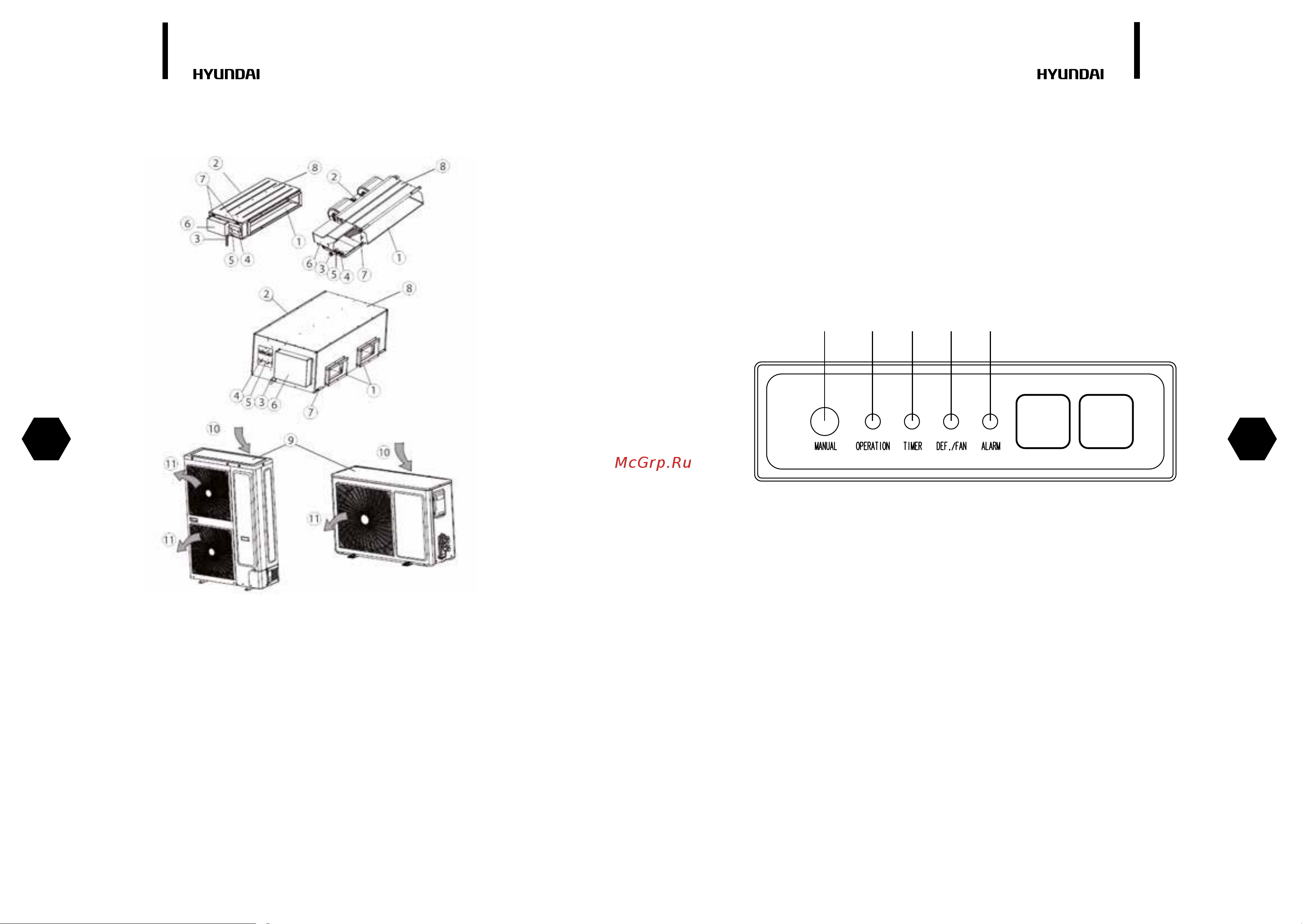

Fig. 1
Fig. 2. Description of indoor unit control board
12 13 14 1516
