Electric air conditioner. Split system

5. DELIVERY SET

Complete set of air conditioner (split system) includes:

Conditioner unit for indoor installation - 1 piece

Conditioner unit for outdoor installation - 1 piece

Remote control - 1 piece

Batteries for remote control board - 2 pcs.

Operator’s manual with warranty card -1 piece

Packing of indoor-installation unit - 1 piece

Packing of outdoor-installation unit - 1 piece

6. DEVICE CONTROL

The conditioner is controlled from a remote control board or from a control panel of the indoor

unit.

Control and indication board of your conditioner may visually dier from a layout view shown

below. Its functions will remain the same.

12. Operation indicator

13. Timer indicator

14. Defrosting-Preheating indicator

15. Indicator alarm status

16. Set button. Using this button you may select operation

17. LED display. Indicator of temperature

Emergency control shall be used if the remote control board is lost or broken, or batteries are

low. Using an emergency control button situated on the indoor unit control panel you may select

COOL or AUTO mode of the conditioner work. Pressing this button, select a mode of the condi-

tioner work: AUTO, COOL, the conditioner is OFF, AUTO again, etc.

1. Auto mode. The operation indicator lights up and the air conditioner works in the forced auto-

matic mode. The remote controller can be used.

2. Forced cooling. The operation indicator blinks and the air conditioner works in the forced cool-

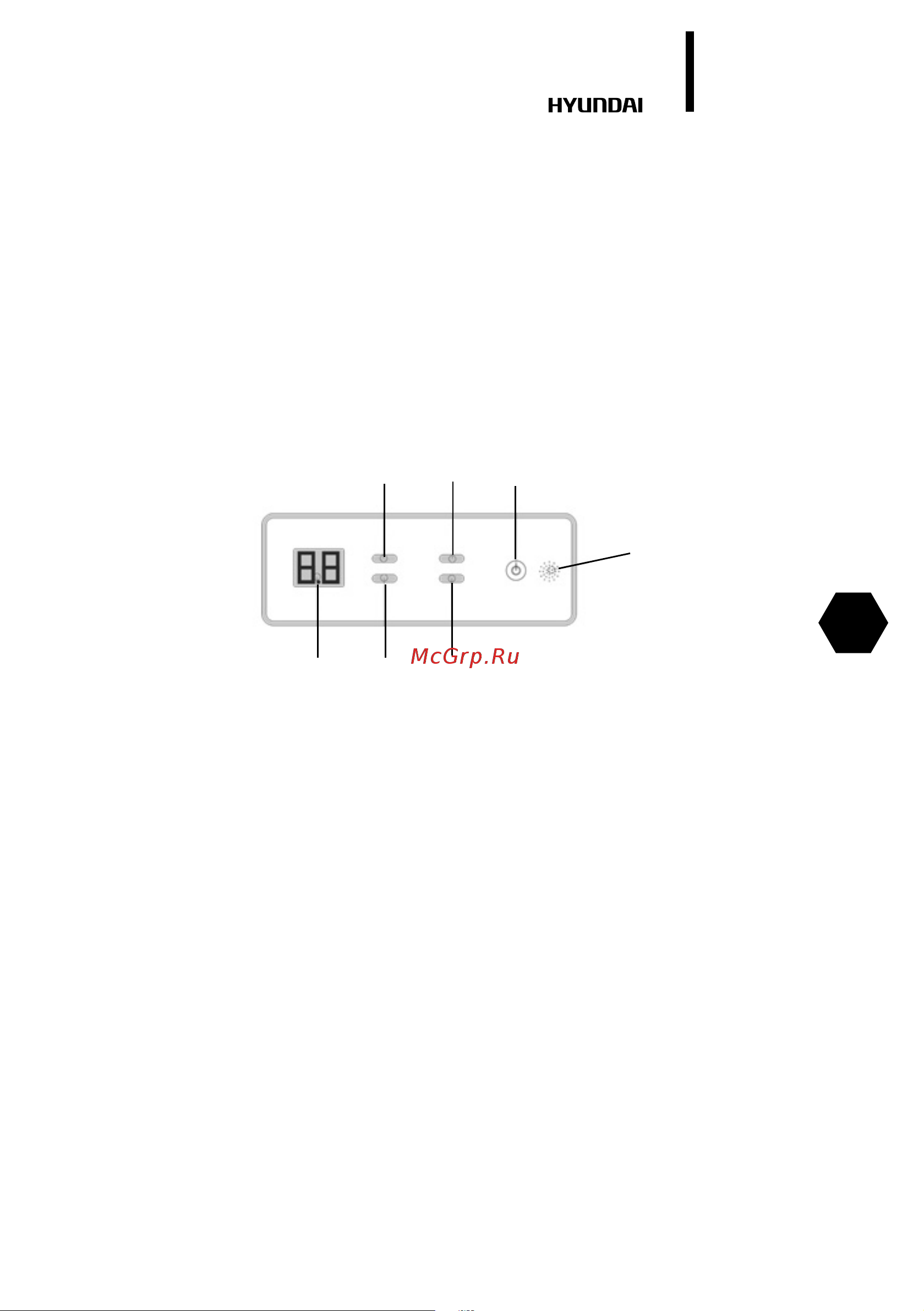

Fig. 2. Description of indoor unit control board

RUN

DEFROST

TIMER

FAULT

Operation

indicator

Temperature Indicator

defrosting/pre-

heat light

Warning light

Timing Light

On./O.

Infrared

signal

receiver
