1-1. Hybrid system
UK_AURIS_HV_EE

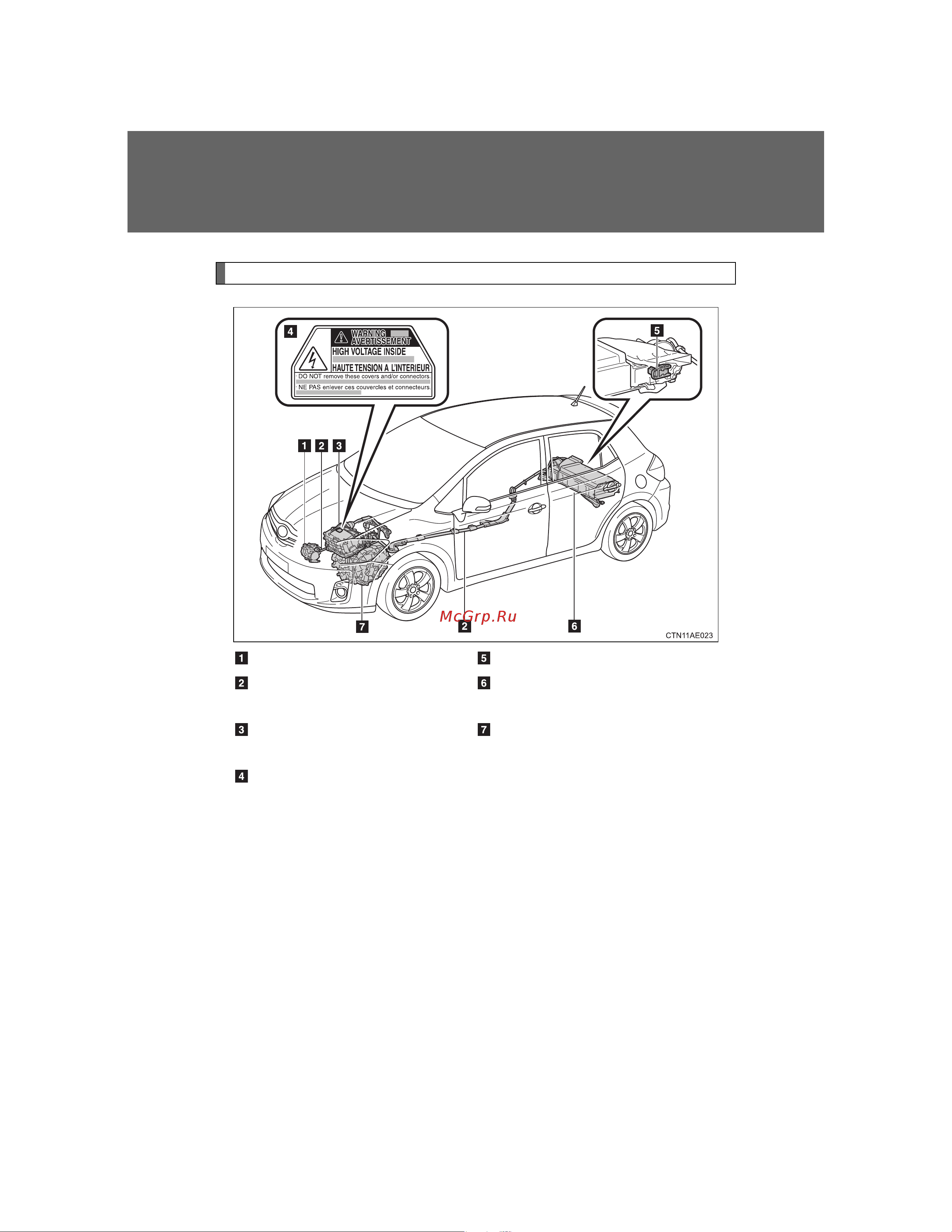

High voltage components
Take care when handling the hybrid system, as it contains a high volt-
age system (about 650 V at maximum) as well as parts that become
extremely hot when the hybrid system is operating. Obey the caution
labels attached to the vehicle.
Air conditioning compressor
High voltage cables
(orange color)
Power control unit and
DC/DC converter
Caution label
Service plug
Hybrid battery
(Traction battery)
Electric motor
(Traction motor)
