6-1. Rear view monitor system

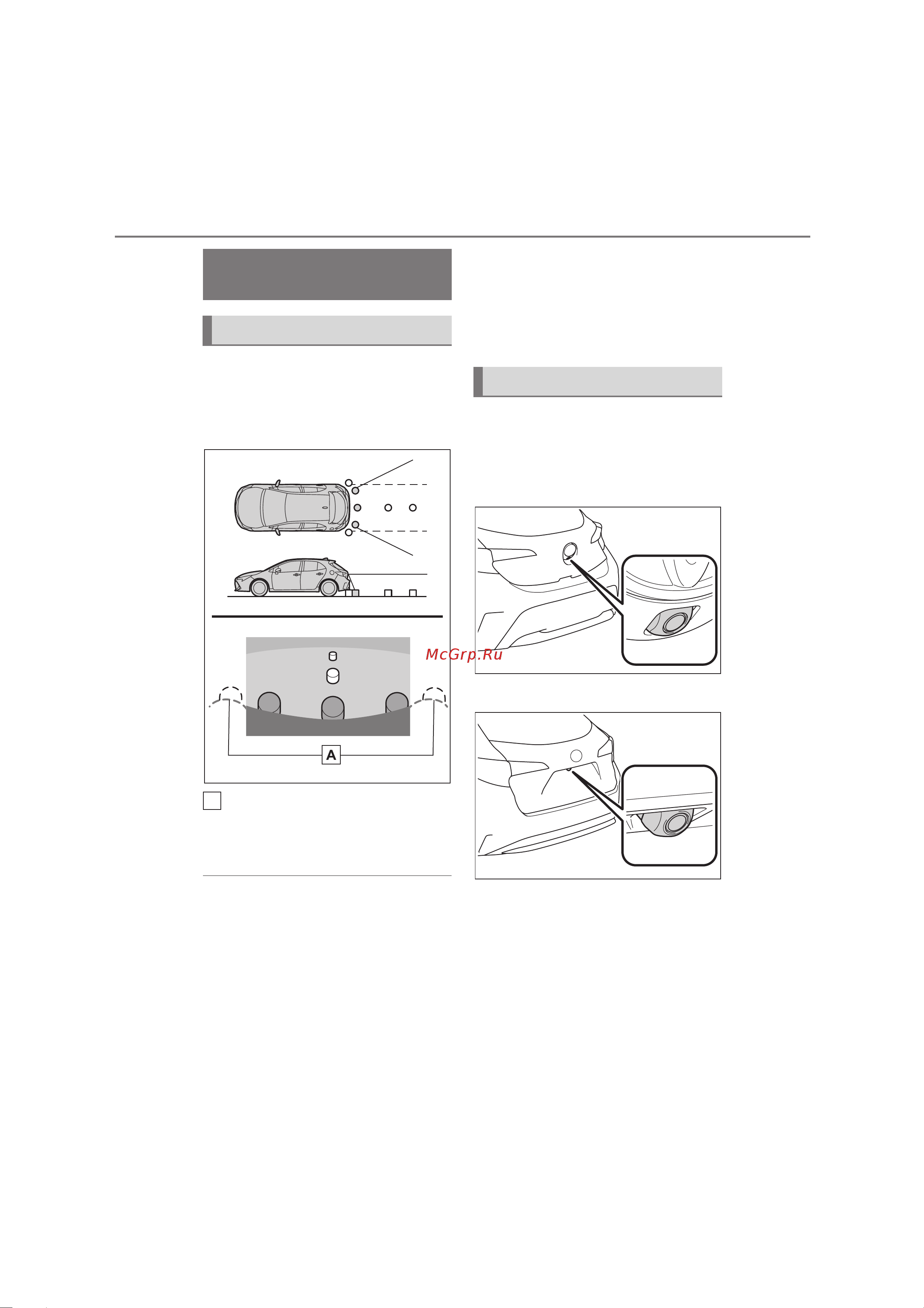

The rear view monitor system dis-
plays an image of the view from the
bumper of the rear area of the vehi-
cle.
Corners of bumper
The area around both corners of
the bumper will not be displayed.
●
The image adjustment procedure for
the rear view monitor system screen
is the same as the procedure for
adjusting the screen. (P.3 2 )
●
The area displayed on the screen may
vary according to vehicle orientation
conditions.
●
Objects which are close to either cor-
ner of the bumper or under the
bumper cannot be displayed.
●
The camera uses a special lens. The
distance of the image that appears on
the screen differs from the actual dis-
tance.
●
Items which are located higher than
the camera may not be displayed on
the monitor.
The camera for the rear view moni-
tor system is located as shown in
the illustration.
Hatchback
Wagon
■
Using the camera
If dirt or foreign matter (such as
water droplets, snow, mud, etc.) is
adhering to the camera, it cannot
transmit a clear image. In this case,
flush it with a large quantity of water
and wipe the camera lens clean
with a soft and wet cloth.
Rear view monitor sys-
tem precautions
Area displayed on screen
A
The camera
