VISTA COC

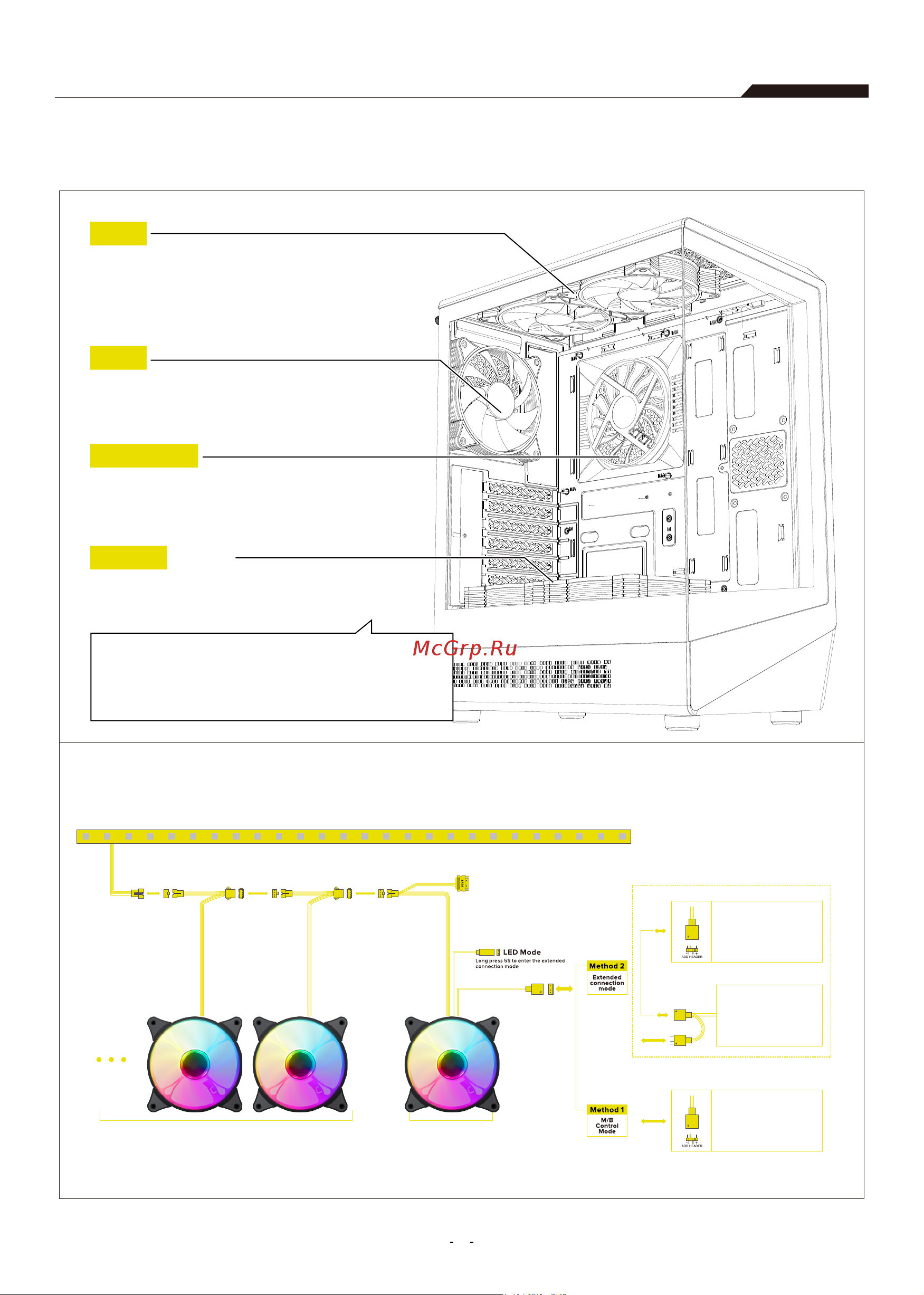

Cooling Fan and Liquid Cooling System Installation

Einbau von Kühlgebläse und Kühler / Instalação de ventilador e radiador / Установка охлаждающего

вентилятора и радиатора / 散热风扇与一体式水冷安装

ARGB-Lüfteranschluss-Anleitung / Instruções de conexão do ventilador ARGB / Инструкция по подключению вентилятора ARGB

/ ARGB风连接说明

ATX COMPUTER CASE

120mm Fan x1 (included)

120mm Liquid cooling system (optional)

140mm COC Turbo Fan x1 (included)

Rear

120mm Fan x2 (included) or 140mm Fan x2(optional)

240mm(RAM Height≤30mm)

Liquid cooling system (optional)

Top

M/B

120mm Fan x2 (included)

Bottom

Recomenda-se usar um ventilador anti-lâmina na parte inferior.

Рекомендуется использовать вентилятор с антилопастями внизу.

推荐底部使用反叶风扇

It is recommended to use a reverse blade fan at the bottom.

Es wird empfohlen, unten einen Anti-Blade-Lüfter zu verwenden.

ARGB Fan Connection Instruction

Fan Model: FN12A-MQ2Fan Model: FN12A-SQ2

FN12A-SQ2-R

LED Strip

How extend to connect?

Link to ADD_Header

on Motherboard

Link to available for

5V 3pin M/F ARGB

accessories

(Liquid cooler or fan)

Link to ADD_Header

on Motherboard

SATA to PSU

Link to LED SW

Connect

5V 3pin ARGB Header

Subordinate Fan Master Fan

(Build-in ARGB HUB Function)

Connect
