V5.0 PWM ARGB HUB - V5.0 PWM ARGB HUB - V5.0 PWM ARGB HUB - V5.0 ШИМ ARGB-КОНЦЕНТРАТОР - V5.0 PWM ARGB控制盒

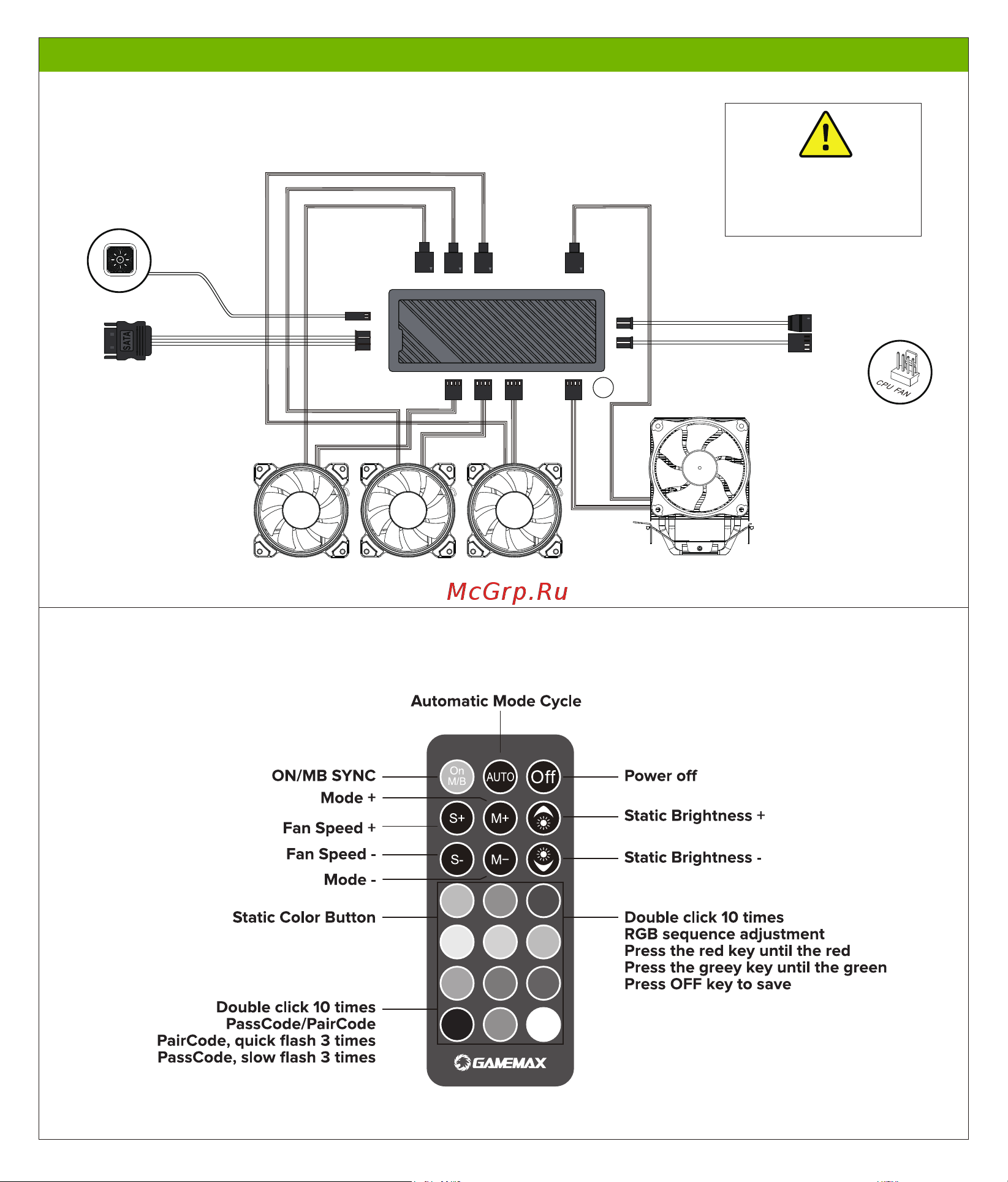

PWM ARGB HUB DEMO LINK GUIDE

REMOTE CONTROL BUTTON FUNCTION

5V 3pin AURA Cabel

CPU Cooler Fan

Link 1st PWM Port(Red)

ARGB

SATA Power input

Link LED SW or RESET Button,

Manual ARGB Control

PWM

(Red)

PWM TEMP Cable

Link to CPU Fan socket

Please do not plug in the

wrong power interface,

otherwise it will burn out

equipment!

FAN1FAN2FAN3FAN4FAN5FAN6

4P1

LED-KEY1

12V GND 5V

POWER

4P2 4P3 4P4 4P5 4P6

PC-IN1

1026 V2.0

PWM

ARGB

RESET

MBFB

5V 12V

POWER

ARGBARGBARGBARGBARGB

PWM PWM PWM PWM PWM PWM
