END-OF-LIFE DISPOSAL
This device is marked in compliance with the Eu-
ropean Directive 2012/19/EC - UK SI 2013
No.3113, Waste Electrical and Electronic Equip-
ment (WEEE). Make sure that this product is di-
sposed of correctly. The user helps prevent po-
tential negative consequences for the environ-
ment and for health.
The symbol on the product or accompanying
documentation indicates that this product should not be
treated as household waste but should be handed over at a
suitable collection point for the recycling of electrical and
electronic equipment. Dispose of it in accordance with local
regulations for waste disposal. For further information
about the treatment, recovery and recycling of this product,
please contact your local authority, the collection service
for household waste or the shop from where the product
was purchased.
REGULATIONS
Equipment designed, tested and manufactured in
compliance with safety regulations: EN/IEC 60335-1; EN/
IEC 60335-2- 31, EN/IEC 62233. Performance: EN/IEC
61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC
60704-1; EN/IEC 60704-2-13;EN/IEC 60704-3; ISO 3741;
EN 50564; IEC 62301. EMC: EN 55014-1; CISPR 14-1; EN
55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC
61000-3-3.
USE
The extraction system can be used in the duct-out version
with external evacuation, or in the recirculating version with
filtering and internal recirculation.
● Duct-Out Version:
Vapours are evacuated outside through an exhaust pipe
attached to the connecting flange.
CAUTION! If the product features one or more carbon
filters, they must be removed.
Connect the product to wall-mounted exhaust pipes and
holes with a diameter equivalent to the air outlet
(connecting flange).
The use of pipes and outlet holes in the wall with a smaller
diameter will reduce the extraction performance and
drastically increase the noise level.
All responsibility in this regard is therefore denied.
• Use a ducting pipe with the shortest length necessary.
• Use a ducting pipe with the least number of bends
possible (maximum bend angle: 90°).
• Avoid drastic changes in the ducting pipe diameter.
● Recirculating Version:
The suctioned air will be degreased and deodorised before
it is sent back into the room. To use the product in this
version, it is necessary to install an additional activated
carbon filter system.
ASSEMBLY BEFORE INSTALLATION
• Check that the product is the right size for the installation
area.
• Remove the activated carbon filter(s) if supplied (see also
relevant paragraph).
• It(they) must be reinstalled if the product is used in the
filter version.
• If there are panels and/or walls and/or wall units on the
sides, make sure that there is enough space to install the
product and that it is always possible to access the control
panel easily.
• The product is equipped with fixing plugs suitable for most
walls/ceilings. However, it is necessary to consult a
qualified technician to make sure that the materials are
suitable for the type of wall/ceiling. The wall/ceiling must be
strong enough to support the weight of the hood.
OPERATION
Please note! This hood features an automatic operation
system (see the paragraph "VOC sensor calibration").
Calibration occurs automatically each time the hood is
reconnected to the electrical network (e.g.: the first time it is
installed after a blackout). It can also be performed
manually (see the paragraph "VOC sensor calibration -
manual").
During calibration, which lasts 5 minutes, the controls will
flash and only the light button can be used.

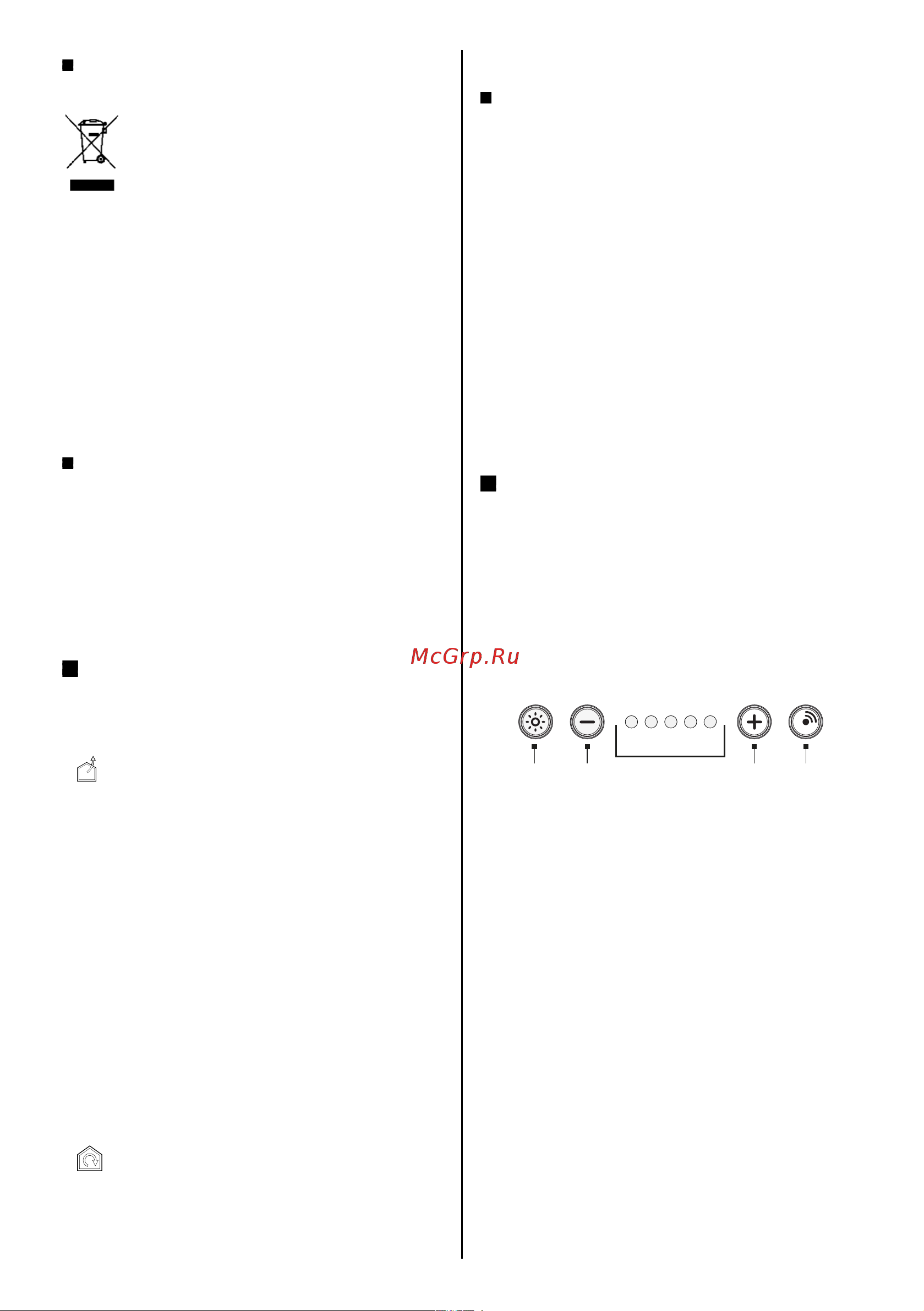

T1 T2
L1
L3
L5
L2
L4
T3
T5
T4
T1= LIGHTS ON/OFF.
T2= Motor OFF or Reduce speed (e.g.: from 4 to 1).
From whichever position the hood is in, pressing the key for
3” switches off the motor.
T3= Increase suction speed.
Press T3 to switch the hood on at speed 1, keep pressing
the key to increase the motor speed from speed 2 to
intensive. Press and hold the key for 3” to automatically
activate INTENSIVE speed.
With each speed, the respective LED lights up.
Speed 1 LED L1
Speed 2 LED L2
Speed 3 LED L3
Intensive speed LED L4 (flashing).
Intensive speed is timed. Standard timing is 5’, after which
the hood switches to speed 3.
To deactivate the function before the time expires, briefly
press T2; the hood will switch to speed 3.
To switch off the motor, press and hold key T2 for 3”.
T4= Sensor ON/OFF. Activates or deactivates the VOC
7
