Ermenrich NetGeeks NP60 Optical Wire Tracker

The kit includes: transmitter, receiver, RJ11 patch cord, RJ45 patch cord, alligator clip, Type-C USB cable, DC cable, earbuds, carry bag,

user manual, and warranty.

Charging the device

The transmitter and the receiver use rechargeable lithium polymer batteries. Connect the Type-C USB cable to the device and the DC

adapter via a USB plug and connect it to the AC power supply to charge the device.

Getting started

Transmitter

Press and hold the power button (6) for 3 seconds to turn the transmitter on/o.

Press the OK button (7) to enter the menu, press the Up (8) and Down (9) buttons to scroll the menu. Press the OK button (7) to

conrm the selection. Press the Back button (10) to return.

Receiver

Press and hold the power button (22) for 3 seconds to turn the receiver on/o.

The default mode is the digital detection mode.

Blue triangles on the screen indicate the selected items. Green triangles on the screen point at the device ports for cable connection.

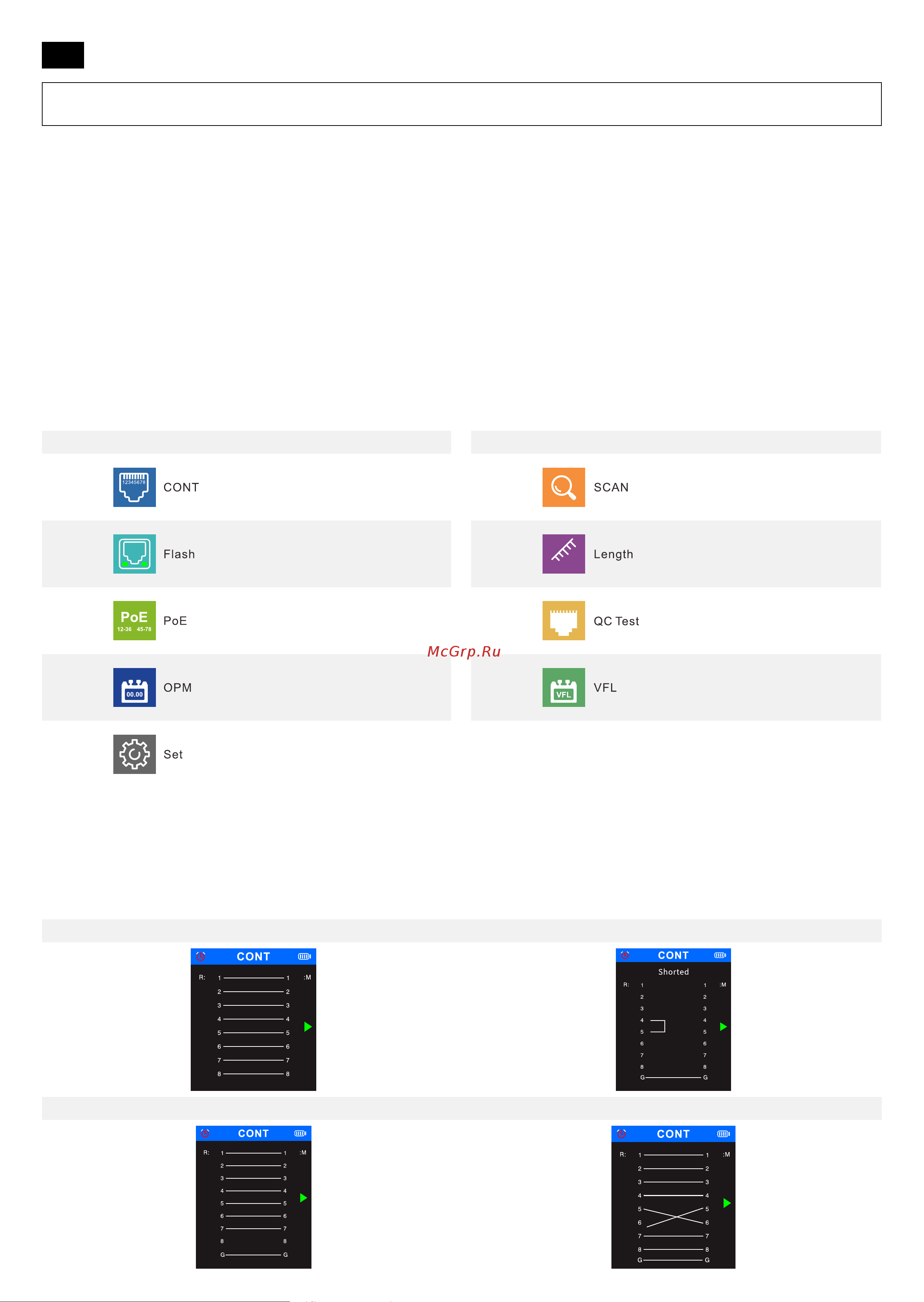

Display information

Display icons Function Display icons Function

Wire mapping Cable tracing

Port Flash Cable length measurement

PoE test Cable crimping quality check

Optical power meter Visual fault locator

Settings

Wire mapping

This function is used to check if the wires within the cable are connected correctly.

1. Plug one end of the cable into the QC/CONT port (5) on the transmitter and the other end into the RJ45 port (24) on the receiver.

2. Select CONT (Wire mapping) in the main menu, choose the required cable type, and press the OK button (7).

Possible outcomes are shown below:

Normal Short

Open Cross

Please carefully read the safety instructions and the user manual before using this product. Keep away from children. Use the device only as

specied in the user manual.
