Cable tracing
This function is used to locate the target cable in a cable bundle.
1. Plug the loose of the cable into the RJ45 SCAN port (7) on the transmitter. Use the wire with alligator clips, if required.
2. Select SCAN (Cable tracing) in the main menu andpress the OK button (3).
3. Choose the required mode (Digital mode, Analogue, or PoE mode) on the transmitter.
4. Set the required mode on the receiver (Digital mode to match Digital and PoE modes on the transmitter; and Analog mode to match
the Analoge mode on the transmitter).
5. Place the receiver near the cable bundle and move the receiver along the cable to trace it. When the sensor is in the close proximity
to the target cable, the receiver will emit a beeping sound. To detect the cable more accurately, lower the sensitivity. The closer the
device is to the object, the louder the signal will be.
!
If the modes of the transmitter and of the receiver do not match, the receiver will not emit a sound, even if it touches the target
cable.
PoE test
This function is mainly used to dene the power consumption by a PoE powered device. It also helps to identify the pins that provide PoE,
the PSE type (standard or non-standard), polarity, mode, and voltage.
1. Plug one end of the PoE cable into the PoE port (9) on the transmitter and the other end into a port of the PoE source equipment
(such as a network switch, router, etc.).
2. Select PoE (PoE test) in the main menu and then press the OK button (3).

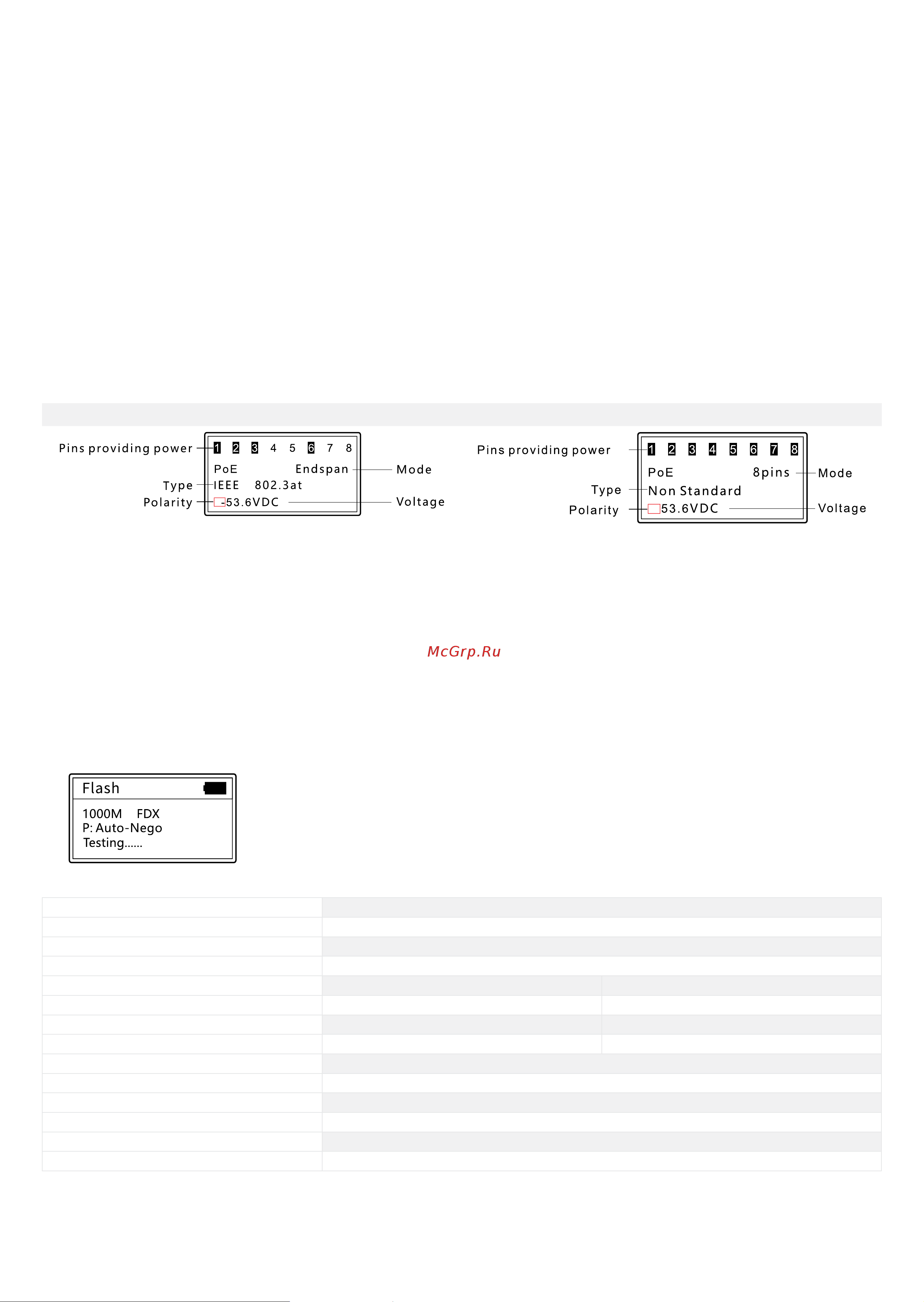

Possible outcome is shown below:
Standard PSE Non-standard PSE
!
If all 8 pins provide power, the voltage polarity is not displayed.
Port Flash function
This function is used to locate an exact port on a network switch or on a router to which the tested cable is connected.
1. Plug the loose end of the network cable to the Length/Flash port (10) of the transmitter; the other cable end is connected to a PoE
source equipment (such as a network switch, router, etc.).
2. Select Flash (Port Flash function) and press the OK button (3).
3. Select the required frequency for the indicators to ash.
The circle on the display and LEDs under the Length/Flash port (10) will ash with the same frequency as the LED of the target port, and
dierent from the other LEDs.
The corresponding specication will be displayed on the screen: data exchange speed (10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s);
transmitting mode (full duplex or half duplex), and data protocol (Auto-Negotiation or Non-Auto-Negotiation).
Possible outcome is shown below:
Specications
Tracing cable types STP/UTP (CAT5E, CAT6, CAT6A) network cable, telephone cable, common wires
Testing cable types STP/UTP (CAT5E, CAT6, CAT6A) network cable
Cable length measurement range 2.5–200m
Max. distance of cable tracing 600m
PoE test PSE type test standard (IEEE 802.3at/af) / non-standard
Midspan/endspan identication +
DC voltage measurement range 5–60V
Voltage polarity detection +
Wire mapping +
Port Flash function +
Backlight 15s, 30s, 1min, OFF
Auto-o 15min, 30min, 1h, OFF
Operating temperature range –10… +60°C / +14… +140°F
Power supply transmitter: 3pcs alkaline AAA batteries; receiver: 1pc 9V battery
The manufacturer reserves the right to make changes to the product range and specications without prior notice.
