Ermenrich Reel GE40/GE60/GE80/GE100 Laser Meter

The kit includes: laser meter, lanyard, user manual, and warranty.

Getting started

Open the battery compartment cover and insert 2 AAA batteries according to the correct polarity. Close the cover.

Usage

Press (4) to turn the device on. The laser beam will switch on automatically and then o aer 30 seconds. To switch it o manually, press (7).

Aim the laser beam at the target. Press (4) to take a measurement.

Press (7) for 3 seconds to turn the device o.

Reference point

The default reference point is the bottom end of the device. Press (10) to change the measurement point from the bottom to the top of

the device (Fig. A).

Figure A

Units of measurement

Press (5) for 3 seconds to change the unit of measurement.

Units of measurement options

Distance Area Volume Angle

1 0.000m 0.000m

0.000m

000'00"

2 0.00 0.00

0.00

3 0.0in 0.0in

0.0in

Mode selection

Press (8) to change the measurement mode one by one.

The setting order: Single distance measurement mode > Area measurement mode > Volume measurement mode > Calculations with

2 additional measurements (Pythagorean theorem) > Calculations with 3 additional measurements (Pythagorean theorem), method 1 – legs

summation > Calculations with 3 additional measurements (Pythagorean theorem), method 2 – legs subtracting.

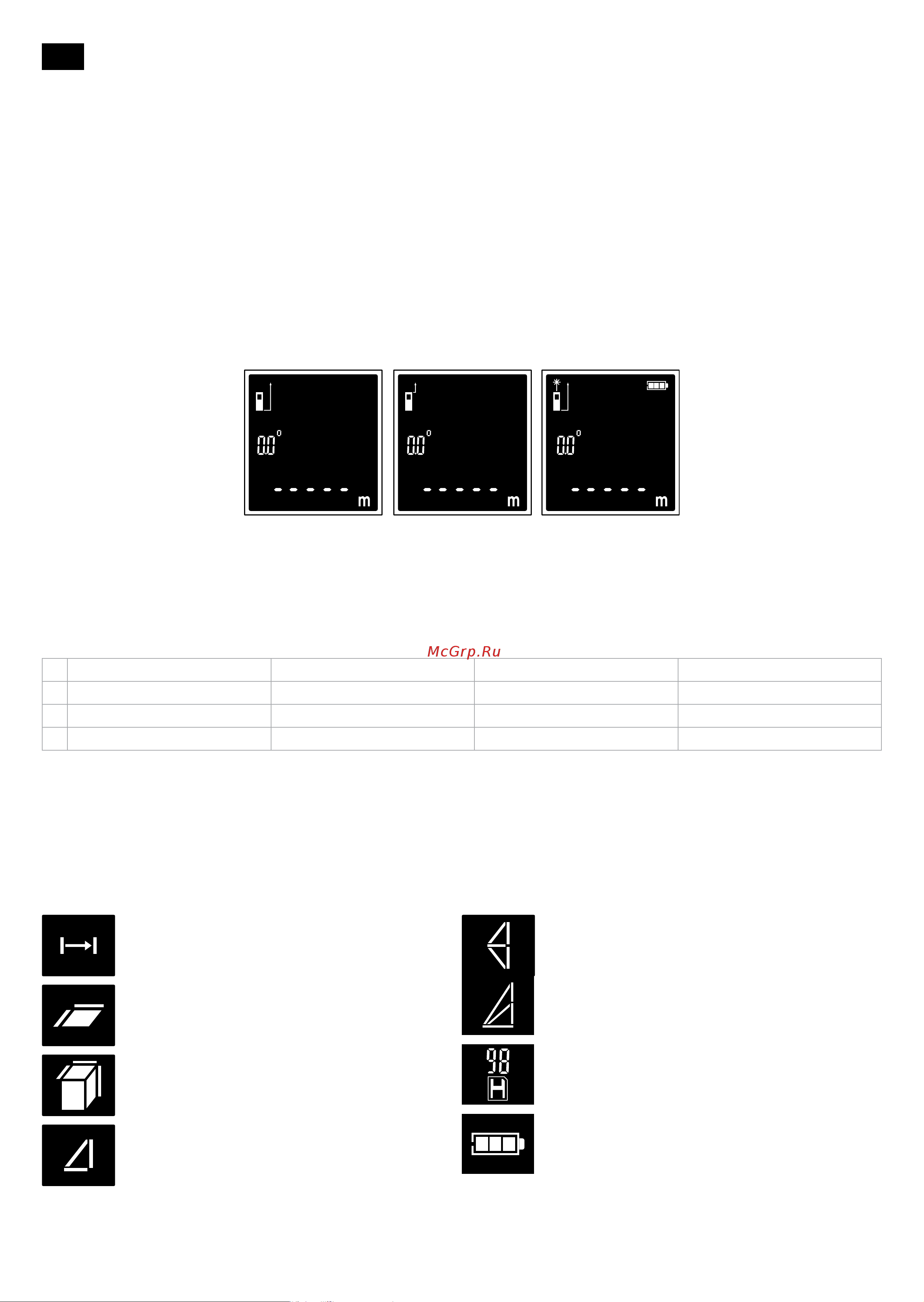

Display information

Single distance measurement mode

Calculations with 3 additional measurements

(Pythagorean theorem), method 1 – legs

summation

Area measurement mode

Calculations with 3 additional measurements

(Pythagorean theorem), method 2 – legs

subtracting

Volume measurement mode History records

Calculations with 2 additional measurements

(Pythagorean theorem)

Battery status
