G Operating instruction

Thank you for choosing aHama product.

Take your time and read the following instructions and information completely.Please keep

these instructions in asafeplace for futurereference. If you sellthe device, please pass

these operating instructions on to the new owner.

1. Explanation of WarningSymbols and Notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specic

hazards and risks.

Note

This symbol is used to indicate additional information or important notes.

2. Package Contents

• TV wallbracket

• Drilling template

• Installation kit (see contents, Fig. 1)

• These operating instructions

Note

Please check that the installation kitiscomplete beforeinstalling the bracket and ensure

that none of the parts arefaulty or damaged.

3. Safety Notes

Warning

• Given the multitude of terminal devices and wallstructures available on the market,

the supplied mounting kit is unable to cover every option.

• It occasionally happens that the screws for attaching theterminal device to thewall

bracket aretoo long.

• Please note that the supplied wallplugs arefor use with concrete brick and solid

brick walls only.

• Read the operating instructions for your terminal device beforeattempting to mount

it. The instructions provide information about thetype and measurements of suitable

fastening materials.

• If the supplied mounting kit does not contain suitable fasteningmaterialsfor

mounting the terminal device, purchase these from aspecialised dealer.

• If the wallonwhich the bracket is to be mounted is made of different material types

and construction types to thosespecied, purchase suitable mounting materials from

aspecialised dealer.

• Never apply force during mounting. This can damageyour end deviceorwallbracket.

• If in doubt, have this product mounted by aqualied technician -donot attempt to

mountityourself!

• Do not mount the product above locations wherepersons might linger.

• Once you have mounted the product and the attached load, check that they are

suciently secureand safe to use.

• Youshould repeat this check at regular intervals(at least every three months).

• When doing so, ensurethat the product does not exceed its maximum permitted

carrying capacity and that no load exceeding the maximumpermitted dimensions is

attached.

• Make surethat the product is loaded symmetrically.

• During adjustment, ensurethat the product is loaded symmetrically and that the

maximum permitted carrying capacity is not exceeded.

• Maintain the necessary safety clearance around the attached load (dependingonthe

model).

• Inthe event of damage to the product, remove the attached load and stop using the

product.

4. Intended use and specifications

• The bracket is used for wallmounting at panel displaysfor non-commercial, private

household use.

• The bracket is only intended for use within buildings.

• Use the bracket only for the intended purpose.

Maximum load bearing capacity: 30 kg

Screen size:

81.0 -165.0 cm (US: 32" -65")

Depth: 2.5 -41.0 cm

Angle: –/+ 6°

Pivoting range:

up to 180° on 3joints (depends on the device)

Wall mounting plate dimensions:24.0 x30.1 cm

Mounting holes: according to the VESA standarduntil 400x400

5. Installation requirements and installation

Note

• Only mount the TV wallbracket with the help of asecond person. Get the support

and help you need.

• Different end devices havedifferent options forconnecting cables and other devices.

Beforeinstallation, ensurethat the necessary connections willstillbeaccessible

after installation.

• The same mounting kit is included with allofour TV wallbrackets. Depending on

the product and mounting type, youmay not need to use the entiremounting kit.

Unneeded screws and other smallparts may be left over,even if the wallbracket

is properly mounted. Keep these leftover parts with the operating instructions in a

safe place, just in case youmight need them later on (e.g. should you move, sellthe

product, mount the wallbracket in adifferent location, buyanew TV,etc).

Warning

• This product is suitable for wallmounting only.

• Beforeinstalling the bracket, ensurethat the wallonwhich the television is to be

mounted is suitable for the weight and make sure that no electrical wires, water,gas

or other lines arelocated at the installation location.

• Please note that the provided wallanchors areonly approved forconcrete and solid

brick walls.

• Observe the other warnings and safety instructions.

• Proceed step-for-step in accordance with the illustrated installation instructions (Fig.

1ff.).

• Check whether your television is level using the included spirit level. If necessary,adjust

the television plate.

• To adjust the inclination, loosen the side mounting screws slightly,set the desired angle

and retighten the screws securely.

Note

• Given the multitude of terminal devices available on the market, we cannot describe

allpossible mounting options here.

• Please ensurethat the bracket lays at and evenly on the back of the television.

• Use the enclosed spacer to even out any unevenness on the back of the television.

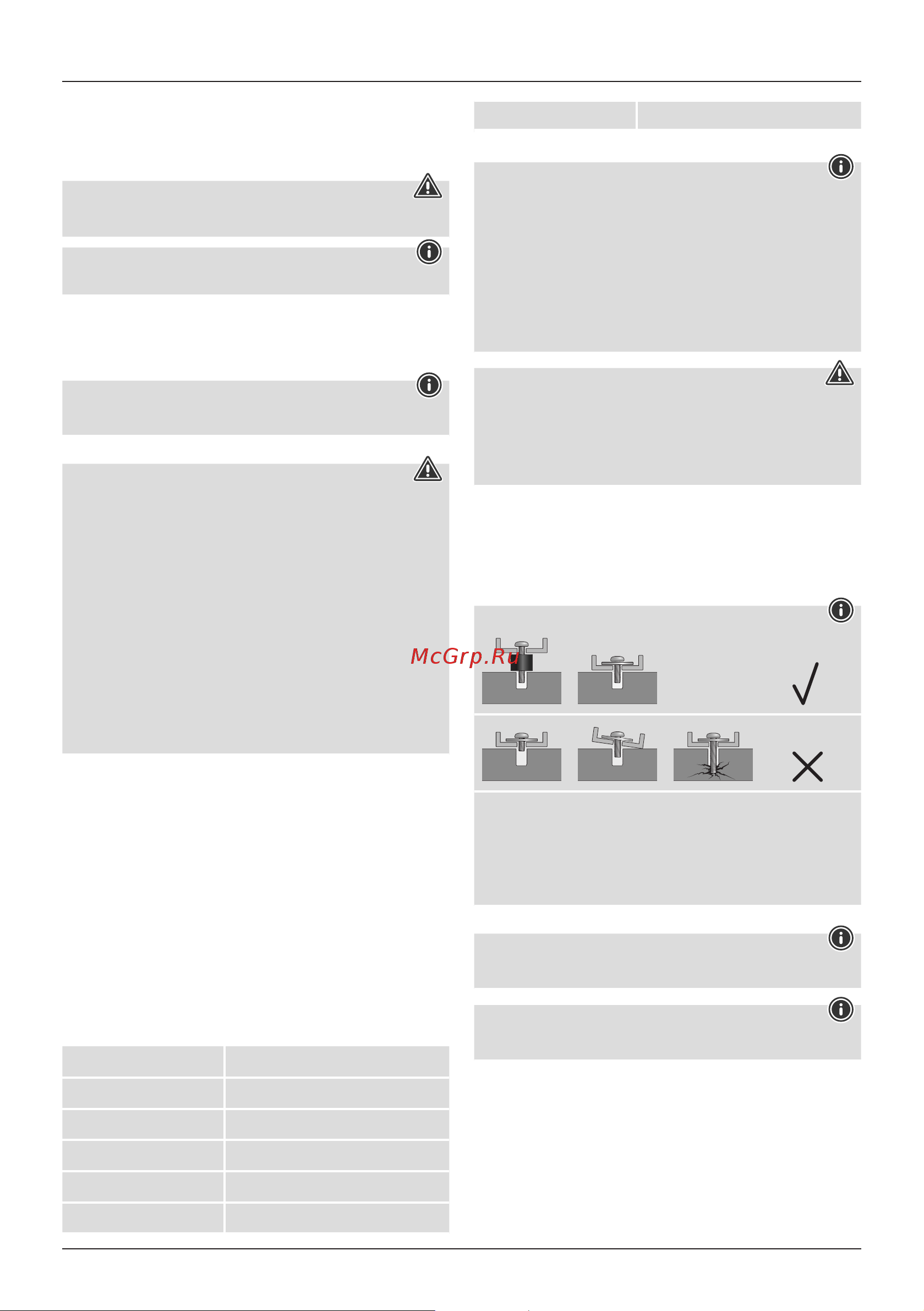

• Ensurethat allscrews have the proper length and can be mounted until they are

hand-tight (see Fig. 4).

6. Setting and maintenance

Note

Only adjust the TV wallbracket with the help of asecond person. Get the support and

help you need.

Note -Adjust inclination

Loosen the side mounting screws slightly,set the desired angle and retighten the screws

securely.

• To secure, hang the TV plate and tighten both of the nuts.

• Check that the bracket is secureand safe to use at regular intervals (at least every three

months). Only use water or standardhouseholdcleaners for cleaning.

7. Warranty Disclaimer

Hama GmbH &CoKGassumes no liability and provides no warranty for damage resulting

from improper installation/mounting, improper use of the product or from failuretoobserve

the operating instructions and/orsafety notes.
