oor head and metal tube.

Assemble the oor head with metal tube assembly and handheld vacuum cleaner: as shown in

the picture, align the conductive needle of the metal tube with the coupler of the suction nozzle,

push up until a “click” sound is heard.(Fig 3)

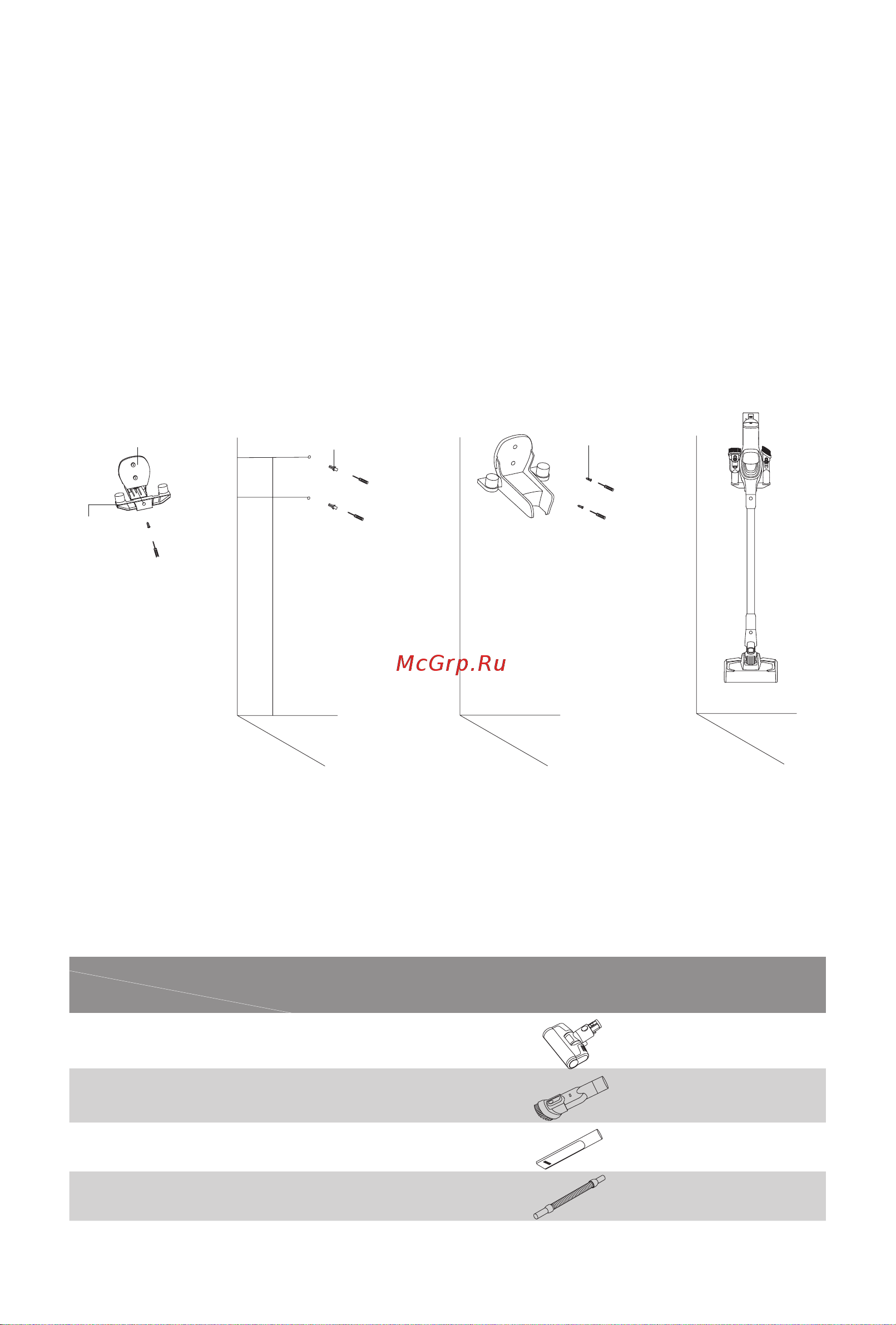

Charging holder assembly

Assemble accessory holders to the charging holer, then fasten accessory holders with screw.

Put the vacuum cleaner in the holder, and lean the vacuum cleaner against the wall, place

the holder in the position that vacuum cleaner floor head does not touch ground. Take off

the handheld vacuum cleaner, place expansion pipe on the wall and place the holder to the

expansion pipe position, then lock in the screw. After assembly completed, put the vacuum to

charger holder to charge or store.

Attention: Do not x the holder to bathroom or other humid wall

46.5cm

Proposed distance

between holder

and oor: 115cm

Accessory

holder

Expansion pipe ScrewCharging holder

JV83 Pro

Electric Mattress Head

Upholstery

tool

Crevice

tool

Stretch hose

Name

Model

Assembly of accessories

For the convenience of use, this product is specially equipped with some accessories for the

hand-held part of the vacuum cleaner. When you use the handheld vacuum cleaner alone,

you can directly connect the accessories according to your needs or connect the accessories

through the stretch hose.
