Charging base

upper

Charging base

lower

Clean water

tank handle

Spline

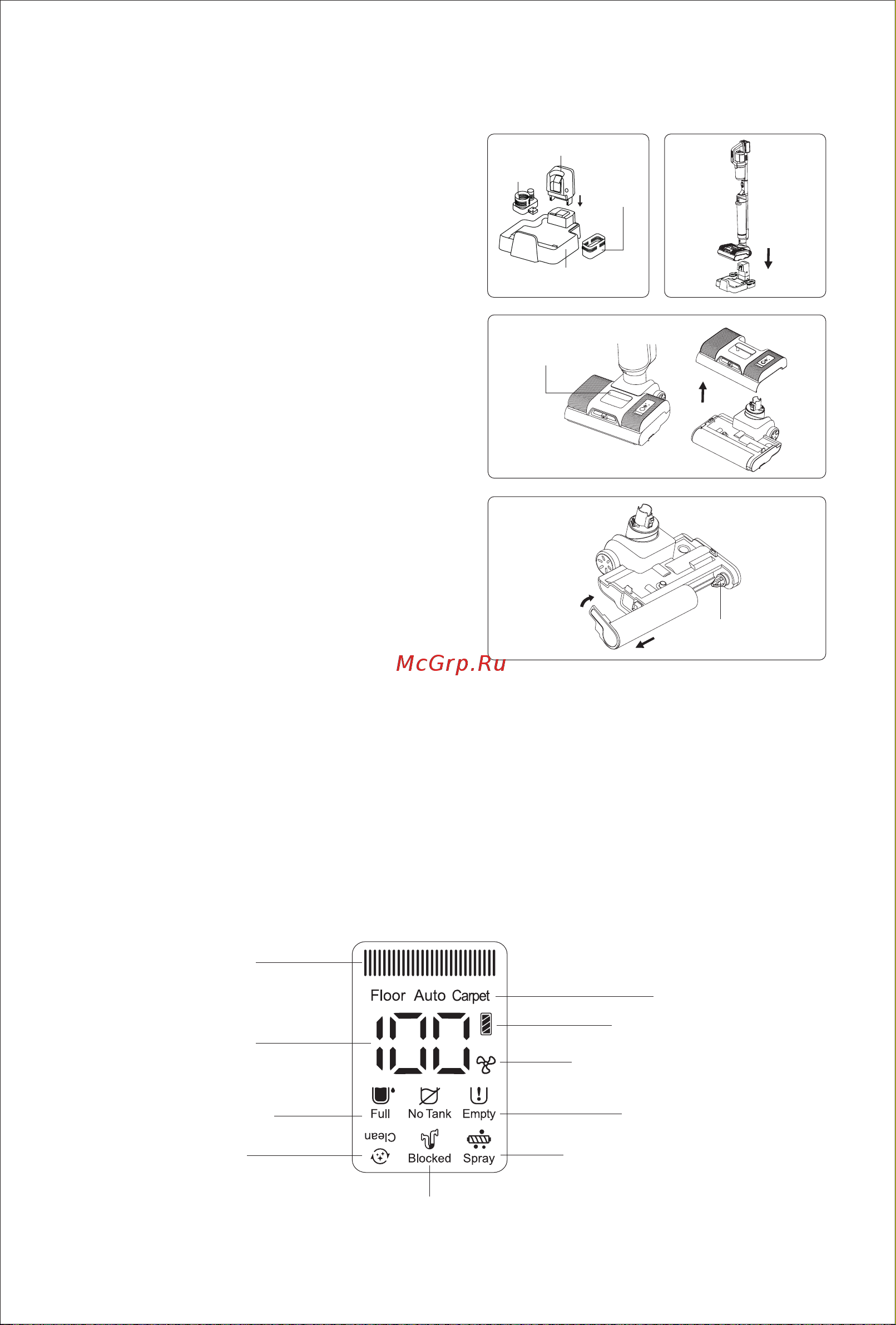

Charging base assembly

Press charging base upper towards charging base lower

as the picture show. After a "click" sound is heard and

clips are located in corresponding holes, the assembly is

completed. (Fig 5)

Machine charging and placement

Place the oorhead in upright position, lift the machine,

align the charging slot at the rear of the machine with the

charging socket on the charging base, and gently place

down the machine into the charging base; To take out the

machine, hold the handheld vacuum handle and directly

pull the machine out of the charging base. (Fig 6)

Clean water tank assembly and

disassembly

To remove clean water tank, hold the clean water tank

handle and pull it upward to remove the clean water tank.

To install clean water tank, place it on oorhead and press

down until a "click" sound is heard. (Fig 7)

Brushroll assembly and disassembly

To remove the brushroll,remove clean water tank rst, and

then press oorhead with one hand, rotate the brushroll

end cap upwards with another hand, and remove brushroll

outwards; When installing the brushroll, first align one

end of the brushroll with the spline, rotate it inward to the

bottom, and then rotate the brushroll end cap in another

end of brushroll to lock the brushroll. (Fig 8)

Chapter 2 Use of the Product

Note: Before use, please check whether the machine has power, if no power, please fully charge the machine

before using it.

LED screen and instructions

Lights indicater

Mode display

Self cleaning

indicator

Battery power

Battery power icon

Dirty water

tank full indicator

Clean water tank

empty indicator

Air path blockage

indicator

Brushroll drying indicator

Auto water spray indicator

Brushroll

housing

Cleaning

solution

housing
