Packing list

Handheld vacuum Mainbody assembly Floorhead Battery pack Charging base upper

1 1 1 1 1

Charging base lower Brushroll housing

Cleaning solution

housing

Upholstery tool Crevice tool

1 1 1 1 1

Cleaning brush Cleaning solution

Electric mattress

head

Power cord Instruction manual

1 1 1 1 1

Battery pack

release button

Floorhead

release button

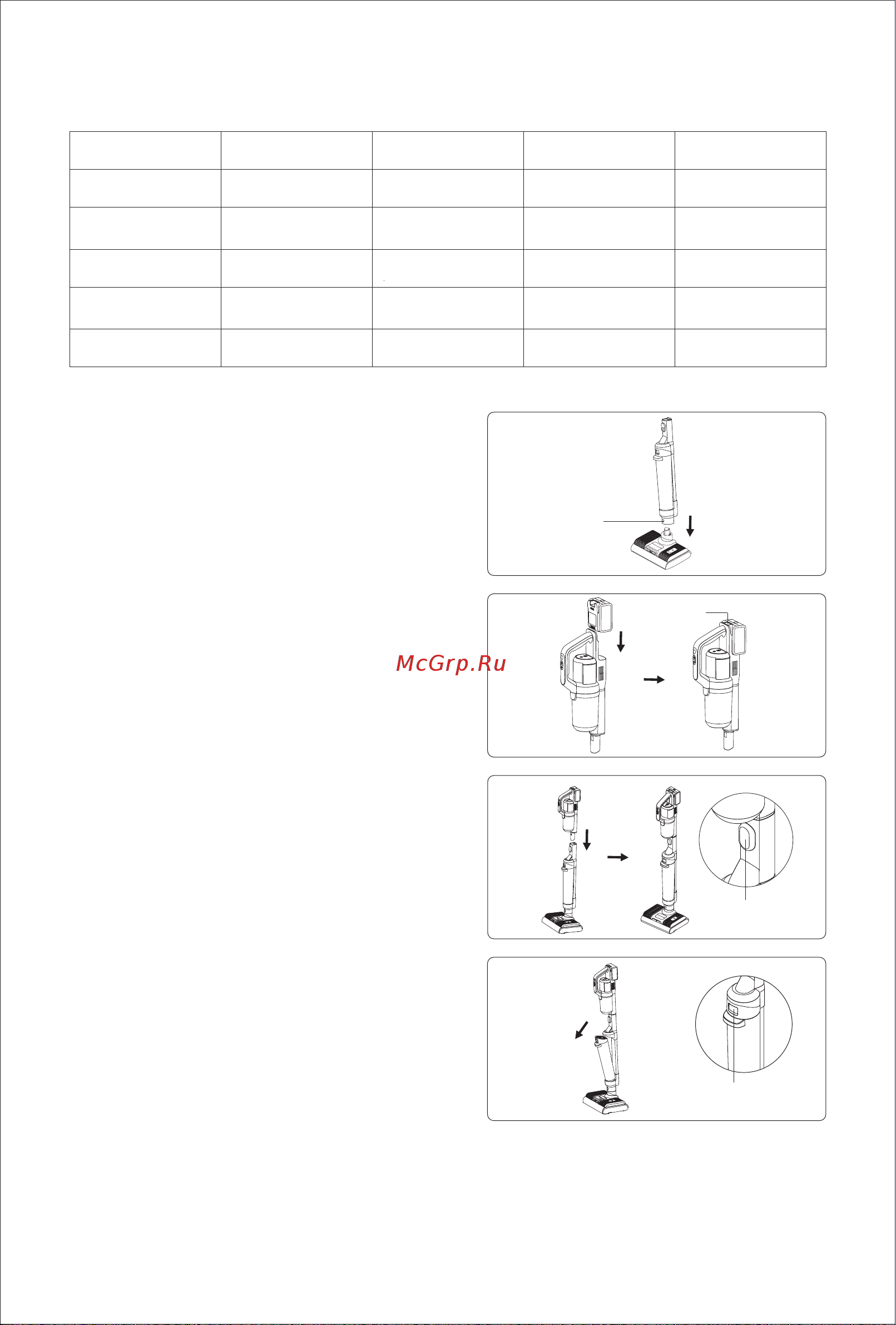

Product assembly and disassembly

Note: Cut off power before disassembling or assembling

the product.

Mainbody assembly and disassembly

When installing the mainbody, insert the end of the

mainbody into floorhead connector vertically until a

"click" sound is heard. Ensure that mainbody is tight and

not loose. To remove the main body, simply press the

oorhead release button and lift the main body upward.

(Fig 1)

Battery pack assembly and disassembly

1.Hold battery and slide down along the leading slot,

press down until a “click” sound is heard.

2.Press battery release button, pull battery pack upward

to take it out.(Fig 2)

Note: No need to take out battery unless it needs

replacement.

Handheld vacuum assembly and

disassembly

Insert the end of the handheld vacuum installed with

the battery pack into mainbody connector vertically

until a "click" sound is heard. Ensure that the handheld

vacuum is tight and not loose.

In this status, the product is used as a cordless vacuum

and washer. To remove the handheld vacuum cleaner

separately, simply press the handheld vacuum release

button and lift it up vertically. (Fig 3)

Dirty water tank assembly and disassembly

To assemble dirty water tank, locate dirty water tank bottom to mainbody tray slot and then push dirty water

tank towards mainbody until a “click” sound is heard. To take out dirty water tank, hold mainbody with one

hand and dirty water tank handle with another hand, press dirty water tank release button with thumb and pull

dirty water tank out. (Fig 4)

Handheld vacuum

release button

Drity water tank

release button
