ENGLISH

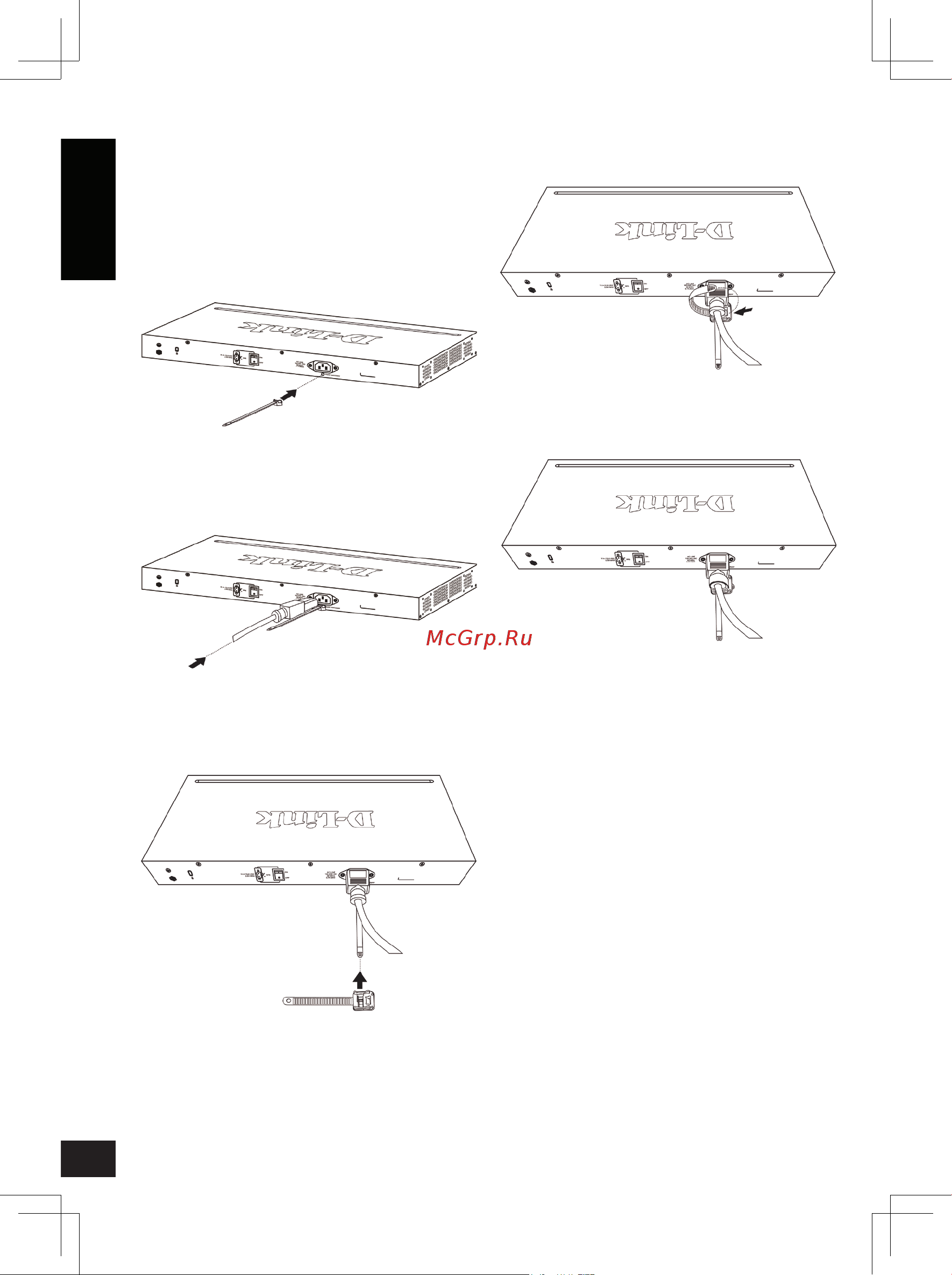

Installing a Power Cord

Retainer

Installation of a power cord retainer is recommended

to prevent accidental removal of the AC power cord.

A. Insert a tie wrap with the rough side facing down

into the hole below the power socket.

Insert tie wrap

B. Connect the AC power cord into the AC power

inlet of the switch.

Connect the power cord to the switch

C. Attach the retainer to the tie wrap and slide it up to

the end of the cord.

Attach the retainer to the tie wrap

D. Wrap the retainer around the power cord and

place the free end into the fastener.

Wrap the retainer around the power cord

E. Fasten the retainer by pulling on it until secure.

Secure the power cord

F. Connect the AC power cord to an electrical outlet.

Connecting the DGS-1016D

to your network

A. Power

The switch can be used with AC power sources 100

- 240 VAC, 50 - 60 Hz. The switch’s power supply

will adjust to the local power source automatically

and may be turned on without having any or all LAN

segment cables connected.

B. Ethernet

These ports support network speeds of 10 Mbps,

100 Mbps, or 1000 Mbps, and can operate in

half-duplex and full-duplex transfer modes. These

ports also support automatic MDI/MDIX crossover

detection, which gives the switch true “plug and

play” capabilities. Just connect any network cable

between the switch and the device, and the switch

will automatically detect the settings of the device and

adjust itself accordingly.
