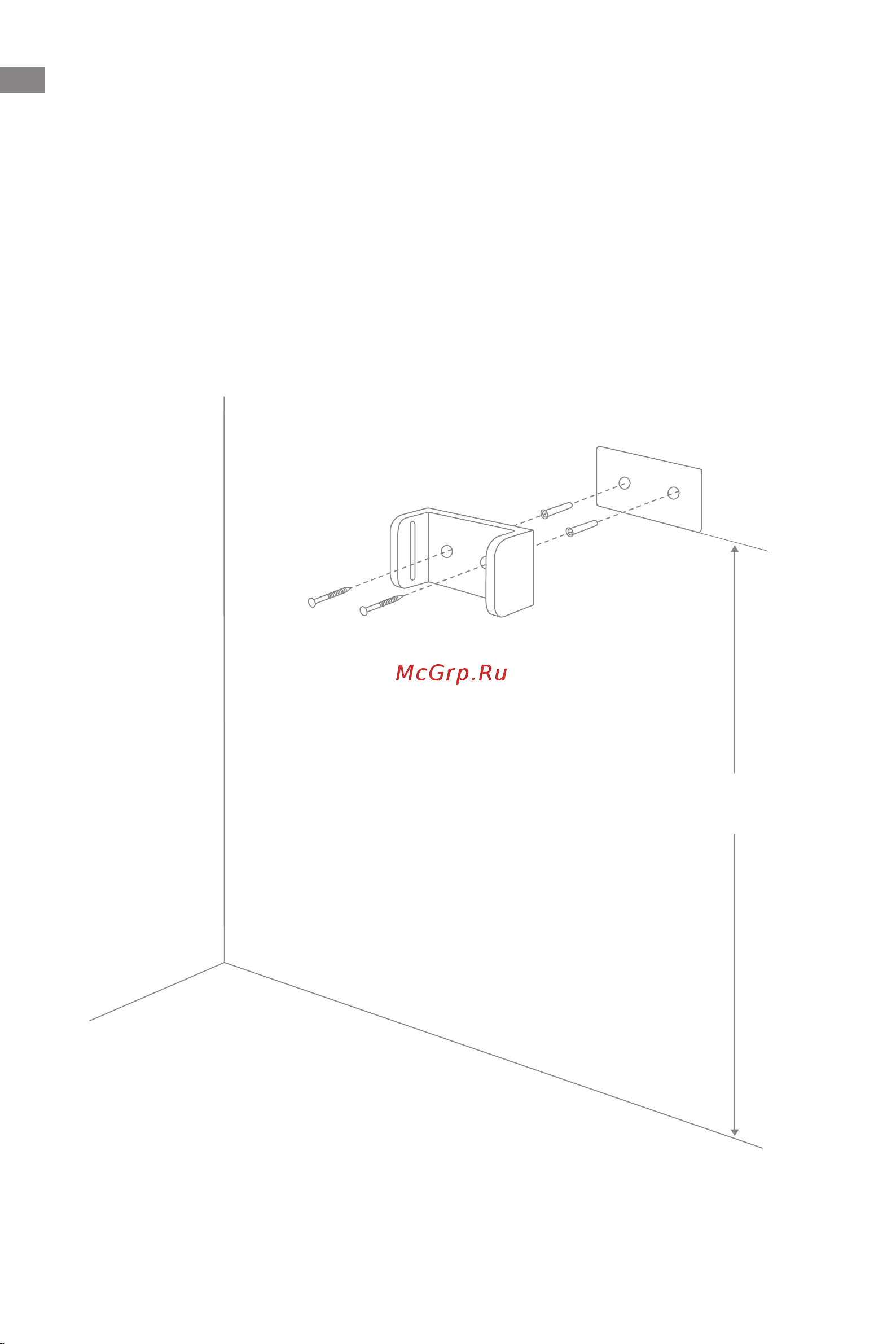

Wall Mount Installation Diagram

Paste the mounting template sticker on the wall. The bottom edge of the mounting template

sticker should be parallel to and about 107 cm from the ground.

Use a power drill with an 8 mm drill bit to drill a hole into each marker on the mounting

template sticker, then insert a wall plug into each hole.

Align the holes on the mount with the holes on the wall. Fasten it to the wall with the

included screws.

Installation

107 cm

Note:

• Thewallmountisanoptionalaccessory.Youcaninstallitbasedonyourneeds.

• Thewallmountshouldbeinstalledonacool,drysurfacewithanelectricaloutletnearby.

Priortoinstalling,ensurethattherearenoelectricalwiresorpipesinthespacedirectly

behindinstallmentposition.
