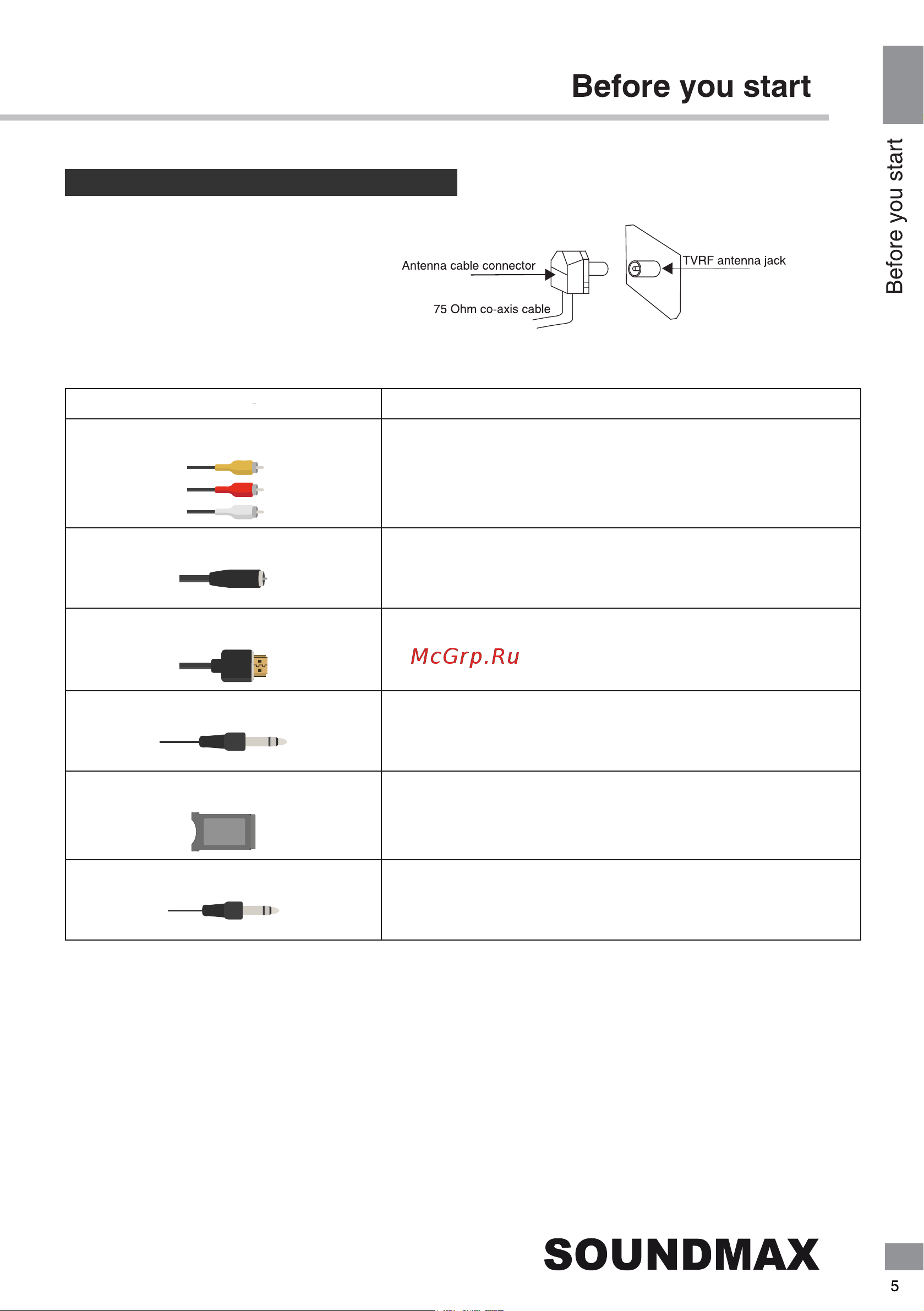

Other connections

Connection

Outdoor antenna connection

Use 75 Ohm cable plug or 300-75 Ohm

impedance converter to plug in antenna input

terminal on the rear of the cabinet.

Connector Connection

Composite audio and video input

Connect the video and audio sources to the composite AV input using

an RCA cable (not included).

Coaxial output

Coaxial SPDIF output is intended for transmitting multichannel sound

to an external decoder (e.g. in 5.1-CH format). For connection use

coaxial cable (not included).

HDMI input

If the video source has an HDMI output jack, you can connect the

signal to the monitor with the HDMI cable (not included).

Component input YPbPr is intended to receive component video

signal from the external device. Connection is made with

the help of a special component cable (not included).

Mini YPbPr input

CI slot PCMCIA (CI) slot is used for CI modules that are obtained from

your digital TV provider.

Earphone output

Connect your earphones (not included) to the earphone socket of the

unit. When earphones are connected, the sound output through the

built-in speakers of this unit is mute.
