Normal

(default)

Boot with the saved

BIOS settings.

Enabled

Apply the BIOS default

settings and lower PCIe

(from CPU) mode for

Safe Boot

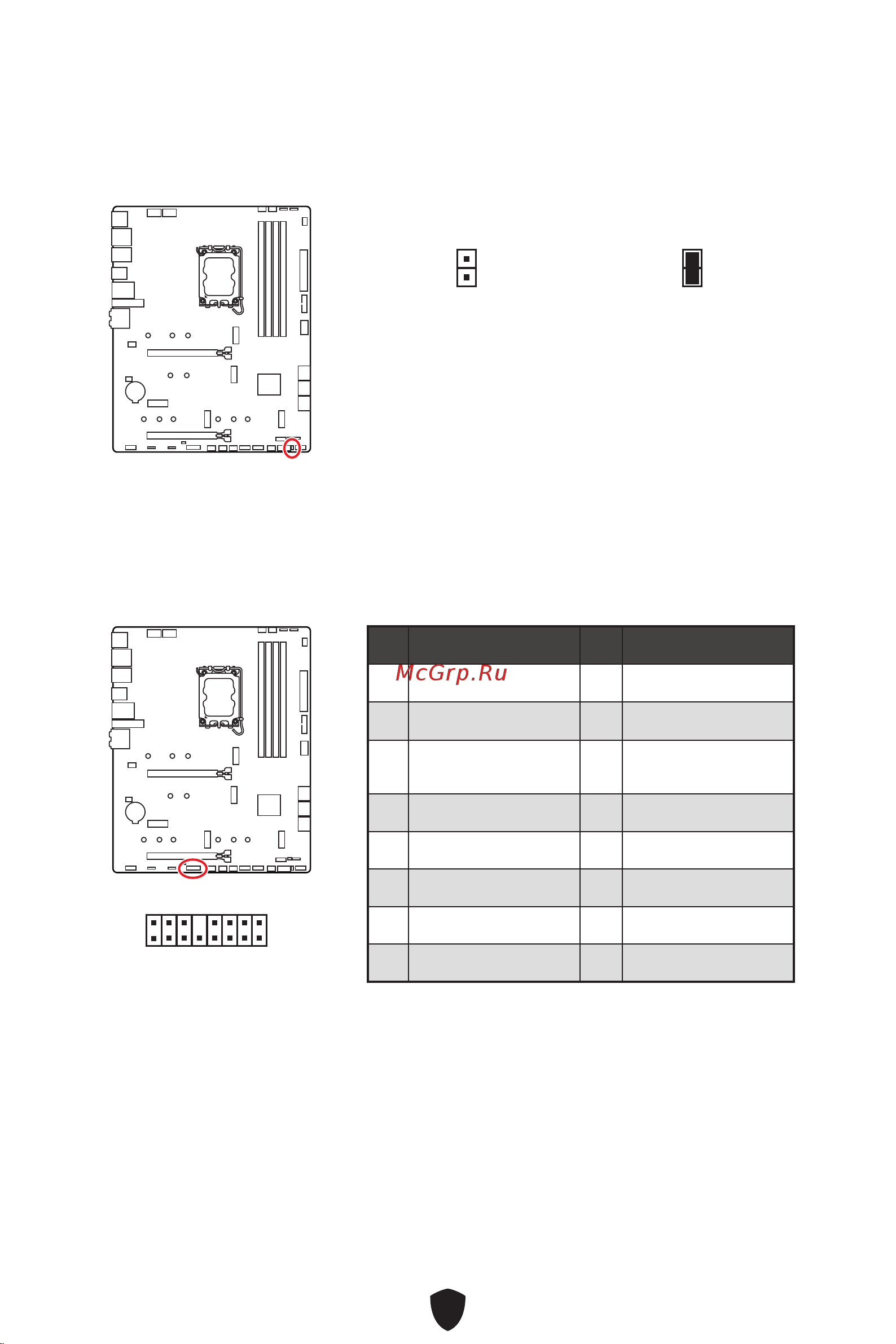

JOC_FS1: Safe Boot Jumper

This jumper is used for Safe Boot. Once enabled, the system will boot with default

settings and lower PCIe (from CPU) mode.

JTBT1: Thunderbolt Add-on Card Connector

This connector allows you to connect the add-on Thunderbolt I/O card.

2 16

Pin Signal Name Pin Signal Name

1 TBT_FORCE_PWR 2 TBT_S0IX_ENTRY_REQ

3 TBT_CIO_PLUG_EVENT# 4 TBT_S0IX_ENTRY_ACK

5 SLP_S3#_TBT 6

TBT_PSON_

OVERRIDE_N

7 SLP_S5#_TBT 8 No Pin

9 Ground 10 SMBCLK_VSB

11 DG_PEWAKE# 12 SMBDATA_VSB

13 TBT_RTD3_PWR_EN 14 Ground

15 TBT_CARD_DET_R# 16 PD_IRQ#
