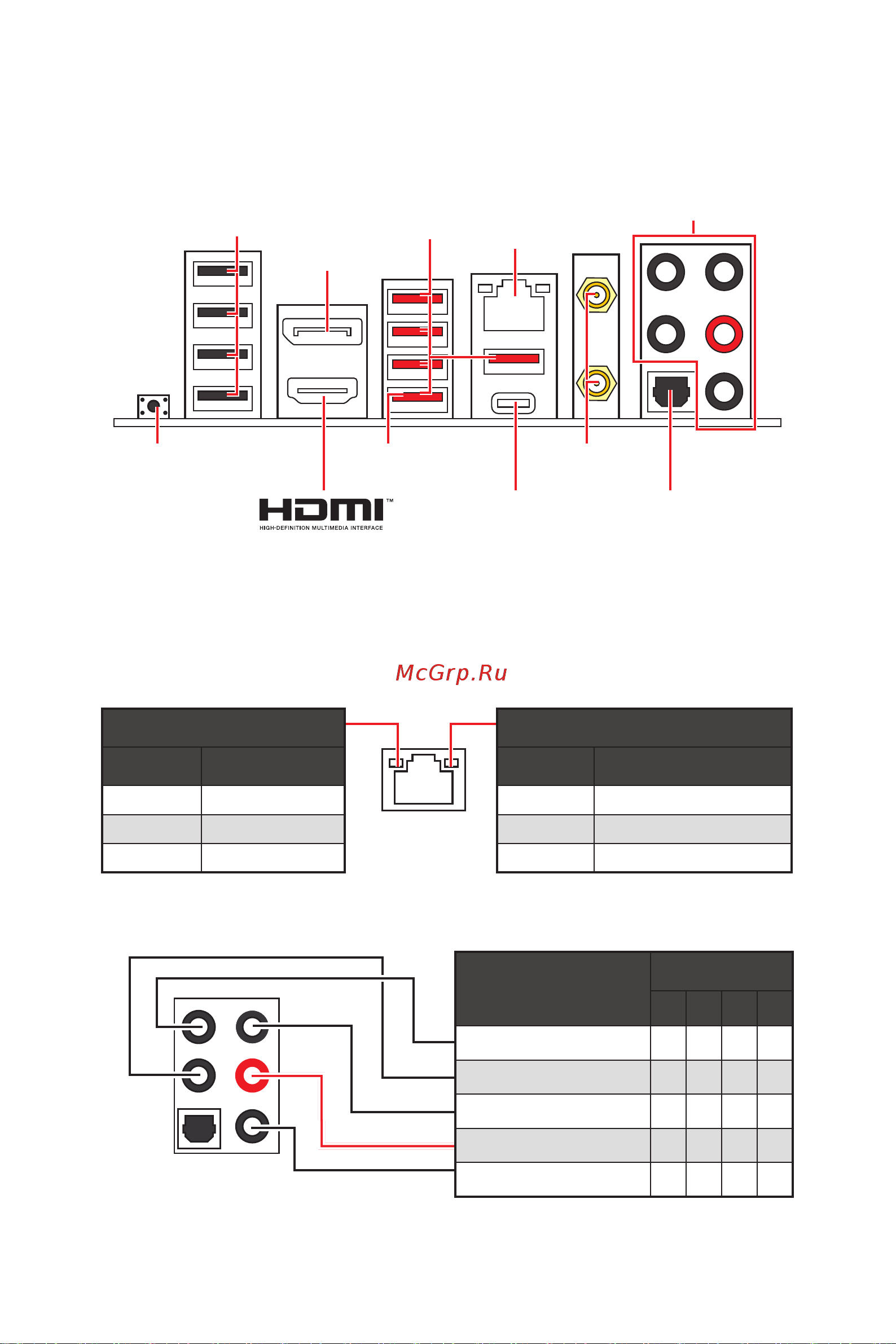

Rear I/O Panel

Audio Ports Configuration

Audio Ports

Channel

2 4 6 8

Center/ Sub-woofer Out ● ●

Rear Speaker Out ● ● ●

Line-In/ Side Speaker Out ●

Line-Out/ Front Speaker Out ● ● ● ●

Mic In

(●: connected, Blank: empty)

Rear I/O Panel

∙ Flash BIOS Port/ Button - Please refer to page 46 for Updating BIOS with Flash BIOS

Button.

LAN Port LED Status Table

Link/ Activity LED

Status Description

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Status Description

Off 10 Mbps connection

Green 100/1000 Mbps connection

Orange 2.5 Gbps connection

USB 3.2 Gen 2x2

(20Gbps) Type-C

Flash BIOS

Button

2.5Gbps

LAN

Wi-Fi Antenna

connectors

USB 2.0

Type-A

USB 3.2

Gen 2

(10Gbps)

Type-A

DisplayPort

Audio Ports

Optical

S/PDIF-Out

Flash BIOS

port
