Overview of Components

⚠

Important

∙

Always unplug the power cord from the power outlet before installing or removing

the CPU.

∙

Please retain the CPU protective cap after installing the processor. MSI will deal

with Return Merchandise Authorization (RMA) requests if only the motherboard comes

with the protective cap on the CPU socket.

∙

When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink

is necessary to prevent overheating and maintain system stability.

∙

Confirm that the CPU heatsink has formed a tight seal with the CPU before booting

your system.

∙

Overheating can seriously damage the CPU and motherboard. Always make sure

the cooling fans work properly to protect the CPU from overheating. Be sure to apply

an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to

enhance heat dissipation.

∙

Whenever the CPU is not installed, always protect the CPU socket pins by covering

the socket with the plastic cap.

∙

If you purchased a separate CPU and heatsink/ cooler, Please refer to the

documentation in the heatsink/ cooler package for more details about installation.

∙

This motherboard is designed to support overclocking. Before attempting to

overclock, please make sure that all other system components can tolerate

overclocking. Any attempt to operate beyond product specifications is not

recommended. MSI® does not guarantee the damages or risks caused by inadequate

operation beyond product specifications.

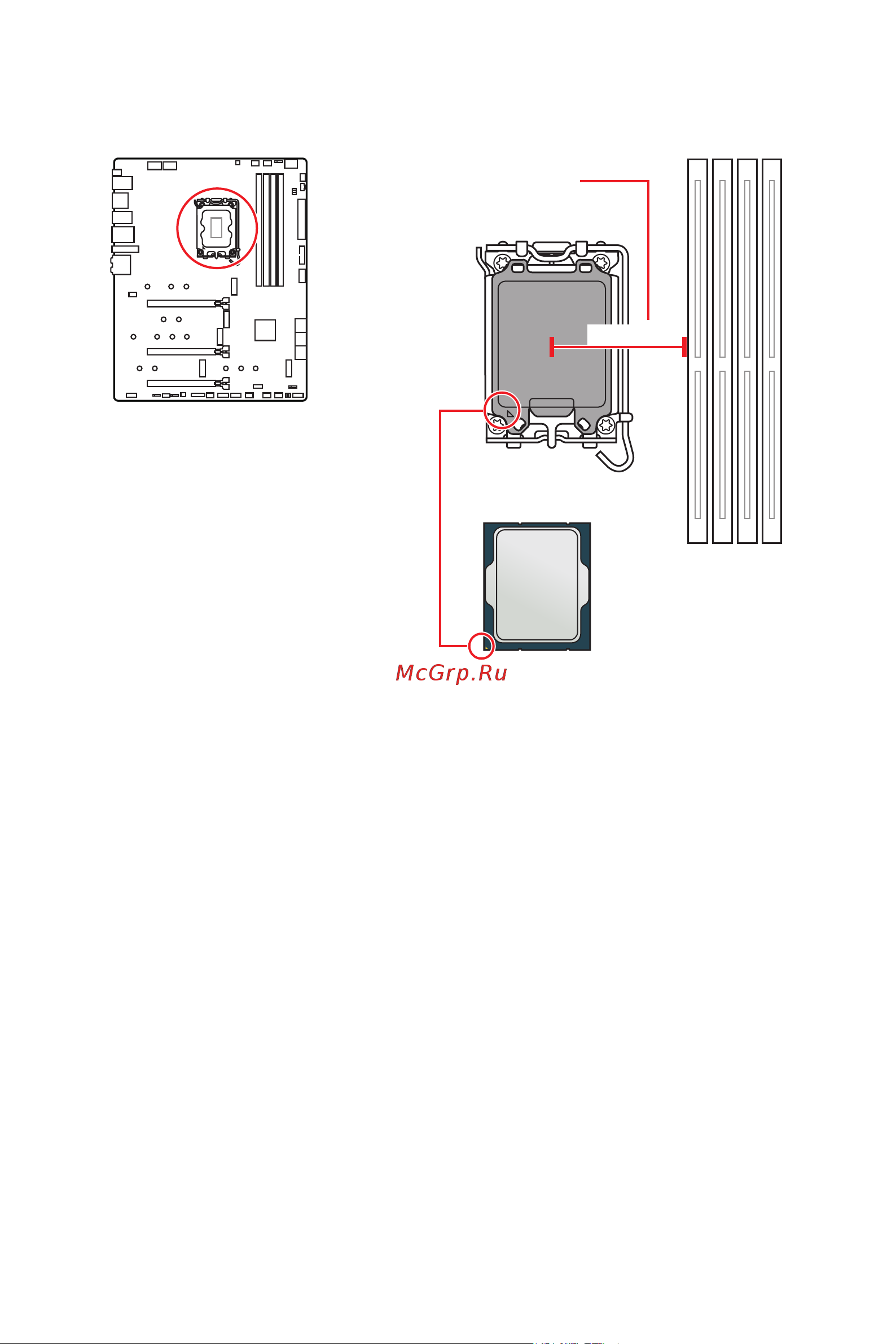

CPU Socket

Introduction to the LGA1700 CPU

The surface of the LGA1700 CPU has

four notches and a golden triangle to

assist in correctly lining up the CPU for

motherboard placement. The golden

triangle is the Pin 1 indicator.

Distance from the center of the

CPU to the nearest DIMM slot.

50.98 mm
