Overview of Components

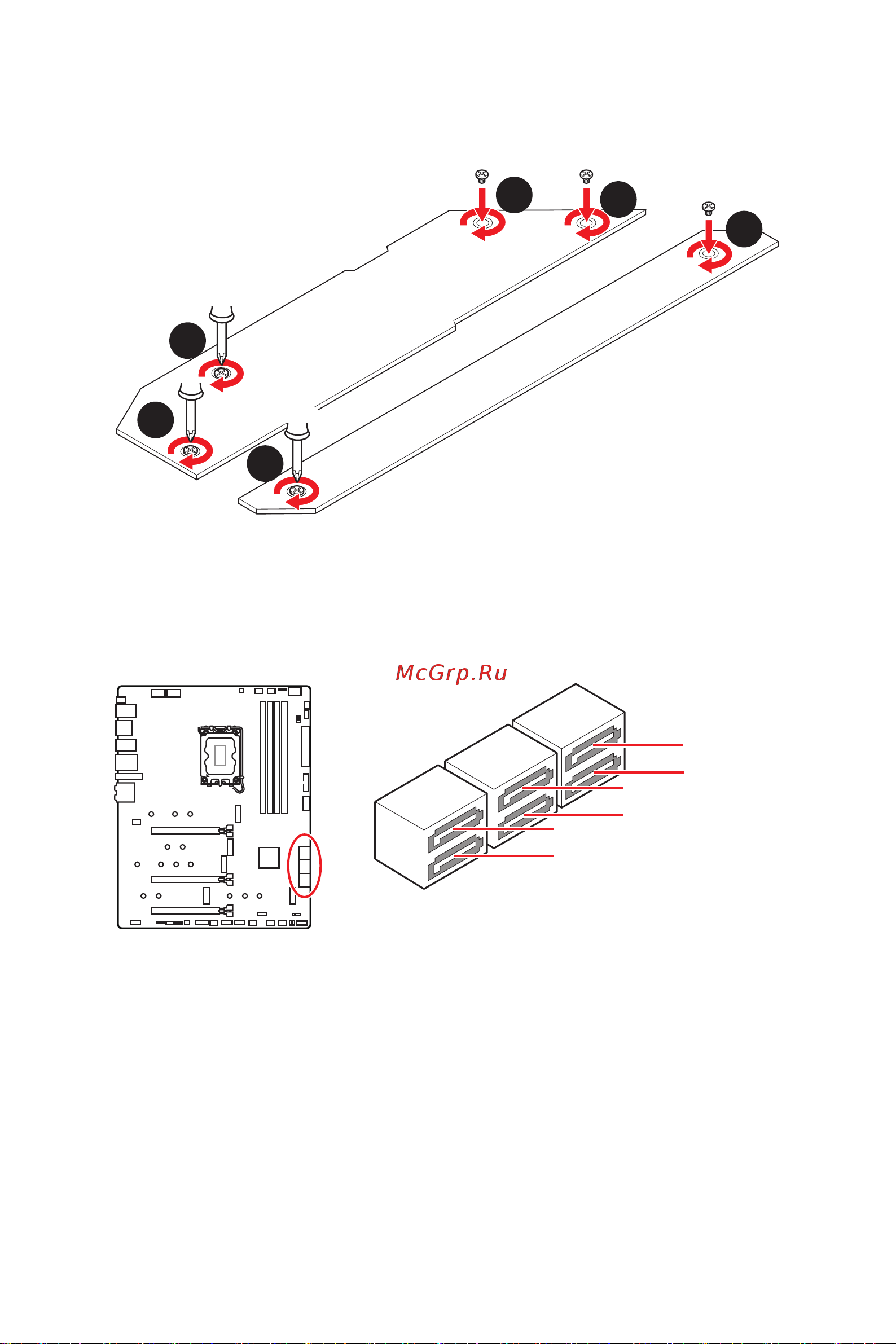

6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
SATA5~8 & SATAA~B: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATAA
SATA5
SATA7
SATAB
SATA6
SATA8
⚠
Important
∙
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
∙
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
∙
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.
