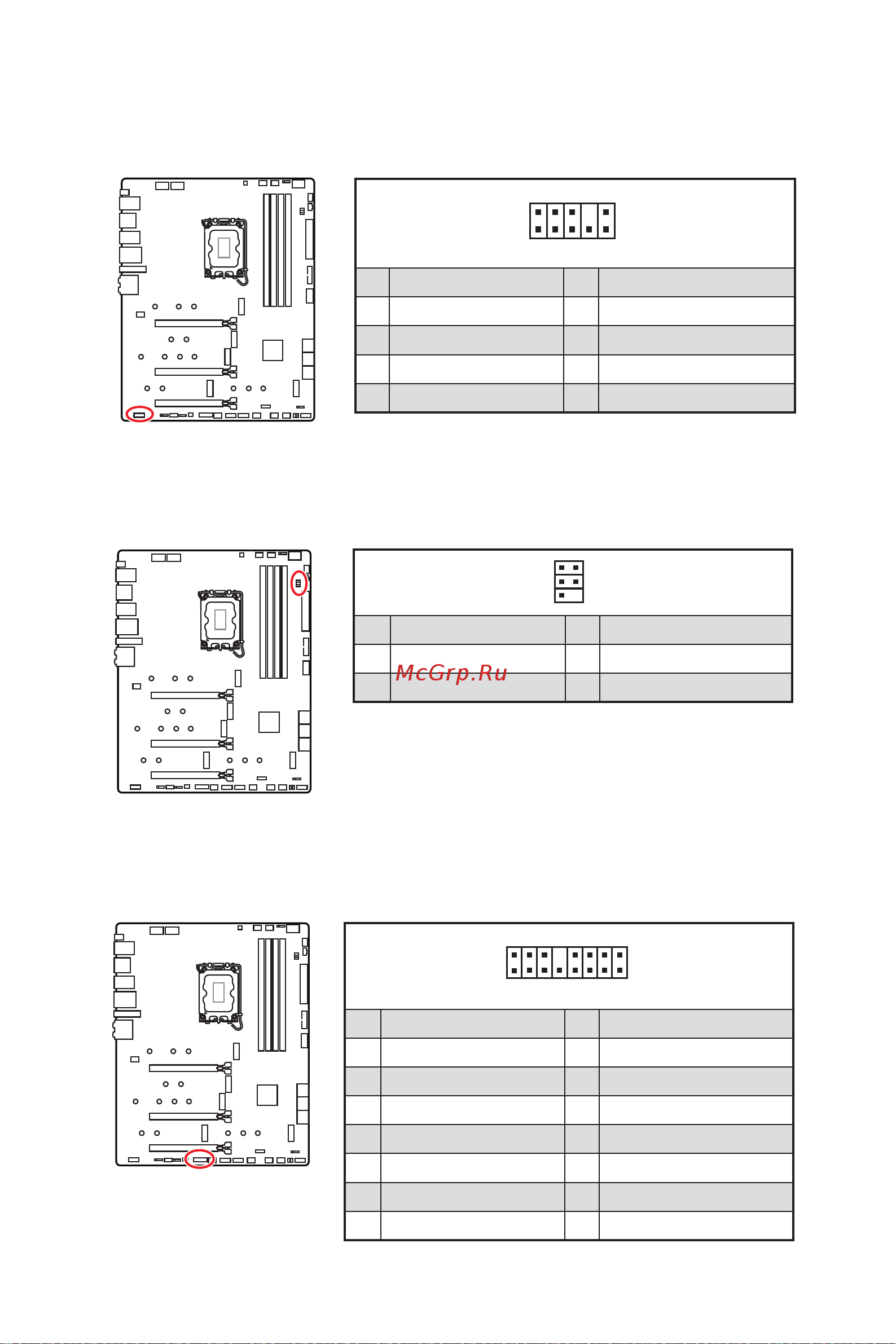

Overview of Components

JDASH1 : Tuning Controller connector

This connector is used to connect an optional Tuning Controller module.

1 No Pin 2 NC

3 MCU_SMB_SCL_M 4 MCU_SMB_SDA_M

5 VCC5 6 Ground

JTBT1: Thunderbolt Add-on Card Connector

This connector allows you to connect the add-on Thunderbolt I/O card.

2 16

1 TBT_FORCE_PWR 2 TBT_S0IX_ENTRY_REQ

3 TBT_CIO_PLUG_EVENT# 4 TBT_S0IX_ENTRY_ACK

5 SLP_S3#_TBT 6 TBT_PSON_OVERRIDE_N

7 SLP_S5#_TBT 8 No Pin

9 Ground 10 SMBCLK_VSB

11 DG_PEWAKE# 12 SMBDATA_VSB

13 TBT_RTD3_PWR_EN 14 Ground

15 TBT_CARD_DET_R# 16 PD_IRQ#

JAUD1: Front Audio Connector

This connector allows you to connect audio jacks on the front panel.

2 10

1 MIC L 2 Ground

3 MIC R 4 NC

5 Head Phone R 6 MIC Detection

7 SENSE_SEND 8 No Pin

9 Head Phone L 10 Head Phone Detection
