Overview of Components

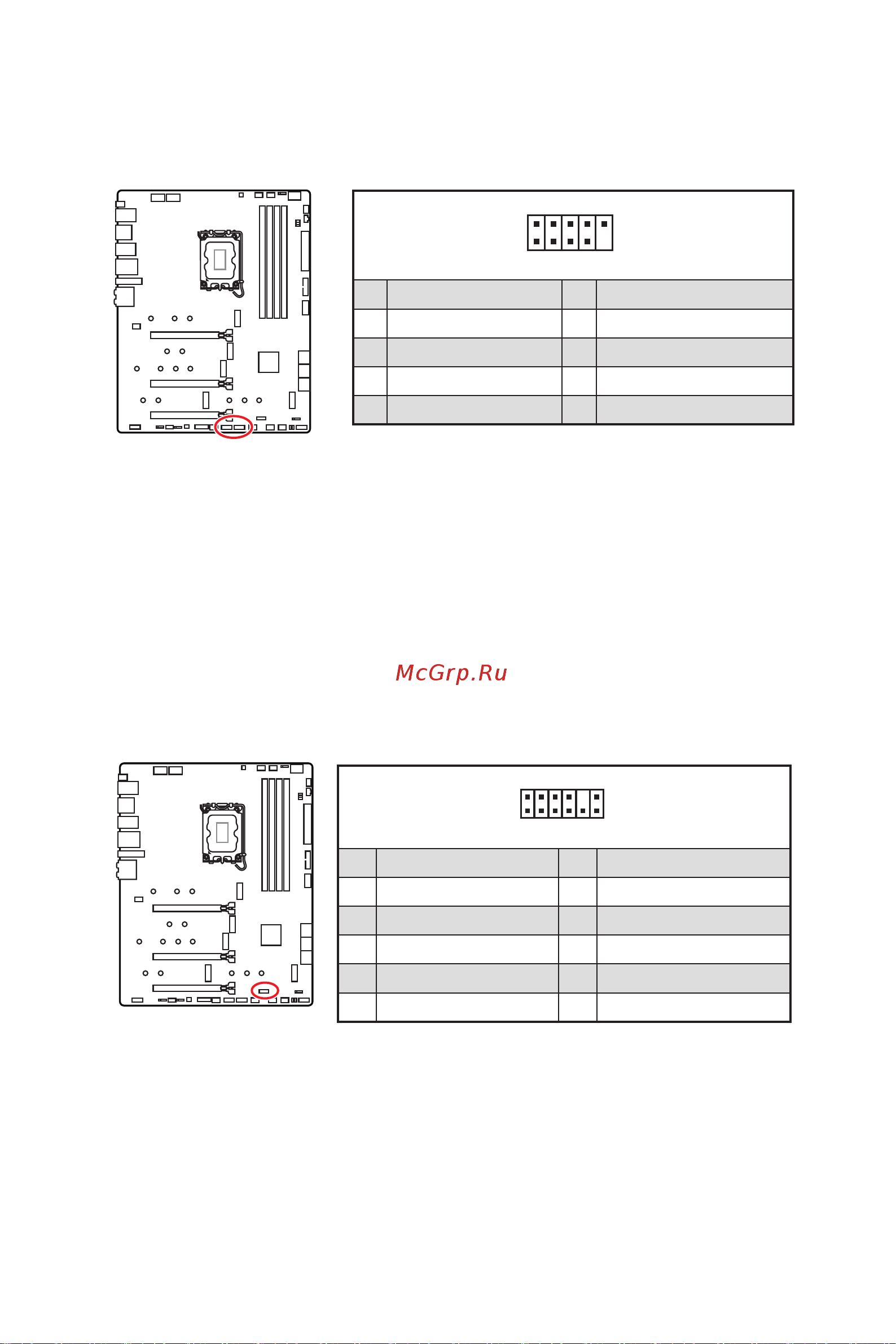

JUSB1~2: USB 2.0 Connectors

These connectors allow you to connect USB 2.0 ports on the front panel.

2 10

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC

⚠

Important

∙

Note that the VCC and Ground pins must be connected correctly to avoid possible

damage.

∙

In order to recharge your iPad, iPhone and iPod through USB ports, please install

MSI® Center utility.

JTPM1: TPM Module Connector

This connector is for TPM (Trusted Platform Module). Please refer to the TPM security

platform manual for more details and usages.

2 12

1 SPI Power 2 SPI Chip Select

Master In Slave Out (SPI Data)

Master Out Slave In (SPI Data)

5 Reserved 6 SPI Clock

7 Ground 8 SPI Reset

9 Reserved 10 No Pin

11 Reserved 12 Interrupt Request
