Overview of Components

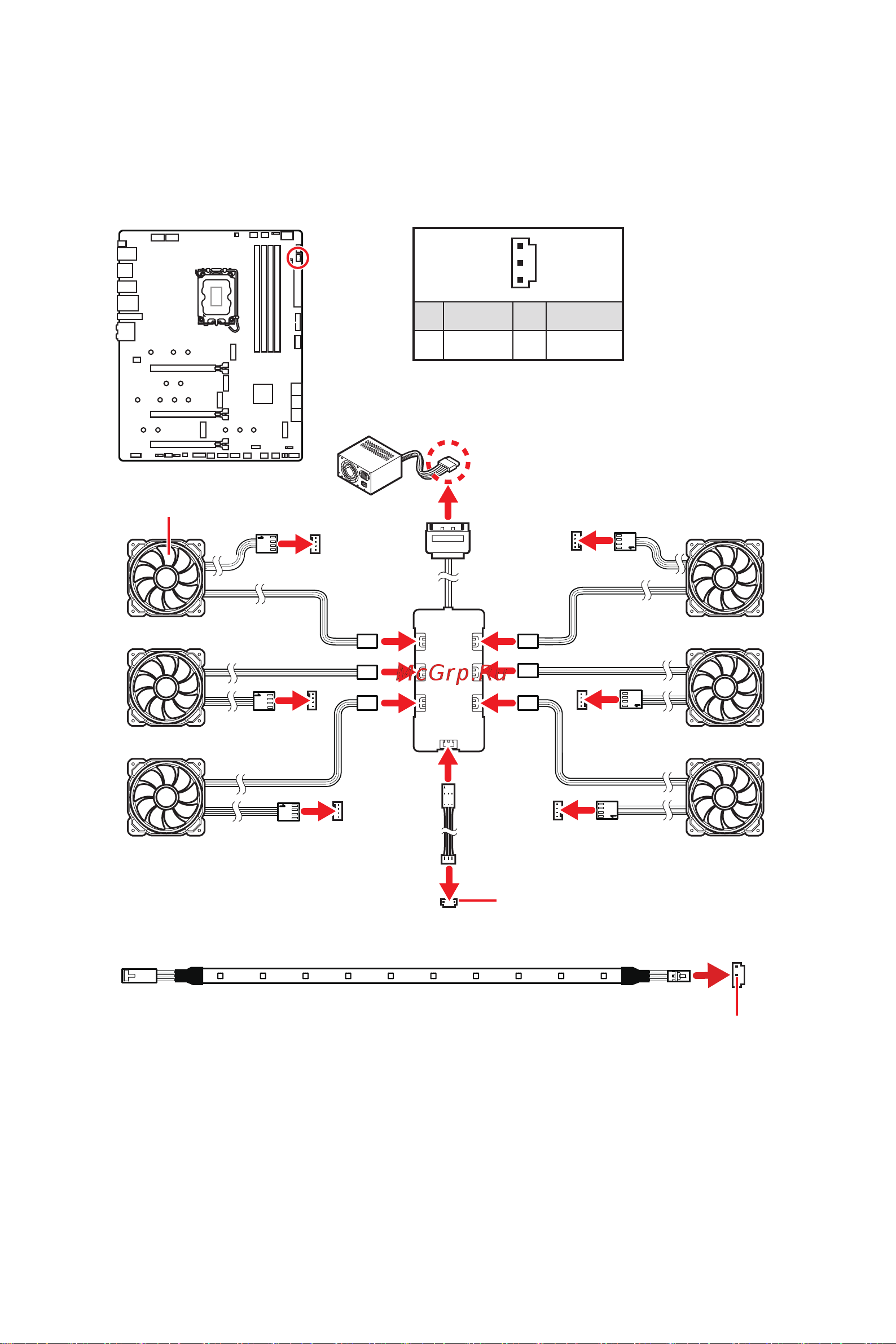

JCORSAIR1: CORSAIR Connector

The JCORSAIR1 connector allows you to connect the CORSAIR Individually

Addressable Lighting PRO RGB LED strips 5V or CORSAIR RGB fans with the CORSAIR

fan hub. Once all items are connected properly, you can control the CORSAIR RGB

LED strips and fans with MSI's software.

1 +5V 2 Data

3 Ground

CORSAIR RGB Fan Connection

⚠

Important

∙

Fans must start at 1 and continue in series. 1 > 2 > 3 > 4 > 5 > 6. Any fan not

connected in series will break communication and the RGB LED lighting function will

not work.

∙

Quantity of RGB LED Fans or RGB LED Lighting PRO strips supported may differ

between models. Please refer to the motherboard specification.

∙

CORSAIR RGB LED Fan and CORSAIR Lighting Node PRO can’t be used at the same

time.

JCORSAIR1 connector

SYS_FAN

JCORSAIR1 connector

SATA power

CORSAIR Lighting Node PRO Connection

CORSAIR RGB LED fan

CORSAIR fan hub
