Discovery Artisan 128

Digital Microscope

Never, under any circumstances, look directly at the Sun,

another bright source of light or at a laser through this device,

as this may cause PERMANENT RETINAL DAMAGE

and may lead to BLINDNESS.

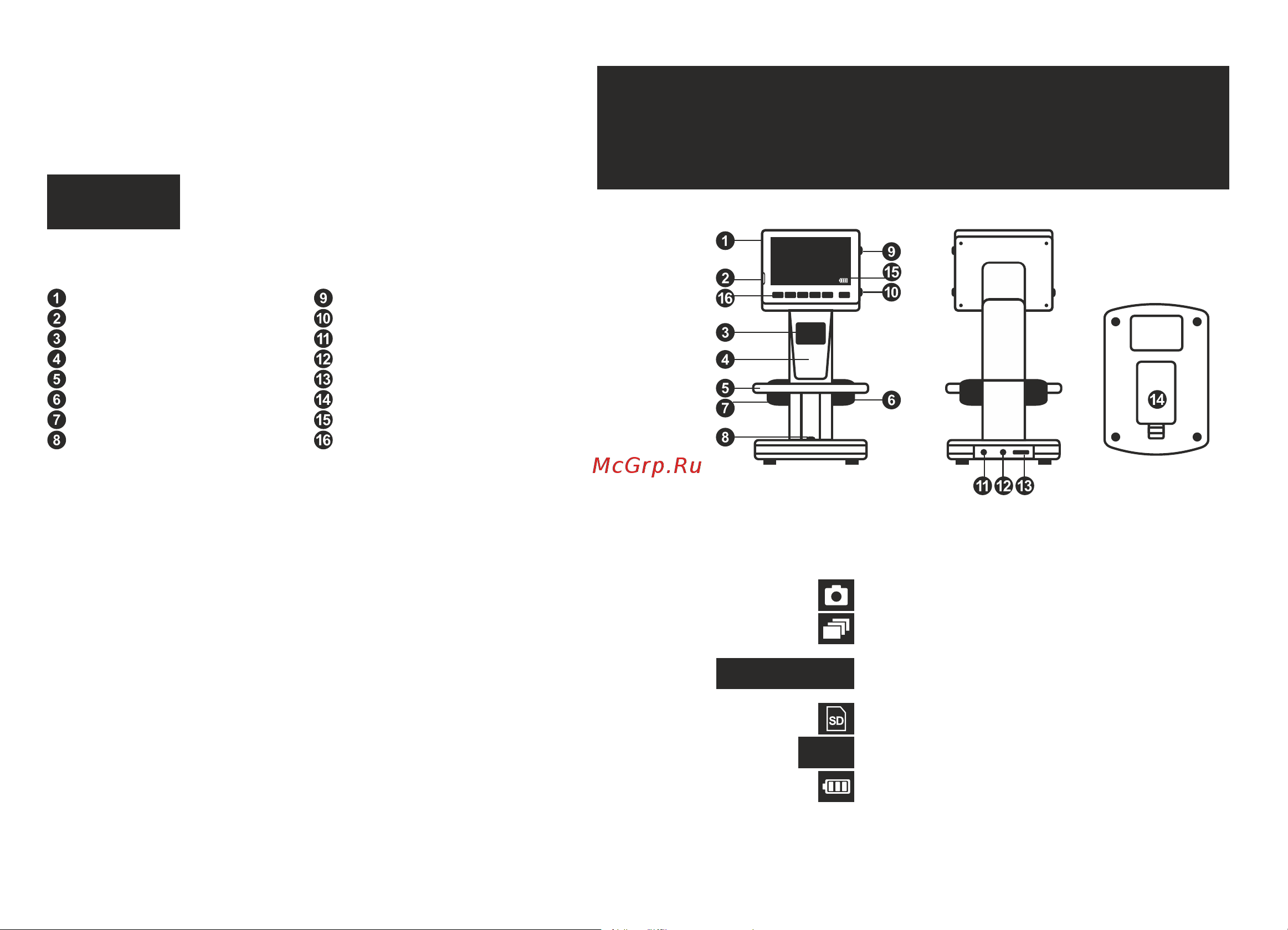

Microscope parts

The kit includes: microscope, rechargeable battery, power cable, USB cable, RCA cable,

Discovery Artisan installation CD, cleaning cloth, user guide, calibration scale.

LCD display

MicroSD card slot

Fine focus knob

Microscope optical tube

Stage

Coarse focus knob

Focus lock knob

Shutter button

Brightness adjustment wheel

Magnification adjustment wheel

Power cable socket

RCA socket

USB socket

Battery compartment

Battery status indicator

Function keys

Microscope assembly

Open the battery compartment at the bottom of the microscope base. Insert the battery into the

battery compartment matching the indicated polarity. The battery has to be fully charged before

turning the microscope on for the first time. Plug the power cable into the power cable socket on

the microscope body (11) and connect it to a power source. The battery status indicator (15) will

turn red. Once the battery is fully charged, the indicator will go out. You can now disconnect the

microscope from the power source and turn it on. The fully-charged battery allows you to use

the microscope for two hours. The illumination will grow dim and the image quality will decrease

to inform you that the battery is low. Charge the battery, as described above.

A microSD card (purchased separately) is required to save captured images and recorded videos.

Turn the microscope off and insert the microSD card into the corresponding slot on the

microscope body until it locks in place with a click. Do not apply excessive force when inserting

the microSD card. Try rotating the card, if it does not lock in place with ease. Format the card

before using it.

To turn the microscope on press the power button (16). To turn the microscope off press

the power button (16) again (refer to Power saving for more information).

00013/01618

5.0М

Image capture mode icon

Sequence capture mode icon

Captured image counter/Total number

of images that may be captured

(based on the current resolution)

MicroSD status icon

Current image resolution

Battery status indicator

Note: interface icons may be hidden by pressing the magnification

adjustment wheel (10).
