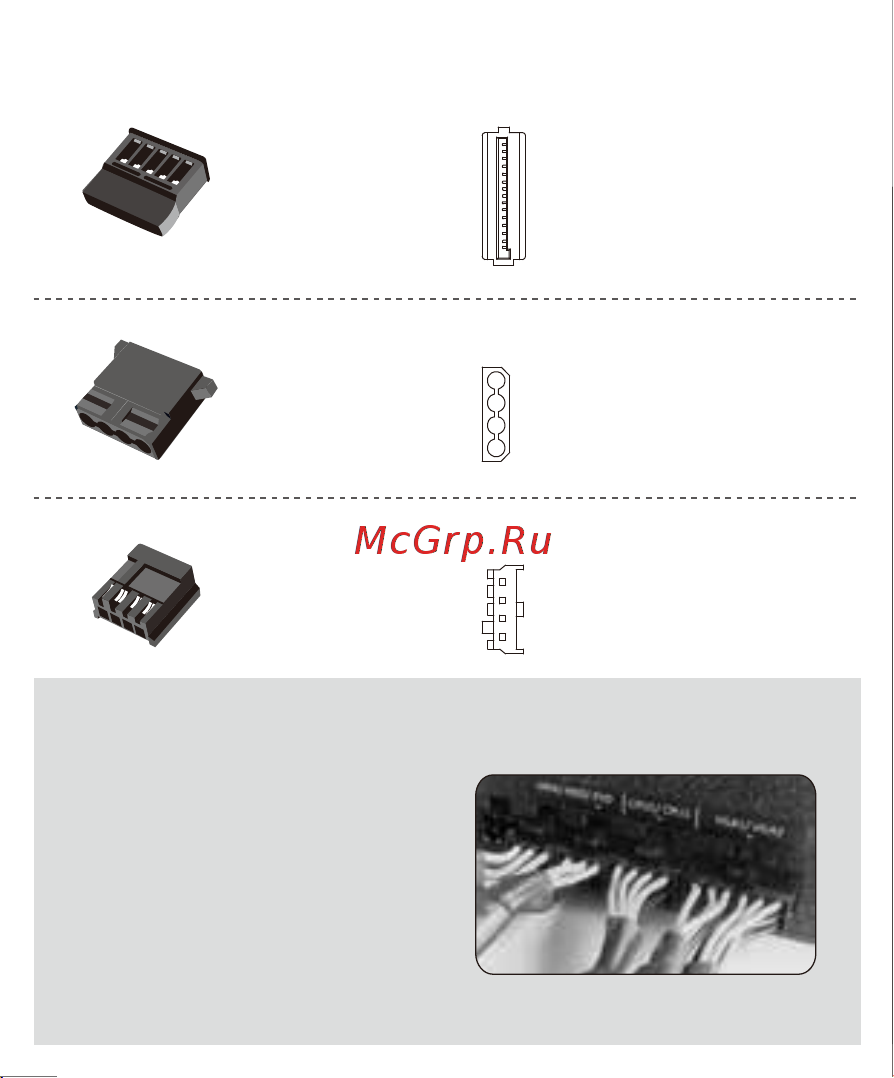

4-pin connector for floppy drives (4P)

Serial-ATA connection for components (SATA)

4-pin molex connection for components (4P)

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 1

Pin 2

Pin 3

Pin 4

Pin 1

Pin 2

Pin 3

Pin 4

+12V

GND

+5V

GND

+3.3V

+12V

GND

+5V

+12V

GND

+5V

English

Attention

• Please make sure the modular connector must be connected with flat cable closely.

• If power supply is modular design, please

double check the followings:

1) Make sure connectors have been

connected until hear ”Click”

2) If connectors broken, please stop using

and contact with your dealer immediately.

3) It’s recommended to check connectors

per 6 months.

4) Connectors would be burned or short

circuit occurred if connectors loose.

• Warranty does not cover side stickers. Stickers should only be used once.
