ELECTRIC IMPACT DRILL

HANDLING INSTRUCTIONS

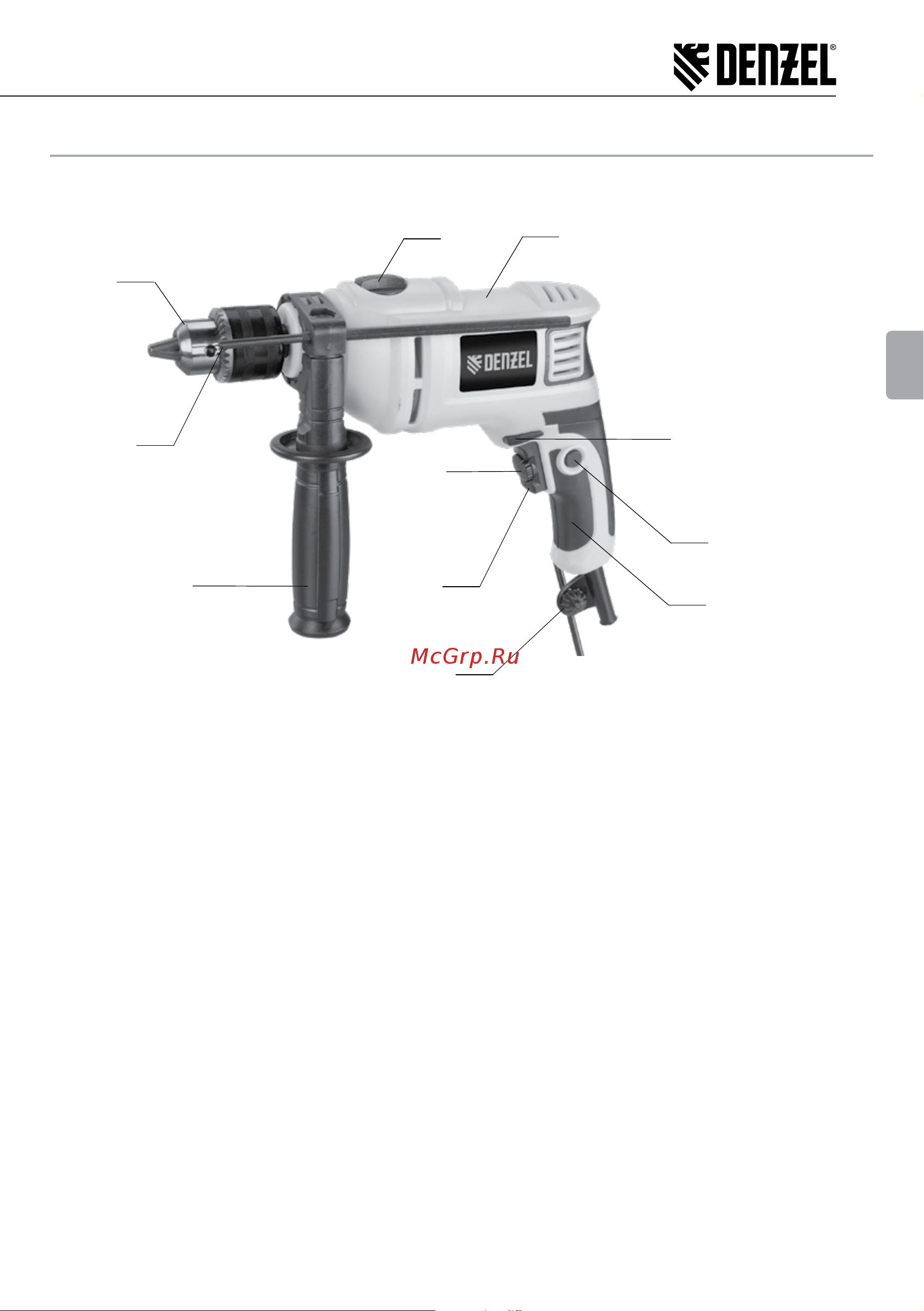

General view of the tool is shown on picture 1.

1. Chuck

2. Mode switch

3. Housing

4. Reverse switch

5. Switch lock button

6. Main handle

7. Chuck key holder

8. Switch key

9. Rotation speed setting-ring

10. Side handle

11. Drilling depth gauge

Pic. 1

Description

Electric handheld drill machine (drill) is a rotary machine consisting of electric drive and gearbox, on the output

shaft of which the possibility of xing the rig with the help of a three-cam self-centering chuck is provided.

The actuator is an AC collector motor housed in a plastic housing. Engine control is carried out using the trigger

switch with built-in motor speed control. It is possible to switch the direction of rotation of the spindle to use

dierent tooling.

The machine is equipped with an impact function implemented by using two crowns, providing a reciprocating

movement of the spindle during rotation. This feature increases the eciency of the machine when drilling hard

and brittle materials (brick, concrete, etc.).

The machine is equipped with a side handle that allows you to hold the tool with two hands, providing

convenience when working.
