ANGLE GRINDER

HANDLING INSTRUCTIONS

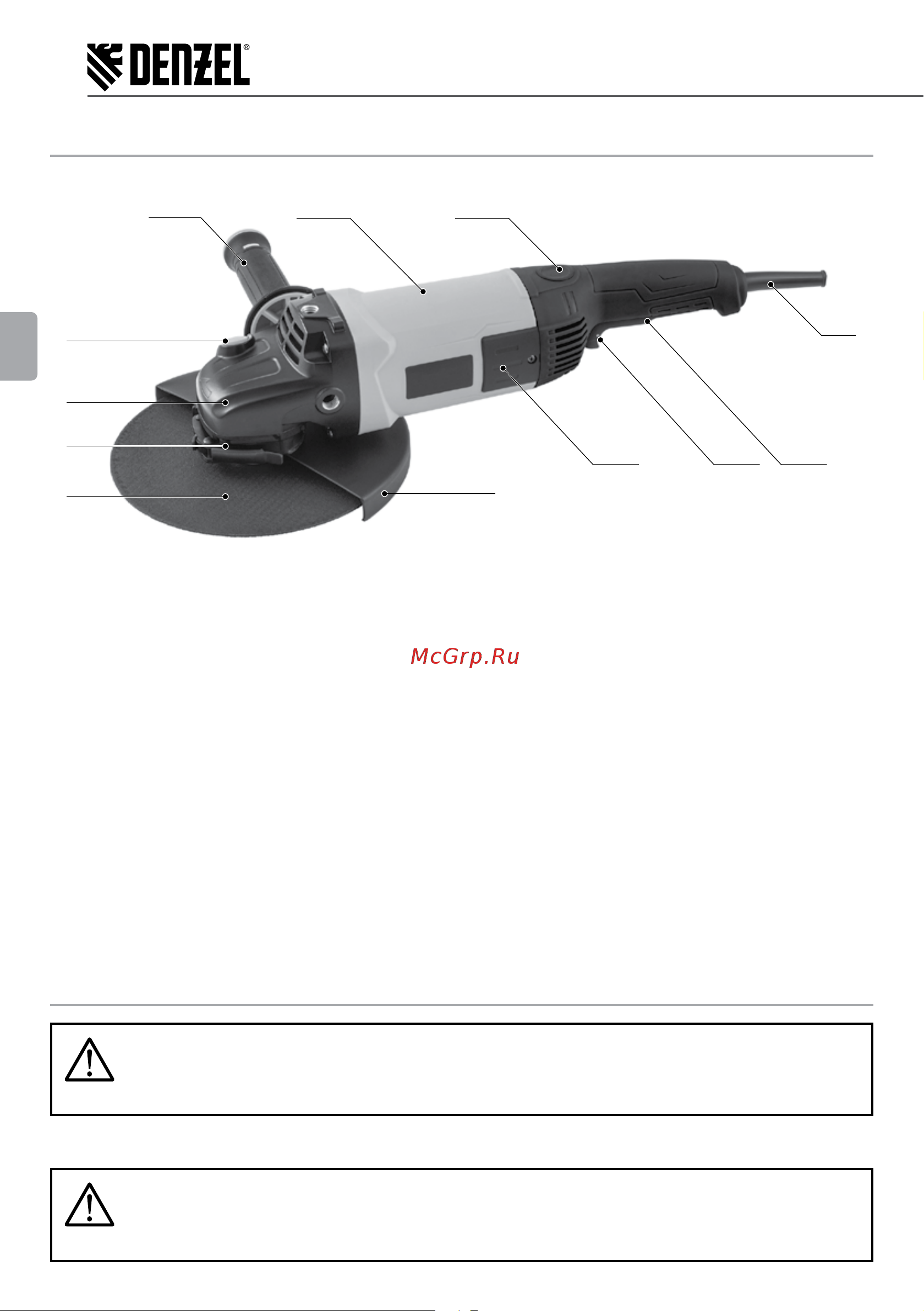

General view of the tool is shown on picture 1.

pic. 1

1. Gear housing.

2. Spindle lock button.

3. Engine housing.

4. Easy access to carbon brushes.

5. Lock key of main handle (for model AG-230-2600).

6. Power cable.

7. Power switch key.

8. Switch lock button.

9. Side handle.

10. Protective cover.

11. Protective cover fastening lever.

12. Tooling (not included).

Description

Angle grinding machine represents rotary action machine consisting of electric drive and angular gear,

on the output shaft of which the possibility of xing the tooling is provided. The electric drive is the collector

AC motor, housed in a plastic case.

The machine is designed to work with grinding or cutting wheels, as well as a stripping tool (metal/ nylon

cup and disk brushes, petal grinding heads, etc.) with a working speed of at least 80 m/s.

The machine is equipped with a protective cover that protects the operator from sparks ying out of the treatment

area of wear products of equipment and injuries at destruction of equipment. Work without the use of a protective

casing is strictly prohibited for safety reasons.

OPERATION

ATTENTION!

Always unplug the power cord from the power supply before preparing for the operation,

setting up, and maintenance of the power tool.

Installing a protective cover

ATTENTION!

The disc guard must be installed on the instrument in this way so that the closed side of the cover

is always towards the operator.
