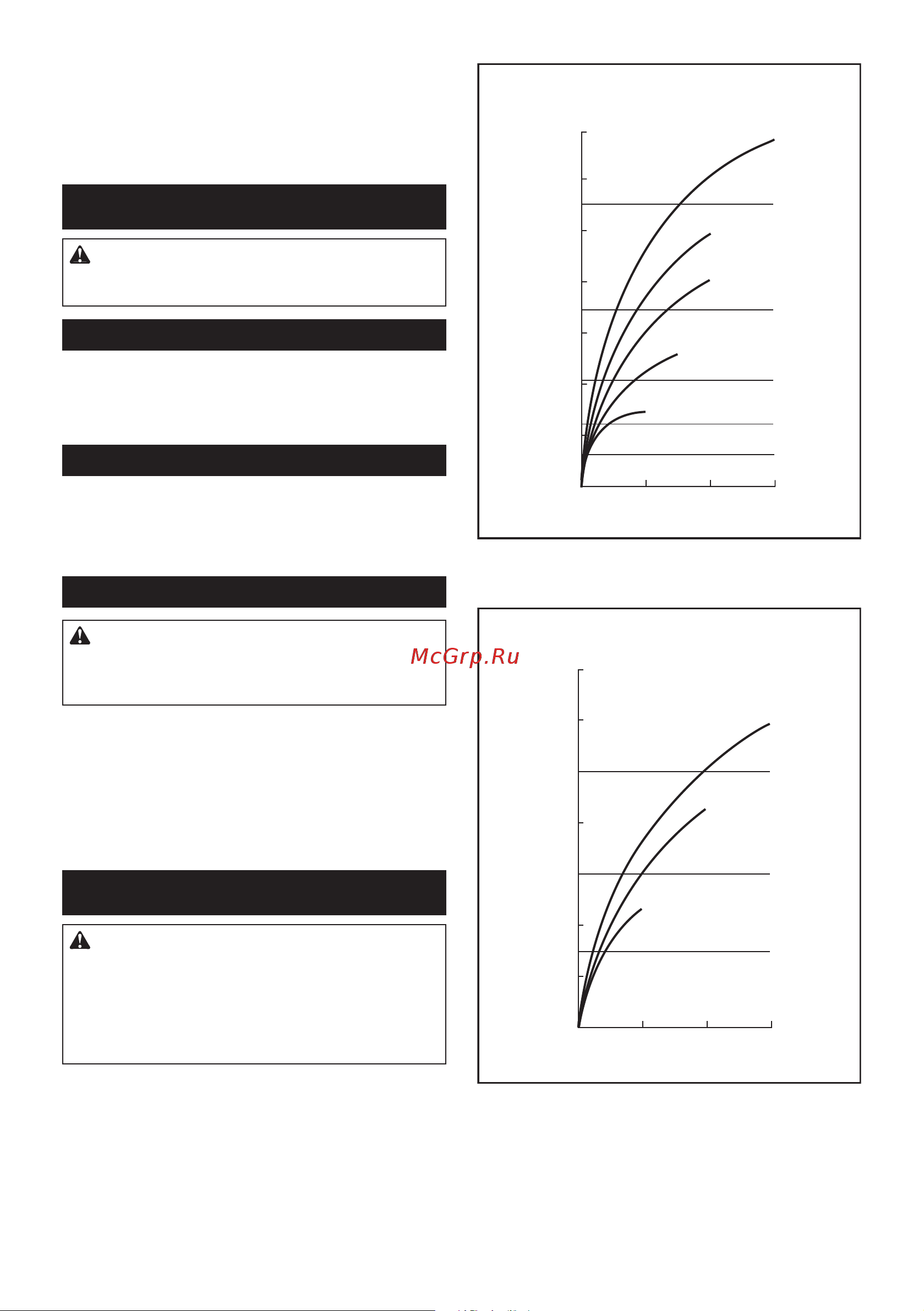

Руководство по эксплуатации Страница: 6

Makita TW140DWAE Руководство по эксплуатации онлайн [6/44] 690422

6 ENGLISH

This tool has a reversing switch to change the direction

of rotation. Depress the reversing switch lever from the

A side for clockwise rotation or from the B side for coun-

terclockwise rotation.

When the reversing switch lever is in the neutral posi-

tion, the switch trigger cannot be pulled.

ASSEMBLY

CAUTION: Always be sure that the tool is

switched off and the battery cartridge is removed

before carrying out any work on the tool.

Selecting correct impact socket

Alwaysusethecorrectsizeimpactsocketforboltsand

nuts. An incorrect size impact socket will result in inac-

curate and inconsistent fastening torque and/or damage

to the bolt or nut.

Installing or removing impact socket

►Fig.6: 1. Impact socket 2. Square drive

To install the impact socket, push it onto the square

drive of the tool until it locks into place.

Toremovetheimpactsocket,simplypullitoff.

Installing hook

CAUTION: When installing the hook, always

secure it with the screw rmly. If not, the hook

maycomeofffromthetoolandresultinthepersonal

injury.

►Fig.7: 1. Groove 2. Hook 3. Screw

Thehookisconvenientfortemporarilyhangingthetool.

This can be installed on either side of the tool. To install

the hook, insert it into a groove in the tool housing on

either side and then secure it with a screw. To remove,

loosen the screw and then take it out.

OPERATION

CAUTION: Always insert the battery cartridge

all the way until it locks in place.Ifyoucanseethe

red indicator on the upper side of the button, it is not

lockedcompletely.Insertitfullyuntiltheredindicator

cannotbeseen.Ifnot,itmayaccidentallyfalloutof

thetool,causinginjurytoyouorsomeonearound

you.

►Fig.8

Holdthetoolrmlyandplacetheimpactsocketover

the bolt or nut. Turn the tool on and fasten for the proper

fastening time.

Theproperfasteningtorquemaydifferdependingupon

the kind or size of the bolt, the material of the workpiece

to be fastened, etc. The relation between fastening

torqueandfasteningtimeisshowninthegures.

Proper fastening torque for standard bolt

N•m

(kgf•cm)

100

(1020)

120

(1224)

(816)

(612)

(408)

(204)

M12

M14

M10

M12

M14

M10

140

(1430)

M16

1.Fasteningtime(second)2. Fastening torque

Proper fastening torque for high tensile bolt

140
