16 English

Never modify or bypass safety devices.

Safety switch

The safety button is triggered by the fixing screw on the

protective grid. This prevents the user from injuring him-

self on the fan wheels and mulching blades when the

suction pipe is removed.

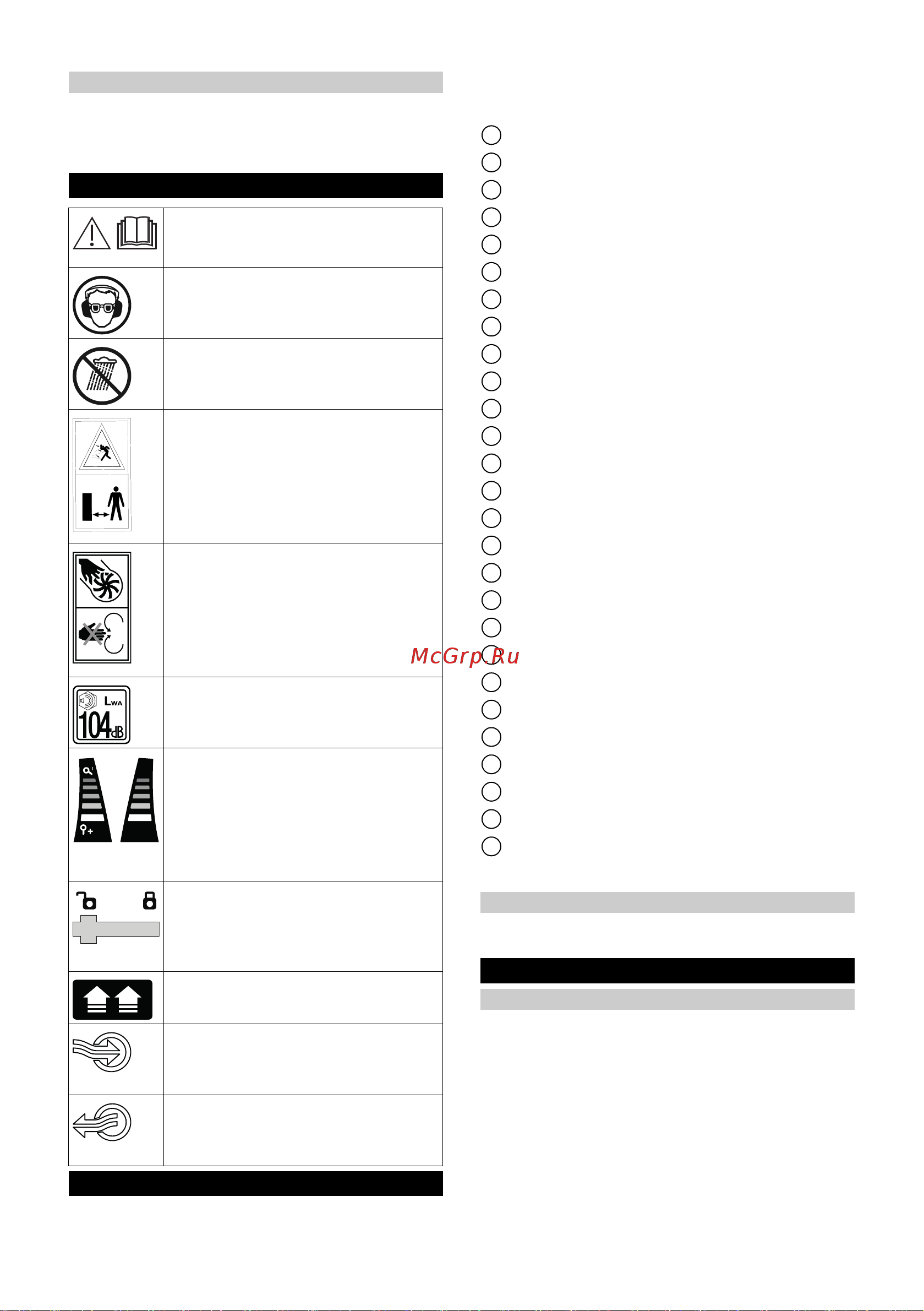

Symbols on the device

Description of the device

The maximum amount of equipment is described in

these operating instructions. Depending on the model

used, there are differences in the scope of delivery (see

packaging).

See graphics page for illustrations

Illustration A

1 Guide rollers

2 Nozzle for blower pipe

3 Lower suction pipe

4 Upper suction pipe

5 Battery pack unlocking button

6 Type plate

7 Motor casing

8 Motor casing locking pin

9 Unlocking button for blower pipe

10 Slider for suction pipe

11 Eyelet for carrying belt

12 Latch for protective grid

13 Fixing screw for protective grid

14 Protective grid

15 Front handle

16 Speed regulation

17 Rear handle

18 Trigger

19 Selector switch for blower / suction mode

20 Connecting piece

21 Upper blower pipe

22 Lower blower pipe

23 Adapter for collecting bag

24 Collecting bag

25 *Battery Pack Battery Power 36V

26 *Quick Charger Battery Power 36V

27 Carrying belt

* optional

Rechargeable battery pack

The device can be operated with a 36 V Kärcher Bat-

tery Power battery pack.

Installation

Installation of blower / suction device

The following describes the installation of the complete

blower and suction device. If the device is to be operat-

ed only as a blower or suction device, the corresponding

steps are omitted during assembly.

1. Allow the blower pipe nozzle to click into place in the

lower blower pipe.

Illustration B

2. Push the lever down and snap the blower pipe into

the adapter of the guide rollers in the desired posi-

tion.

Illustration C

Read the operating instructions and all

safety instructions before operating the

device for the first time.

Always wear suitable eye protection and

hearing protection when working with the

device.

Do not subject the device to rain or moist

conditions.

Danger due to flung objects. Keep spec-

tators away from the work area.

Rotating fan wheels. Keep hands and

feet away from the openings while the

device is in operation.

The guaranteed sound level specified on

the label is 104 dB.

Setting for speed regulation.

Slider for suction pipe. Lock open = suc-

tion pipe is unlocked; lock closed = suc-

tion pipe is locked.

Pull: Quick-release catch

Vacuuming operations

Blowing mode
