7

ENGLISH TECHNICAL PASSPORT

Extractor hood

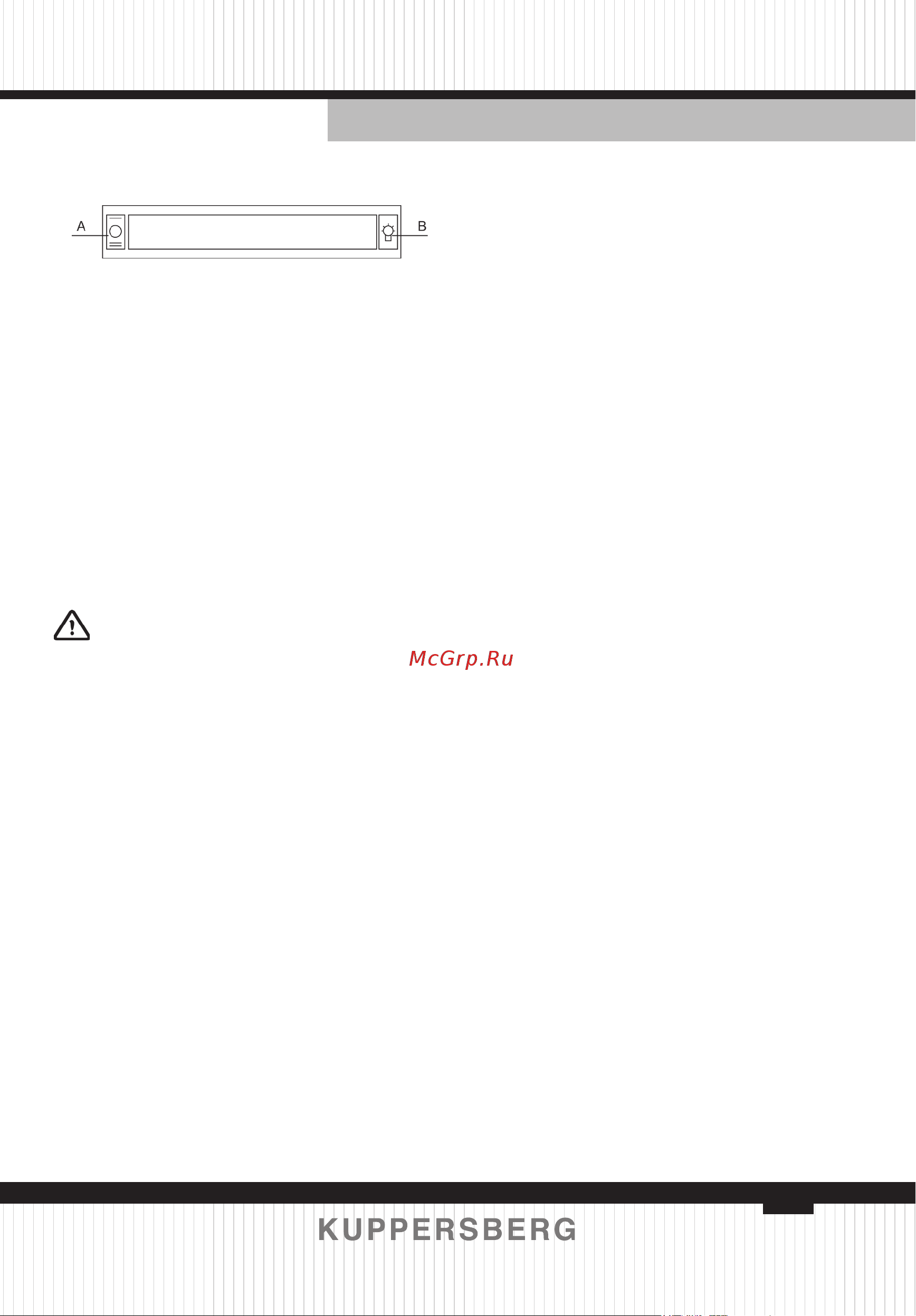

Mechanical control (switches)

А – «Lighting» switch

В – «Speed» switch

«Lighting» switch – Lighting On/Off

«Speed» switch – Hood motor On/

Off

Switching of speeds 1 and 2 (suction

power increasing / reducing)

Switching of speed from 1 to 2

occurs through the hood off.

SECTION 4.

Mounting and dimensions

Please unpack and inspect the

appliance! Before starting installation,

make sure that the hood has no obvious

transport damages. If such defects are

detected, do not install or connect the

appliance to the mains.

1. To install the air cleaner above the

stove, draw a vertical line on the wall

from the center of the stove vertically

to the ceiling. To comply with safety

regulations, the distance between the

cooking surface and the air cleaner

should be 700 mm. Accordingly, make

a mark with a pencil on the vertical

line at a height of 700+426=1126 mm

from the surface of the stove. Draw a

horizontal line through this point on

the wall. Measure 100 mm on this line

to the right and left from the point

of intersection of the vertical and

horizontal lines and make marks with

a pencil. Using a 6-mm drill bit, drill

holes in these marks. Insert dowels in

the holes just drilled and ﬁ x the hooks.

2. Installation of decorative cover

Draw a horizontal line on a wall, at

a distance of 75 mm from the ceiling.

Measure 50 mm on this line to the right

and left from the point of intersection

with the vertical line and make marks

with a pencil. On these marks, drill the

holes, insert the 8-mm dowels in them

and tighten 2.5-mm screws which must

protrude 2 mm from the wall.

Step 1: Installation of hooks

Step 2: Installation of mounting

bracket

Step 3: Installation of housing

Step 4: Installation of external part

of decorative cover

Step 5: Installation of internal part

of decorative cover

1- Ø8 dowel

2- Mounting bracket

3- Hook

4- Internal part of decorative cover

5- External part of decorative cover

6- Air cleaner housing

7- Bushing adapter

8- Ø 2.5 screw
