Removal of HV battery

WARNING:

・ Be sure to wear insulated gloves when handling high-voltage

parts.

・ Even if the vehicle is shut off and the relays are off, be sure to

remove the service plug grip before performing any further work.

・ Power remains in the high voltage electrical system for 10

minutes even after the HV battery pack is shut off because the

circuit has a condenser that stores power.

・ Make sure that the tester reading is 0 V before touching any high-

voltage terminals which are not insulated.

・ The SRS may remain powered for up to 90 seconds after the

vehicle is shut off or disabled. To prevent serious injury or

death from unintentional SRS deployment, avoid cutting the SRS

components.

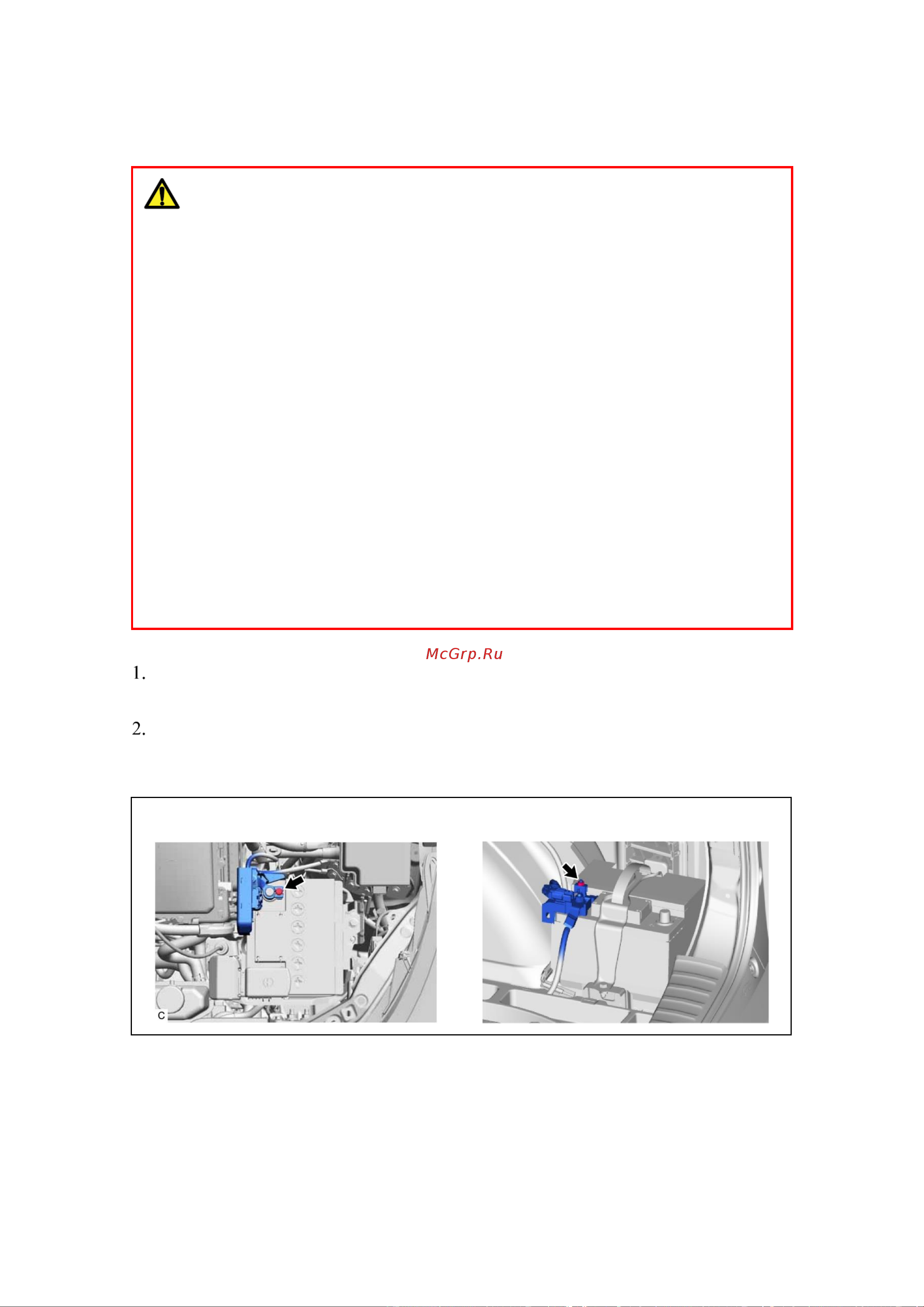

SHUT OFF IGNITION (READY indicator is off)

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY

TERMINAL

for 2ZR-FXE or 2ZR-FXB:

for M20A-FXS:
