Move each lock lever as shown in the illustration and disconnect the 2 inverter with

converter assembly connectors.

Notice:

・Do not touch the waterproof seal or terminals of the connector.

・Do not damage the terminals, connector housing or inverter with converter

assembly during disconnection.

・Cover the hole where the cable was connected with tape (non-residue type) or

equivalent to prevent entry of foreign matter.

・Insulate the disconnected terminals with insulating tape.

Remove the bolt.

Disengage the clamp and disconnect the engine wire.

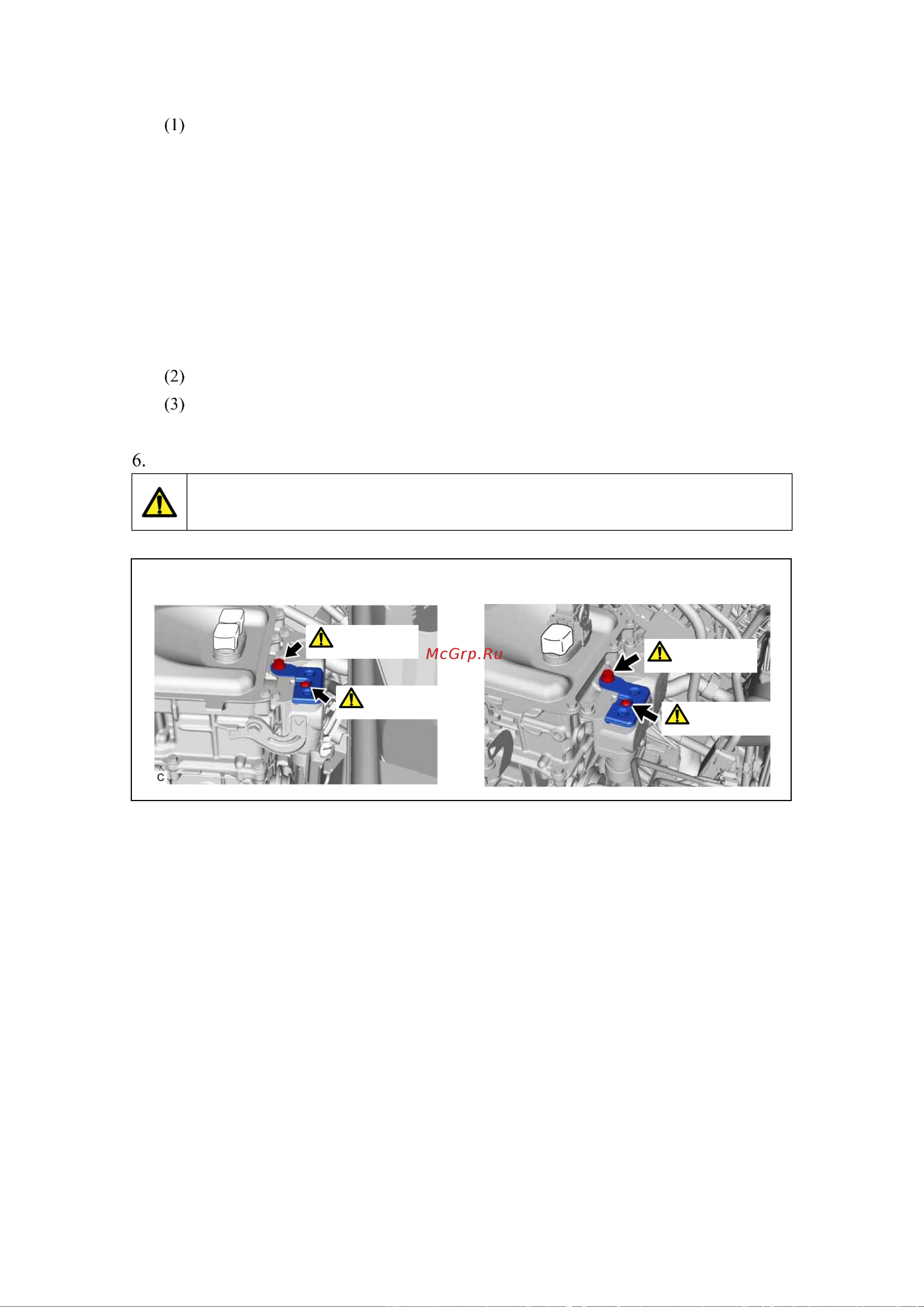

REMOVE CONNECTOR COVER ASSEMBLY

CAUTION:

Be sure to wear insulated gloves.

(1) Remove the bolt (B).

(2) for Nickel-Metal hydride battery:

a) Using a T25 "TORX" socket wrench, remove the bolt (A) and connector cover

assembly from the inverter with converter assembly.

(3) for Lithium-ion battery:

a) Using a T30 "TORX" socket wrench, remove the bolt (C) and connector cover

assembly from the inverter with converter assembly.

Notice:

・Do not touch the connector cover assembly waterproof seal.

・Do not allow any foreign matter or water to enter the inverter with converter

assembly.

(2) Bolt (A)

(1) Bolt (B)

(3) Bolt (C)

(1) Bolt (B)

for Nickel-Metal hydride battery:

for Lithium-ion battery:
