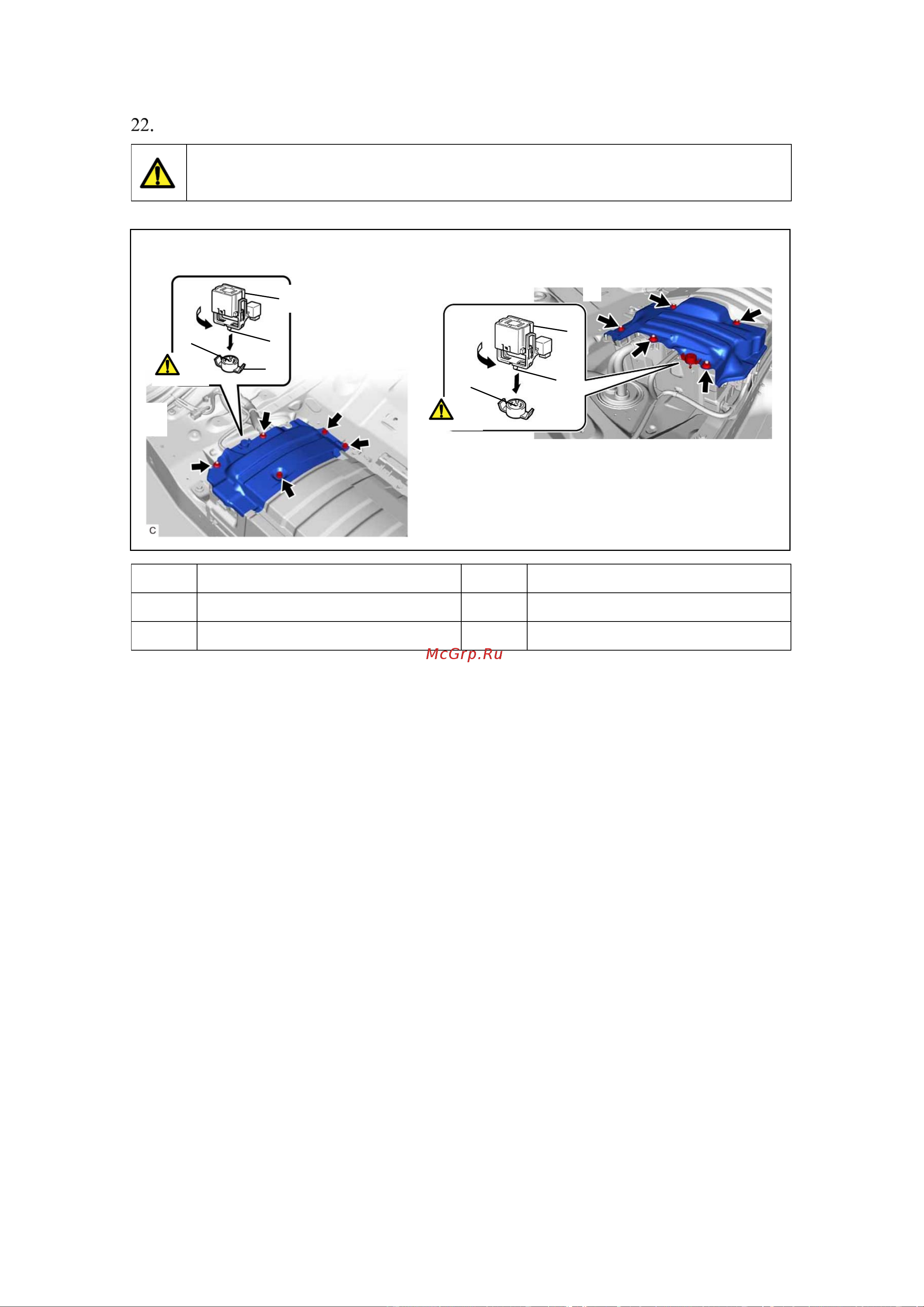

REMOVE NO. 1 HV BATTERY COVER PANEL RH

(1) Using the service plug grip, remove the battery cover lock striker.

Hint:

Insert the projection of the service plug grip and turn the button of the battery cover lock

striker counterclockwise to release the lock.

(2) for Nickel-Metal hydride battery:

a) Remove the 3 bolts, 2 nuts and No. 1 HV battery cover panel RH from the HV

battery.

(3) for Lithium-ion battery:

a) Remove the 5 nuts and HV battery upper cover panel from the HV battery.

CAUTION:

Be sure to wear insulated gloves.

Service Plug Grip

Battery Cover Lock Striker

Projection

Turn

Button

(1)

(2)

for Nickel-Metal hydride battery:

for Lithium-ion battery:

(3)

(1)
